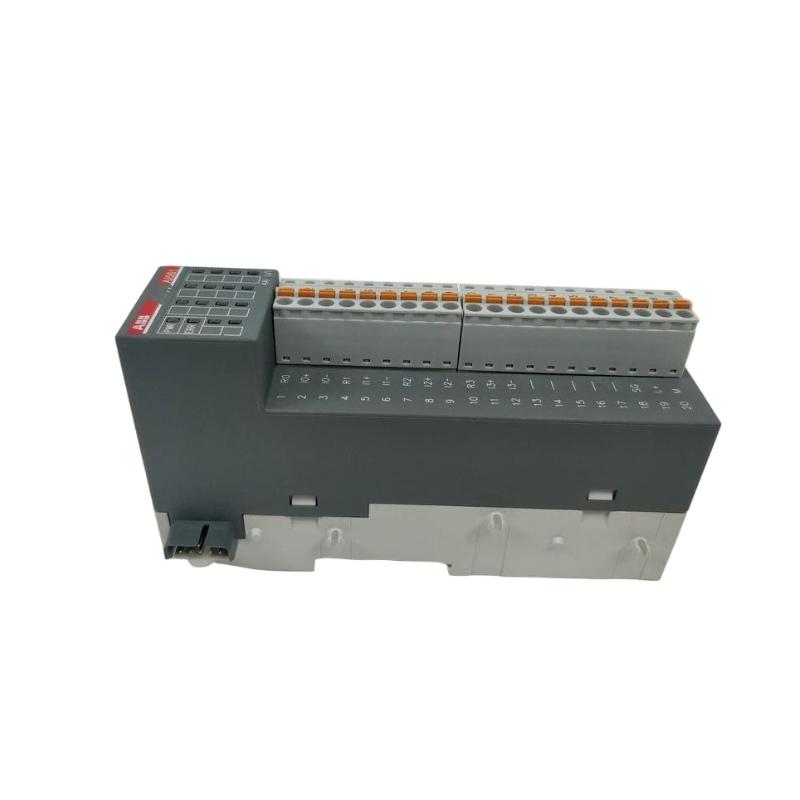

ABB AI561 1TNE968902R1101 Analog Input Module durable

Applications
The ABB AI561 is suited for a broad range of industrial applications that require accurate and reliable analog data acquisition:

• Industrial Automation – The AI561 is perfect for integrating sensors (e.g., temperature, pressure, flow) into automated control systems, enabling real-time monitoring and process control.

• Process Control – Commonly used in chemical, pharmaceutical, food processing, and other industries where precise data acquisition is essential to maintaining high-quality standards and ensuring compliance with regulations.

• Energy Management – Ideal for monitoring power consumption, energy distribution, and renewable energy systems, enabling better efficiency, optimization, and sustainability.

• Building Automation – Used for collecting data from environmental control systems, such as HVAC, lighting, and energy systems, helping to optimize building performance and energy savings.

Advantages

• High Accuracy: The AI561 offers an impressive accuracy of ±0.05% of full scale, providing precise signal measurements that are critical for effective system control.

• Flexible Input Options: With support for ±10V, 0-20mA, and 4-20mA inputs, the AI561 is highly versatile and can be easily integrated with a wide variety of industrial sensors.

• 16-Bit Resolution: The 16-bit resolution ensures fine granularity in data collection, allowing for more accurate monitoring and control of processes.

• Wide Temperature Range: With an operating temperature range of -20°C to 60°C, the AI561 is designed to perform reliably in challenging industrial environments, making it suitable for use in harsh conditions.

• Easy Integration: The AI561 supports communication protocols such as Modbus RTU, Profibus DP, and Ethernet/IP, making it highly compatible with ABB control systems and third-party industrial automation systems.

• Compact Design: With its small dimensions (144mm x 130mm x 30mm) and DIN rail mountable form factor, the AI561 fits easily into standard industrial panels without taking up excessive space.

Technical FAQs

1. What is the input range for the ABB AI561?
   The ABB AI561 supports input ranges of ±10V, 0-20mA, and 4-20mA, providing flexibility for various industrial sensors.

2. How many channels does the ABB AI561 have?
   The ABB AI561 has 8 differential input channels, offering multiple signal acquisition points in one module.

3. What is the resolution of the ABB AI561?
   The ABB AI561 offers 16-bit resolution, providing high-precision data collection for effective system control.

4. What is the accuracy of the ABB AI561?
   The ABB AI561 delivers an accuracy of ±0.05% of full scale, ensuring reliable and precise measurements for your applications.

5. How is the ABB AI561 mounted?
   The ABB AI561 is designed for easy mounting on a DIN rail, ensuring simple installation in standard industrial control panels.

6. What communication protocols does the ABB AI561 support?
   The AI561 supports Modbus RTU, Profibus DP, and Ethernet/IP protocols, ensuring seamless integration with various industrial control systems.

7. What is the operating temperature range for the ABB AI561?
   The ABB AI561 operates in temperatures from -20°C to 60°C, making it suitable for use in a wide range of industrial environments.

8. What are the typical applications of the ABB AI561?
   The ABB AI561 is ideal for industrial automation, process control, energy management, and building automation applications.

9. What is the power consumption of the ABB AI561?
   The ABB AI561 has a power consumption of 2.5W, offering energy-efficient performance.

10. Can the ABB AI561 be used in hazardous environments?
    The ABB AI561 is designed for use in standard industrial environments. For hazardous environments, additional protective enclosures should be used to ensure safety.
