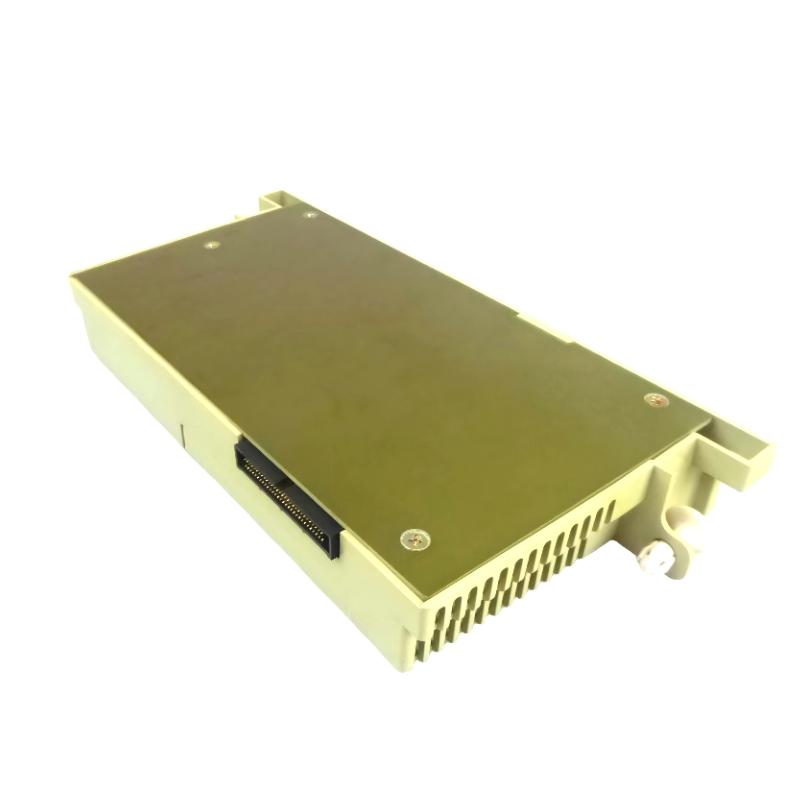

ABB 07 PS 60 R2 Power Supply Module

Introduction

The ABB 07 PS 60 R2 is a highly efficient power supply module designed for industrial automation and control systems. This module provides stable 24 VDC output, ensuring reliable power delivery to control systems, sensors, actuators, and other crucial devices in various industrial applications. Engineered for high performance, the 07 PS 60 R2 is built to withstand harsh industrial environments while maintaining maximum efficiency and safety. It is particularly well-suited for applications requiring robust and continuous power supply to maintain seamless system operation in critical sectors such as manufacturing, process control, and energy management.

Technical Specifications

Specification	Details
Model	07 PS 60 R2
Module Type	Power Supply Module
Input Voltage	380-480 VAC
Output Voltage	24 VDC
Output Current	60 A
Size (W x H x D)	180 x 120 x 75 mm
Weight	1.8 kg
Mounting Type	DIN Rail
Efficiency	> 90%
Operating Temperature	-20°C to +60°C
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Input Voltage	Output Voltage	Output Current
ABB 07 PS 60 R3	Power Supply Module	380-480 VAC	24 VDC	60 A
ABB 07 PS 50 R2	Power Supply Module	380-480 VAC	24 VDC	50 A
ABB 07 PS 70 R2	Power Supply Module	380-480 VAC	24 VDC	70 A

Popular ABB Models

Model	Module Type	Input Voltage	Output Voltage	Output Current
ABB 07 PS 30 R2	Power Supply Module	380-480 VAC	24 VDC	30 A
ABB 07 PS 60 R2	Power Supply Module	380-480 VAC	24 VDC	60 A
ABB 07 PS 80 R2	Power Supply Module	380-480 VAC	24 VDC	80 A

Applications

Industrial Automation: The ABB 07 PS 60 R2 is widely used in factory automation, ensuring reliable power delivery to control systems, robotics, actuators, and sensors that are crucial for automated production processes.
Process Control: In industries like chemicals, pharmaceuticals, and food processing, this power supply module provides consistent power to process control systems, enhancing overall system stability and reliability.
Energy Management: It is used in energy generation and distribution systems, ensuring uninterrupted power supply to critical components that regulate and manage power systems.
Telecommunications: The module plays a crucial role in telecom networks by ensuring a stable power supply to essential equipment, minimizing downtime and ensuring communication continuity.
Building Automation: It is utilized in building automation systems for powering HVAC systems, lighting, and security infrastructure, contributing to efficient building management and energy savings.

Advantages

High Efficiency: With an efficiency greater than 90%, the ABB 07 PS 60 R2 minimizes energy loss, optimizing operational costs and enhancing energy savings.
Wide Voltage Range: The module supports an input voltage range of 380-480 VAC, making it versatile for use in various global electrical configurations.
Robust Protection Features: It comes with built-in protections for overload, short-circuit, and overheating, safeguarding both the power supply module and connected equipment.
Compact and Durable: Designed for easy installation on DIN rails, the 07 PS 60 R2 offers a compact and space-efficient solution. Its rugged design ensures long-term reliability even in harsh industrial conditions.
Global Certifications: The module complies with CE, UL, and RoHS certifications, ensuring that it meets the highest global standards for quality, safety, and environmental compliance.

Technical FAQs

What is the input voltage for the ABB 07 PS 60 R2 power supply module?
The input voltage is 380-480 VAC.
What is the output voltage provided by the ABB 07 PS 60 R2 module?
The output voltage is 24 VDC.
What is the output current capacity of the ABB 07 PS 60 R2?
The output current capacity is 60 A.
What are the dimensions of the ABB 07 PS 60 R2 module?
The module measures 180 x 120 x 75 mm.
What is the weight of the ABB 07 PS 60 R2 module?
The weight is 1.8 kg.
What is the efficiency of the ABB 07 PS 60 R2 module?
The module has an efficiency greater than 90%.
What is the operating temperature range for the ABB 07 PS 60 R2 module?
The module operates within a temperature range of -20°C to +60°C.
How is the ABB 07 PS 60 R2 module mounted?
The module is designed for DIN rail mounting, ensuring easy installation in industrial control panels.
Is the ABB 07 PS 60 R2 module certified for global standards?
Yes, it is CE, UL, and RoHS certified, ensuring compliance with international safety, quality, and environmental standards.
Can the ABB 07 PS 60 R2 module be used in process control applications?
Yes, it is ideal for use in process control applications, providing reliable and consistent power for critical systems in industries such as chemicals, pharmaceuticals, and food processing.
