Introduction

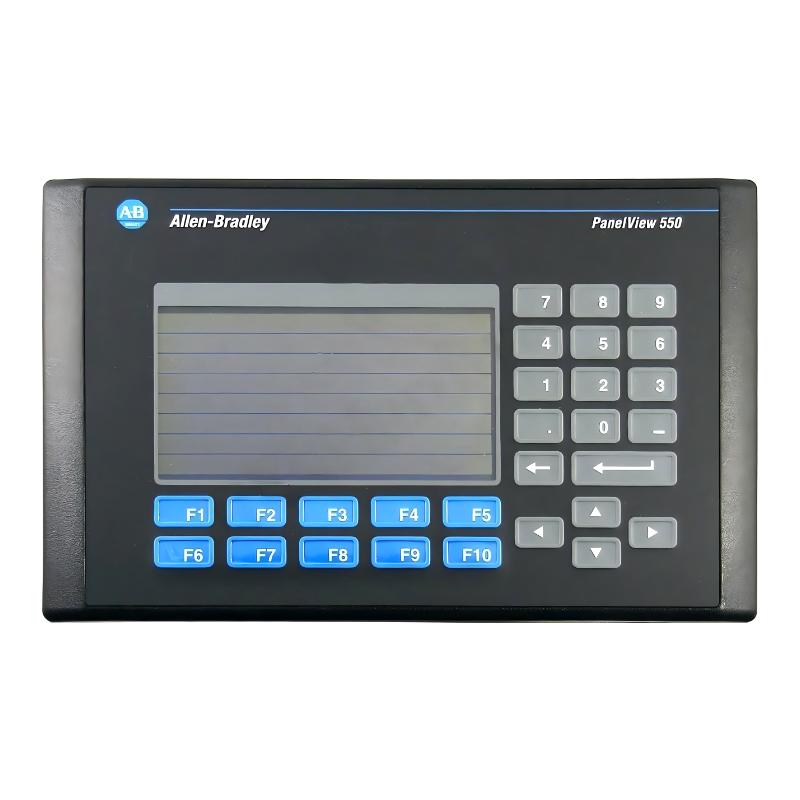

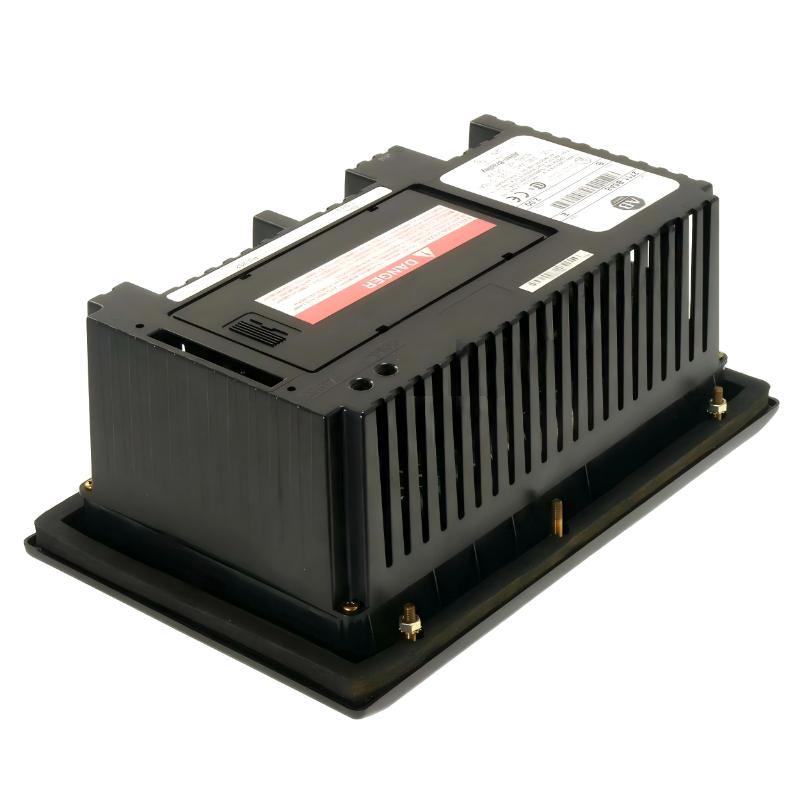

The Allen Bradley 2711-B5A8 PanelView 550 Operator Interface is a compact and versatile HMI solution tailored for demanding industrial environments. Its rugged design and reliable performance enable operators to monitor and control processes efficiently. The interface is engineered for ease of use while providing advanced communication capabilities with Rockwell Automation controllers. With its small footprint and high functionality, it serves as an ideal choice for both new installations and upgrades in automation systems.

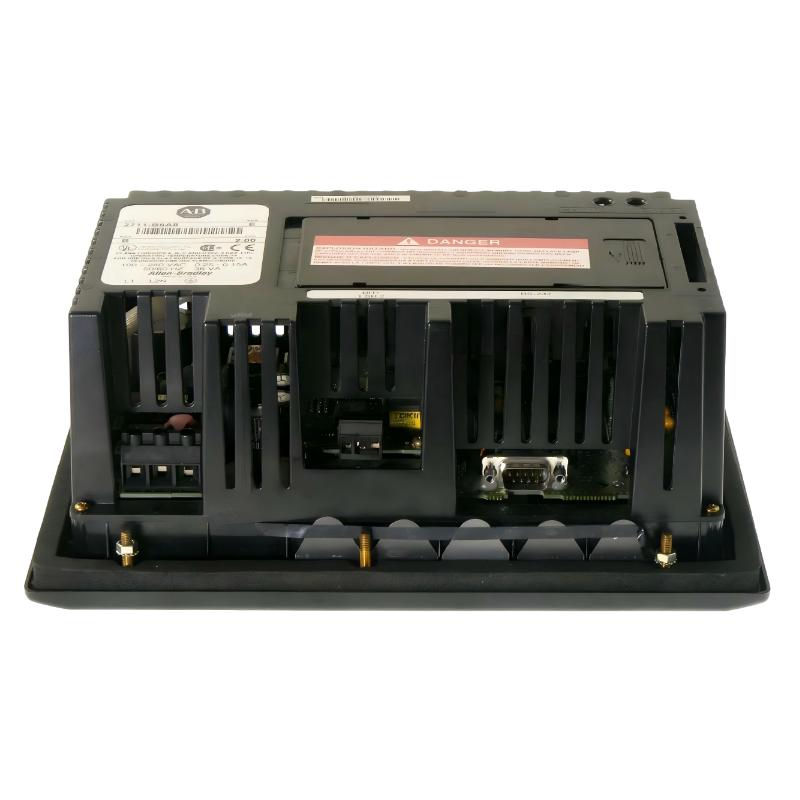

Technical Specifications

Parameter	Specification
Dimensions (W × H × D)	266 × 106 × 167 mm
Weight	1.2 kg (2.65 lb)
Display	5.7-inch STN LCD, 320 × 234 resolution
Touch Interface	Resistive touch screen
Operating Voltage	24 VDC
Power Consumption	10 W max
Communication Interfaces	RS-232, RS-485, Ethernet/IP
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Protection Rating	NEMA 4X (front panel)
Mounting	Panel mount
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711-B5A8 PanelView 550 is widely deployed in industrial automation environments, providing operators with intuitive access to machine control and monitoring systems. Typical applications include:

Assembly line monitoring and control
Packaging machinery operation
Process control in manufacturing plants
Data visualization for industrial SCADA systems
Human-machine interface (HMI) for robotic systems

Advantages

Compact yet powerful: The 2711-B5A8 delivers a high-performance interface in a small footprint.
Enhanced visualization: Crisp display ensures clear monitoring of process data.
Robust reliability: Engineered to withstand industrial environments with consistent performance.
Seamless integration: Compatible with Rockwell Automation controllers and standard industrial protocols.
User-centric design: Intuitive layout reduces operator training time and enhances workflow efficiency.

Technical FAQs

Does the module support hot swapping?
No, the 2711-B5A8 does not support hot swapping; power must be off during installation or replacement.
Which communication protocols are supported?
Supports DF1, DH-485, and Ethernet/IP for seamless integration with Allen Bradley PLCs.
How is data integrity maintained during operation?
The module includes built-in error-checking mechanisms and buffered memory to prevent data loss.
Can the module operate in redundant architectures?
Redundancy is not directly supported; external controller redundancy is recommended.
What diagnostic functions are available?
Provides status indicators, alarm logging, and error codes to facilitate rapid troubleshooting.
Is remote firmware updating supported?
Firmware updates require local access via RS-232 or Ethernet connection.
How does the module handle communication interruptions?
It retains the last known state and reconnects automatically when communication resumes.
What isolation features are integrated?
Includes electrical isolation between communication ports and operator interface circuits.
Can it be integrated with legacy PLC systems?
Yes, it supports older Allen Bradley PLC protocols such as DH-485 and DF1.
What environmental conditions are recommended for continuous operation?
Operate within 0°C to 50°C and 10–90% non-condensing humidity for optimal reliability.
