Product Overview

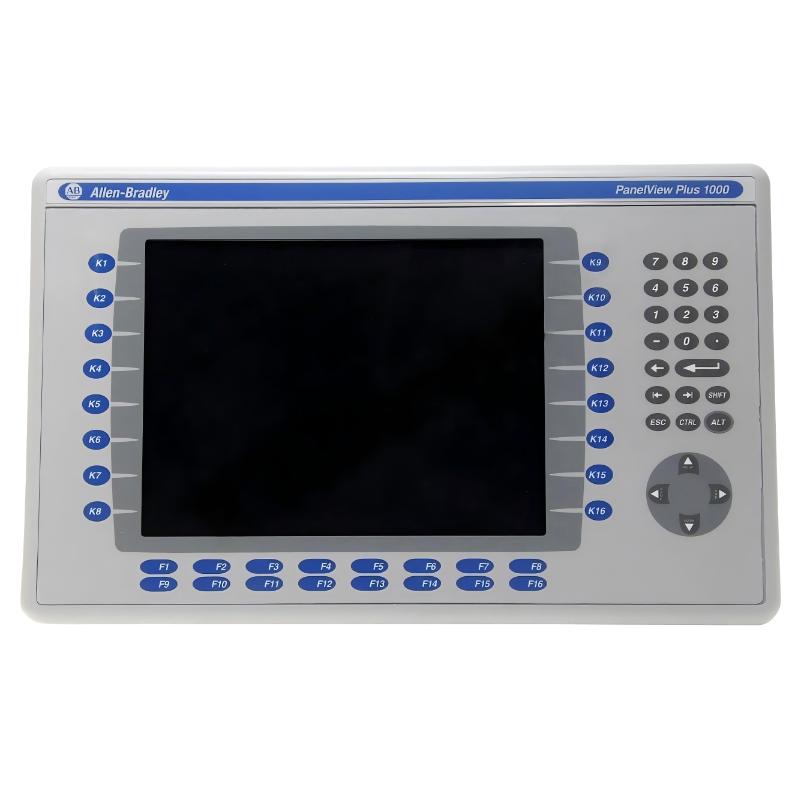

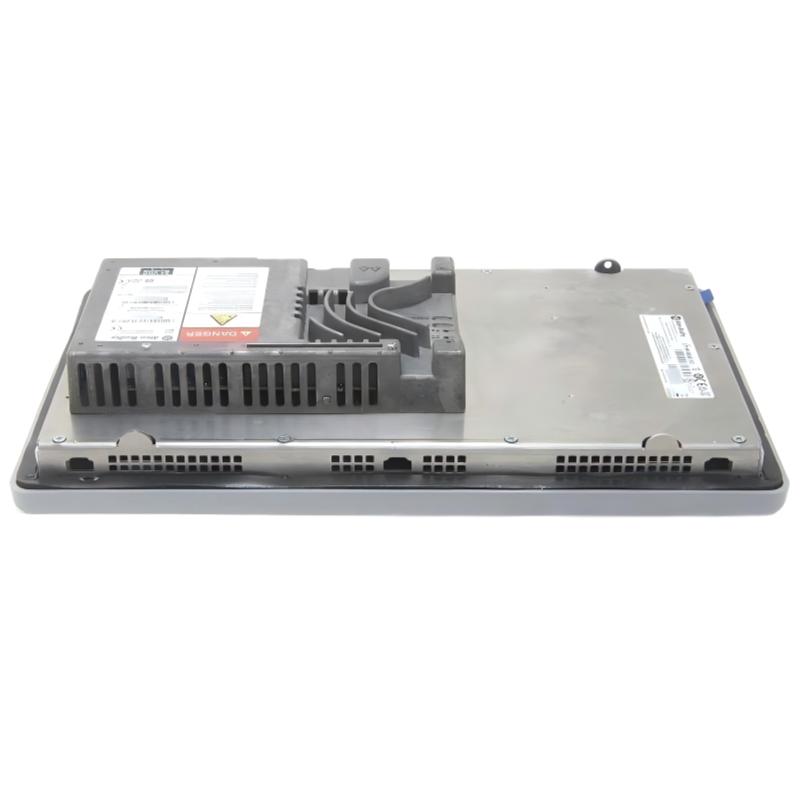

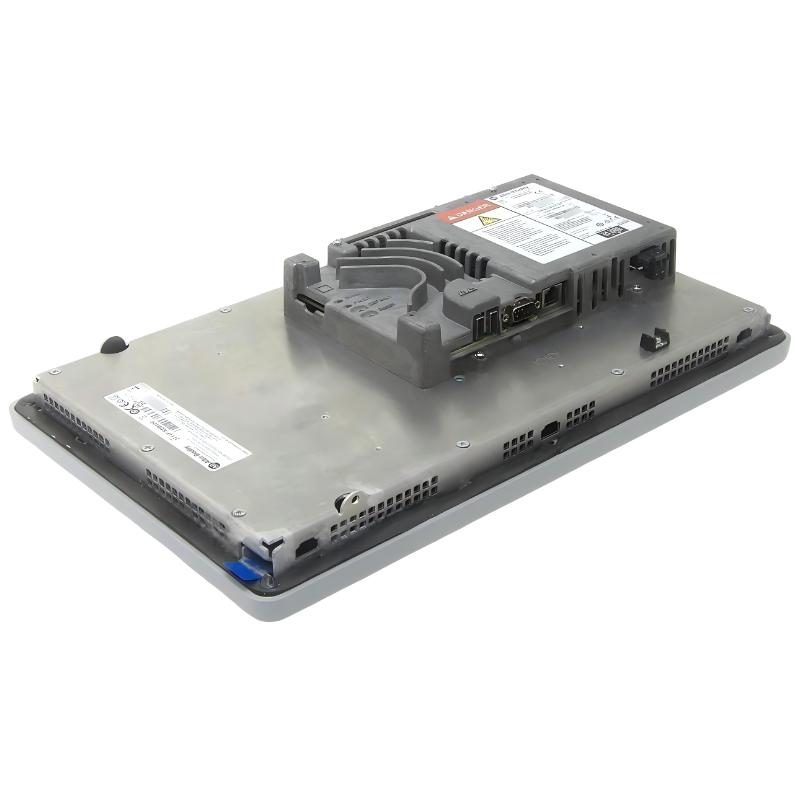

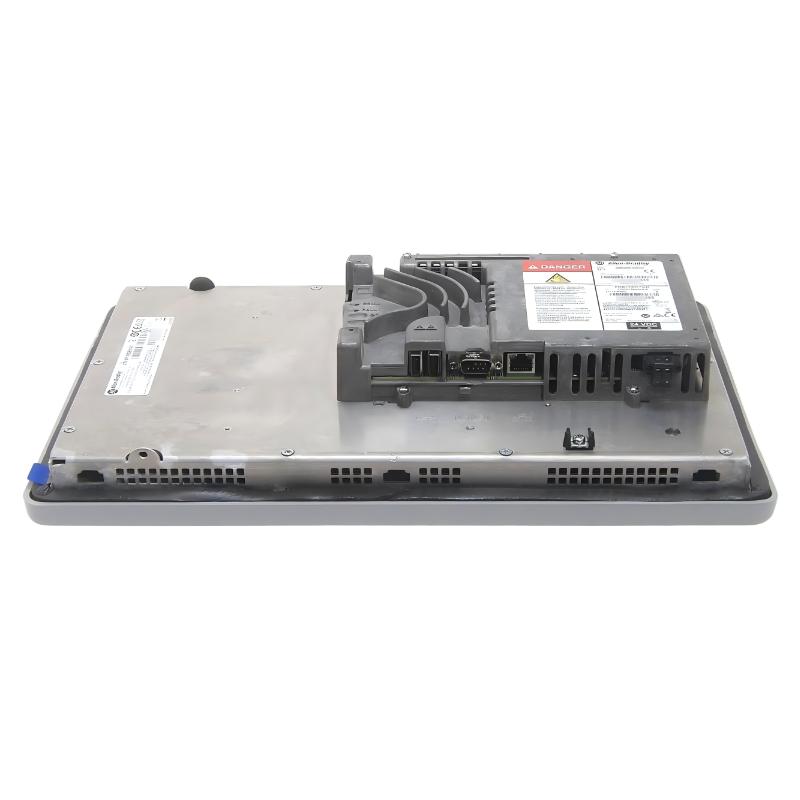

The Allen Bradley 2711P-B10C4D9 PanelView Plus 6 1000 Operator Interface offers a modern, high-performance HMI solution for industrial applications. Its large, high-resolution touchscreen enables operators to interact with complex processes efficiently. With rugged construction and advanced connectivity options, this HMI improves operational visibility, streamlines machine control, and supports effective alarm and event management for enhanced productivity.

Technical Specifications

Parameter	Specification
Product Model	2711P-B10C4D9
Product Type	Operator Interface
Display Size	10.4-inch Color TFT
Display Resolution	1024 × 768 Pixels
Input Method	Touchscreen
Dimensions (W × H × D)	399 × 55 × 248 mm
Weight	2.8 kg (6.17 lb)
Input Voltage	24 VDC
Power Consumption	28 W Max
Communication Interfaces	Ethernet, USB, Serial (RS-232/RS-485)
Memory Type	Non-volatile Flash Memory
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +70°C
Relative Humidity	5% to 95% Non-condensing
Mounting Method	Panel Mount
Front Panel Protection	NEMA 4X / IP65
Certifications	UL, cUL, CE

Applications

The Allen Bradley 2711P-B10C4D9 PanelView Plus 6 1000 is designed for medium-to-large industrial automation systems where high-performance visualization and reliable operator control are essential. Typical applications include:

Automated production lines
Packaging and material handling systems
Food and beverage processing
Pharmaceutical manufacturing equipment
Water and wastewater treatment plants
Energy and utilities monitoring
OEM machinery operation
Supervisory control and data acquisition (SCADA) nodes

Advantages

High-resolution touchscreen: Provides clear and responsive operator interaction.
Compact, panel-friendly design: Efficiently fits into industrial enclosures.
Enhanced process visualization: Supports detailed monitoring of complex operations.
Seamless Allen Bradley integration: Works with ControlLogix, CompactLogix, and MicroLogix controllers.
Alarm and event management: Provides real-time alarm visibility and acknowledgment.
User security control: Restricts access to critical functions based on user permissions.
Rugged industrial design: Engineered for reliable operation in harsh conditions.

Technical FAQs

Which controllers are compatible?
Designed to integrate with Allen Bradley ControlLogix, CompactLogix, and MicroLogix platforms.
Can multiple screens be created?
Yes, the terminal supports multiple screens for alarms, trends, and process visualization.
Does the device retain data on power loss?
Yes, application and configuration data are preserved using non-volatile memory.
How are alarms managed?
Alarms are displayed visually and can be acknowledged by operators directly on the touchscreen.
Can operators modify process setpoints?
Authorized users can adjust process values and enter parameters via the touchscreen.
Does the interface support real-time data monitoring?
Yes, dynamic tags display live process and machine data.
Are communication diagnostics provided?
Yes, status indicators and diagnostic messages help identify network or controller issues.
Can user access levels be configured?
Yes, security settings can restrict access to critical HMI functions.
Is firmware upgrade possible in the field?
Yes, firmware updates can be performed using standard maintenance procedures.
Is continuous industrial operation supported?
Yes, the PanelView Plus 6 1000 is designed for long-term use in industrial environments.
