Introduction

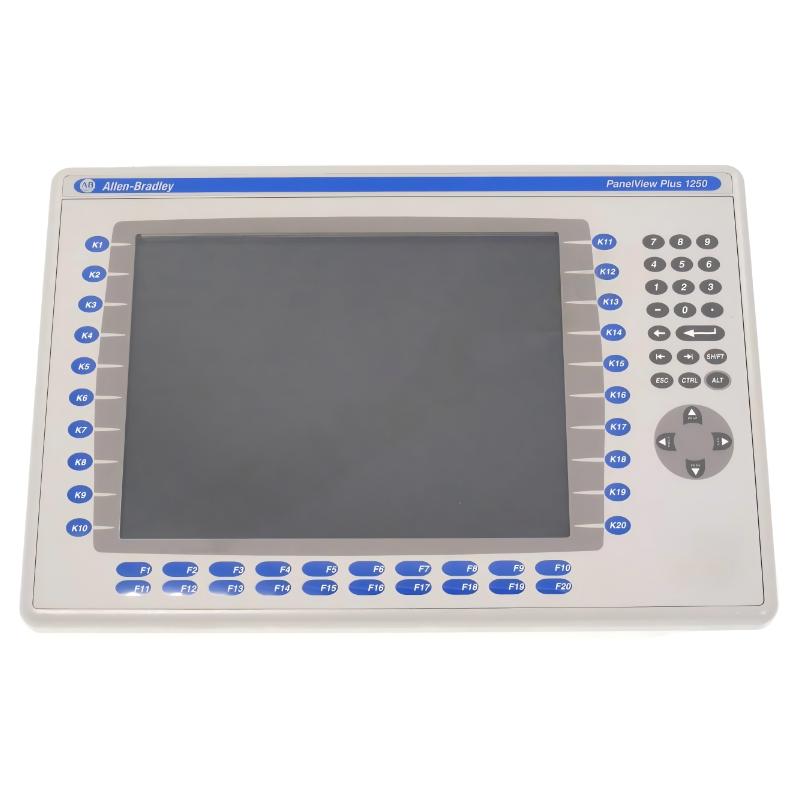

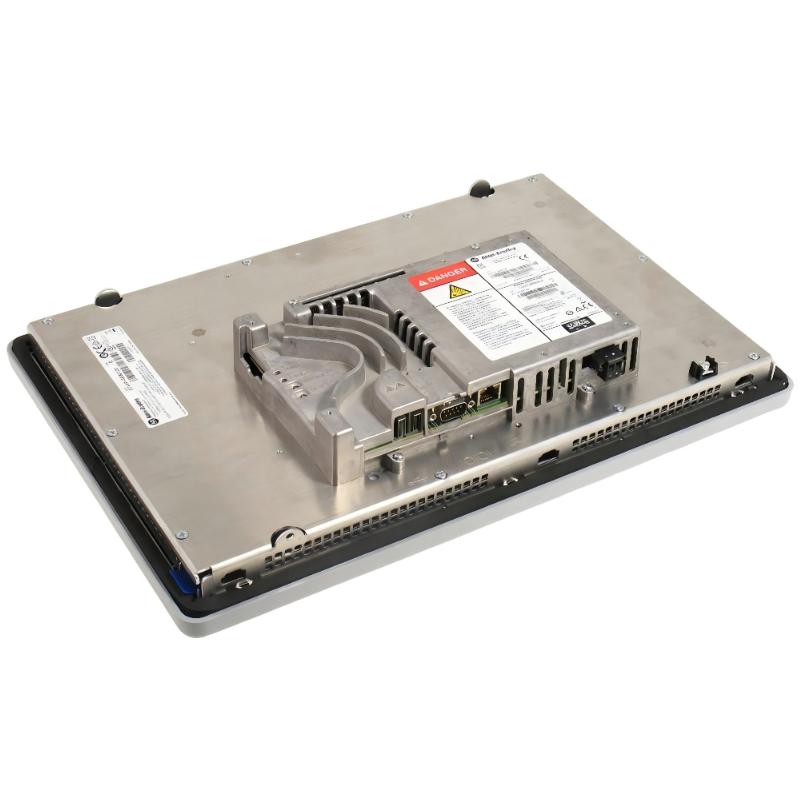

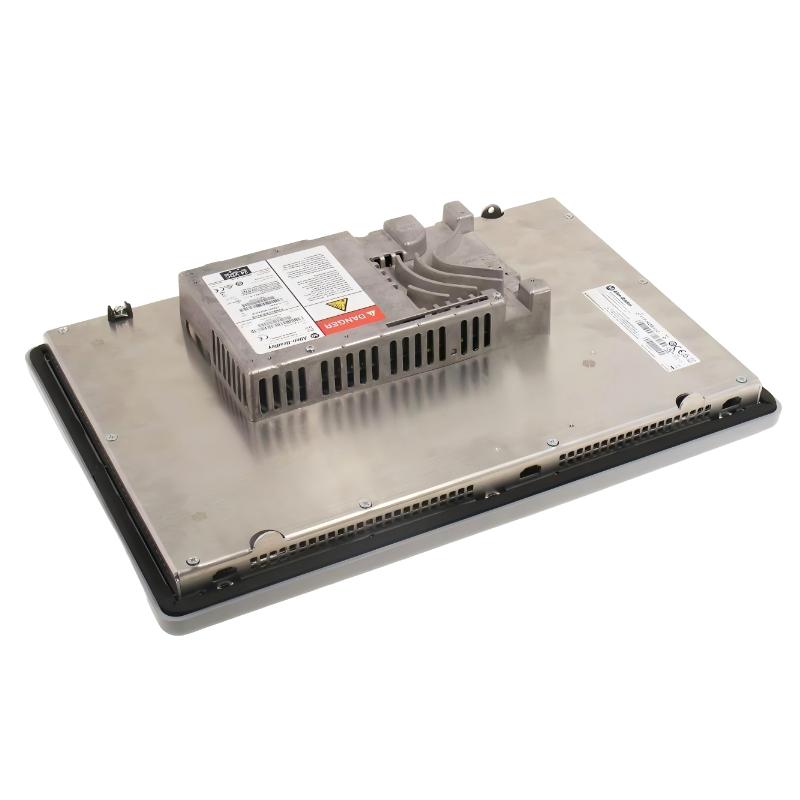

The Allen Bradley 2711P-B12C4D8 PanelView Plus 6 1250 Operator Interface delivers a powerful combination of large-screen visualization and reliable industrial control. Designed for complex automation environments, it enhances operator awareness and system efficiency through clear process visualization and responsive interaction. Its dual-input design, rugged construction, and strong integration with Rockwell Automation systems make it a trusted solution for mission-critical industrial applications.

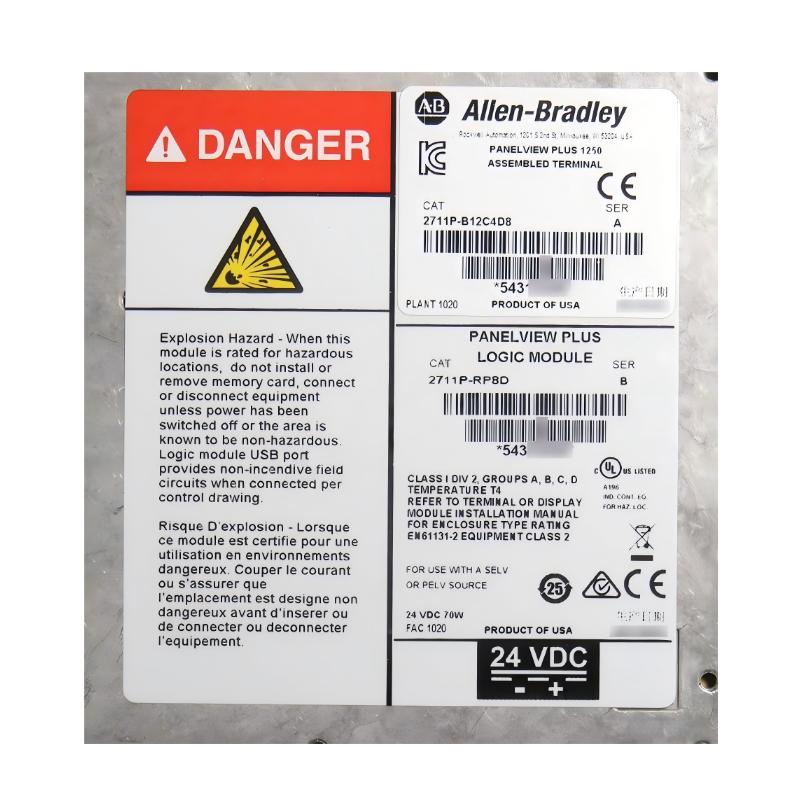

Technical Specifications

Parameter	Specification
Product Model	2711P-B12C4D8
Product Series	PanelView Plus 6
Display Size	12.1-inch TFT Color Display
Resolution	800 × 600 pixels
Input Method	Touchscreen + Keypad
Dimensions (W × H × D)	416 × 282 × 55 mm
Weight	2.8 kg (6.17 lb)
Input Voltage	18–32 VDC
Power Consumption	Approx. 70 W max
Communication Interfaces	Ethernet, RS-232, USB
Memory	512 MB RAM / 512 MB Flash
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C
Humidity	5%–95% non-condensing
Mounting Method	Panel Mount
Protection Rating	IP65 / NEMA 4X (front)
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711P-B12C4D8 PanelView Plus 6 1250 is engineered for high-demand industrial visualization and control tasks where a large HMI interface is required for complex process management.

Typical applications include:

Large-scale manufacturing automation systems
Process control in chemical and pharmaceutical industries
Packaging and bottling production lines
Power generation and energy monitoring systems
Water treatment and distribution networks
Automotive assembly systems
SCADA supervisory control environments
OEM machinery with advanced operator visualization needs

Advantages

Large high-resolution display: Enhances visibility of complex industrial processes
Dual input flexibility: Supports both touchscreen and keypad operation for critical environments
Strong system integration: Seamless compatibility with Allen Bradley PLC platforms
Efficient operator workflow: Improves response time and reduces operational errors
Robust industrial design: Built for continuous operation in demanding environments
Advanced alarm handling: Real-time alarm display and acknowledgment capabilities
Reliable long-term operation: Designed for stable performance in 24/7 production systems

Technical FAQs

Which controllers are compatible with this model?
It supports Allen Bradley ControlLogix, CompactLogix, and MicroLogix families.
Does it support both touch and keypad input?
Yes, it provides dual-input operation for improved usability in industrial environments.
Can the terminal display real-time process data?
Yes, it supports dynamic tag-based visualization of live process variables.
Is application memory retained during power loss?
Yes, all application and configuration data are stored in non-volatile memory.
Can multiple screens be configured in one application?
Yes, multiple operator screens, alarms, and trend pages are supported.
How are alarms managed?
Alarms are displayed on-screen and can be acknowledged by authorized operators.
Does it support user access control?
Yes, multi-level security settings restrict access to sensitive operations.
Can it be used in SCADA systems?
Yes, it is widely used as an HMI node in SCADA architectures.
Is remote communication supported?
Yes, Ethernet and serial communication enable integration with control networks.
Is it suitable for continuous industrial operation?
Yes, it is designed for long-term 24/7 industrial use under recommended conditions.
