Introduction

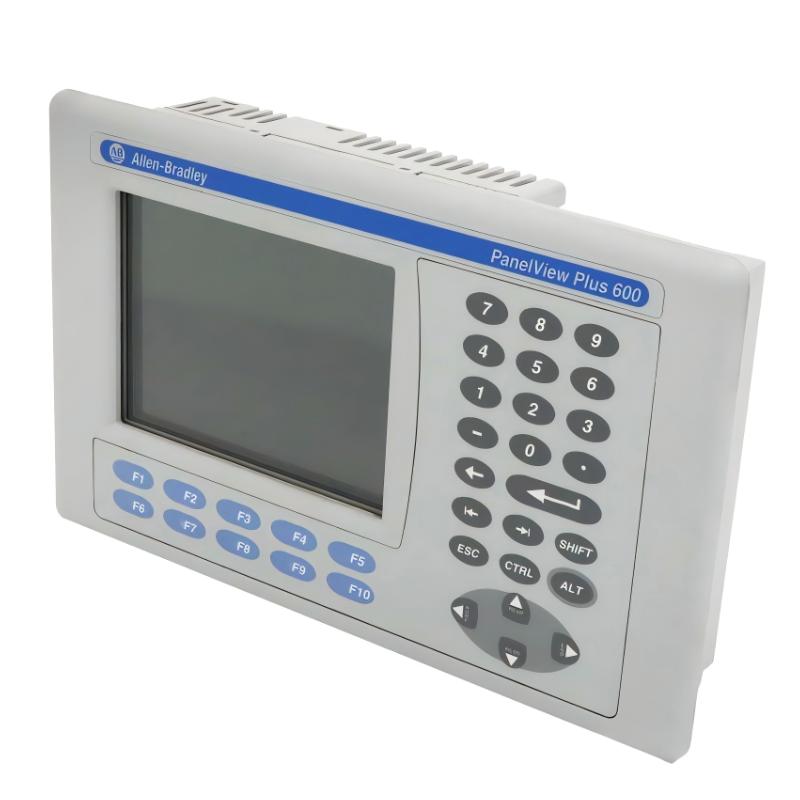

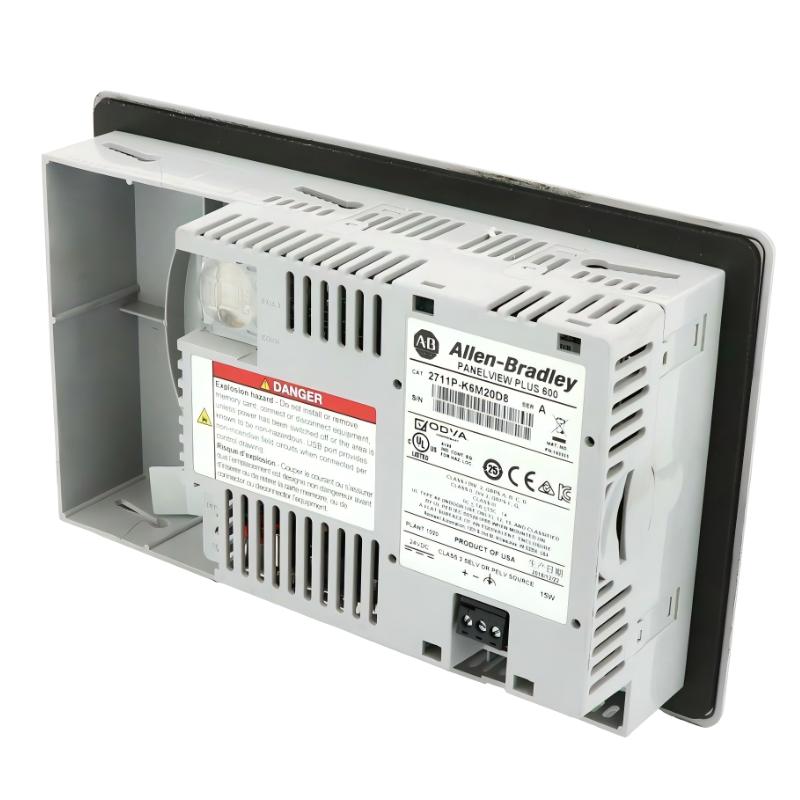

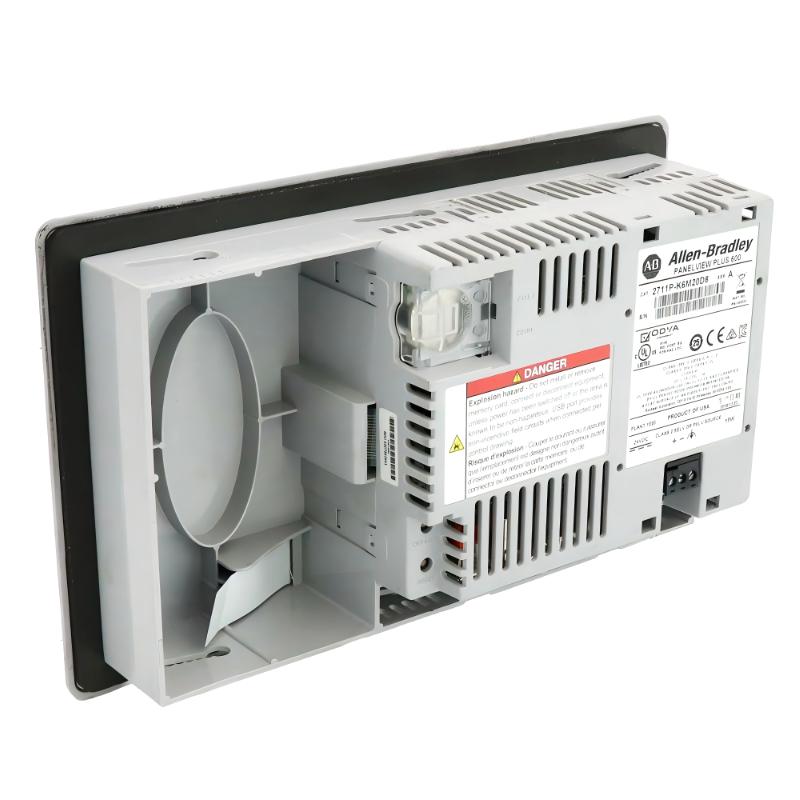

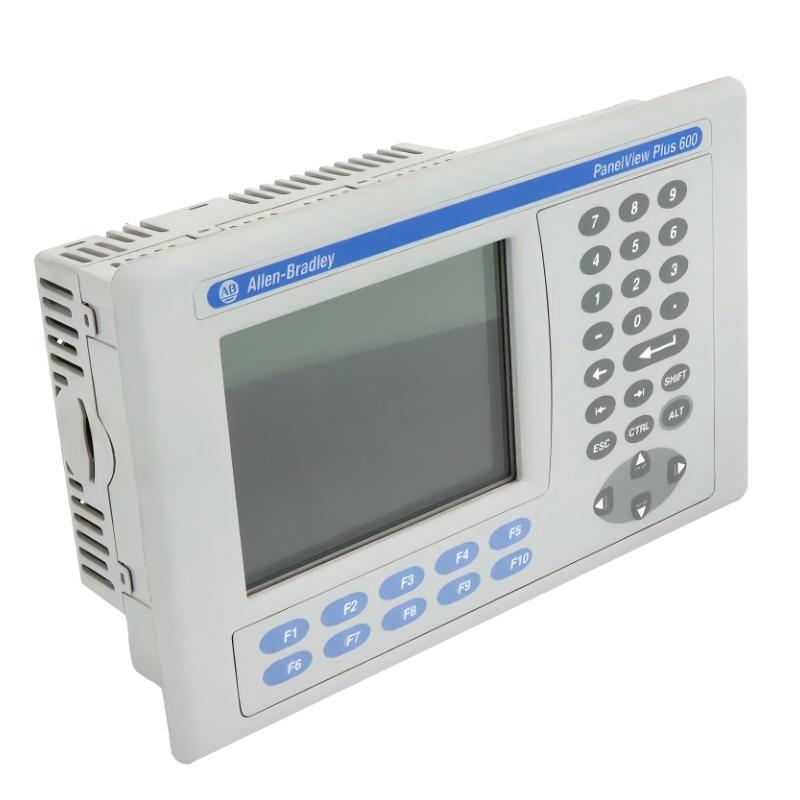

The Allen Bradley 2711P-B6C5A8 PanelView Plus 6 600 Operator Interface delivers a compact yet powerful solution for modern industrial automation. Its responsive touchscreen, durable design, and seamless PLC integration allow operators to interact efficiently with industrial processes. The interface supports real-time visualization, alarm management, and intuitive navigation, improving overall operational efficiency while reducing downtime.

Technical Specifications

Parameter	Specification
Product Model	2711P-B6C5A8
Product Series	PanelView Plus 6 600
Display Size	6-inch Color TFT Display
Display Resolution	640 × 480 Pixels
Input Method	Touchscreen
Dimensions (W × H × D)	226 × 167 × 68 mm
Weight	0.728 kg (1.61 lb)
Input Voltage	24 VDC
Power Consumption	15 W Max
Communication Interfaces	Ethernet, USB, RS-232/RS-485
Memory	Non-volatile Flash Memory
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C
Relative Humidity	5% to 95% Non-condensing
Mounting Method	Panel Mount
Front Panel Protection	IP65 / NEMA 4X
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711P-B6C5A8 PanelView Plus 6 600 Operator Interface is designed for compact industrial automation systems requiring reliable visualization and responsive operator control. Typical applications include:

Small-to-medium manufacturing lines
Packaging and material handling equipment
OEM machinery interfaces
Laboratory automation and monitoring
Discrete manufacturing processes
Water and wastewater treatment equipment
SCADA operator terminals
Machine diagnostics and alarm monitoring

Advantages

Compact and efficient design: Fits into smaller panels without sacrificing usability
Responsive touchscreen: Ensures accurate operator input and quick interaction
Reliable industrial performance: Engineered for consistent operation in harsh environments
Seamless controller integration: Compatible with ControlLogix, CompactLogix, and MicroLogix systems
Enhanced alarm management: Displays and logs alarms for improved process oversight
User-friendly interface: Simplifies operation and reduces training requirements
Rugged construction: Built to withstand vibration, dust, and industrial conditions

Technical FAQs

Which controllers are compatible?
Supports Allen Bradley ControlLogix, CompactLogix, and MicroLogix PLCs.
Can multiple screens be configured?
Yes, users can configure several operator screens with trends, alarms, and process visualization.
Does it retain application data on power loss?
Yes, non-volatile memory ensures all data is preserved.
How are alarms handled?
Alarms are displayed on-screen and can be acknowledged by operators.
Can operators modify process setpoints?
Authorized users can input values and adjust parameters directly via the touchscreen.
Does it support real-time monitoring?
Yes, dynamic tags allow live process and machine monitoring.
Are communication diagnostics available?
Yes, network and controller communication status is displayed for troubleshooting.
Is user access control supported?
Yes, security levels can be set to restrict access to sensitive functions.
Can firmware be updated on-site?
Yes, field firmware updates are supported using standard Allen Bradley procedures.
Is it suitable for continuous operation?
Yes, designed for reliable 24/7 industrial use under recommended conditions.
