Introduction

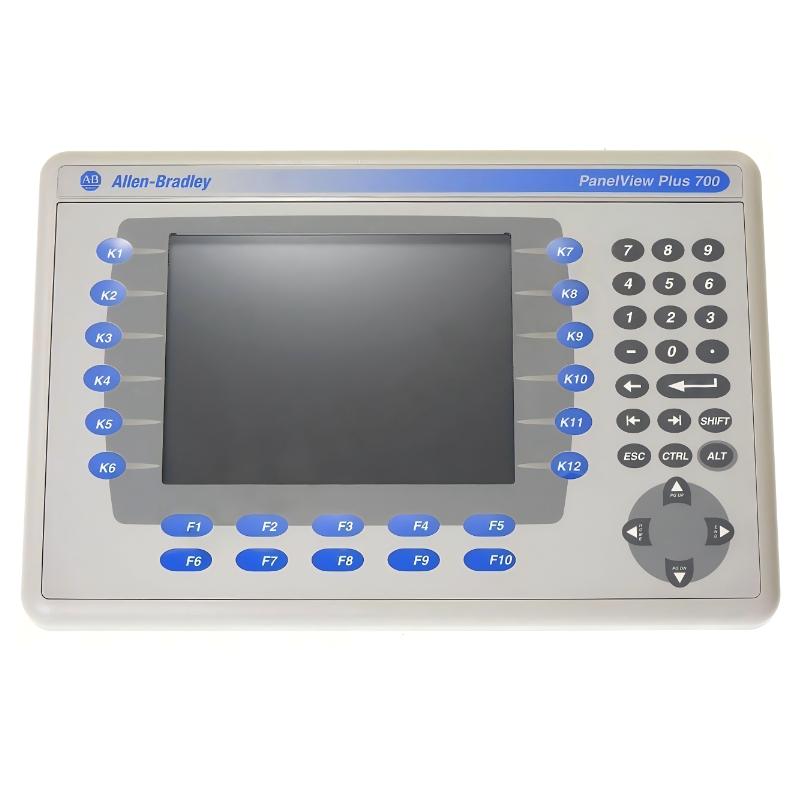

The Allen Bradley 2711P-B7C4A8 PanelView Plus 6 700 Operator Interface delivers dependable HMI performance for mid-range industrial automation applications. Its dual-input design, combining touchscreen and keypad functionality, ensures flexible and efficient operator control. With strong integration into Rockwell Automation systems, it provides clear process visibility, responsive interaction, and robust alarm handling, making it a trusted solution for modern and legacy control environments.

Technical Specifications

Technical Parameter	Specification
Product Model	2711P-B7C4A8
Product Series	PanelView Plus 6 700
Display Size	6.5-inch Color TFT Display
Display Resolution	640 × 480 Pixels
Input Method	Touchscreen + Keypad
Dimensions (W × H × D)	290 × 193 × 55 mm
Weight	1.8 kg (3.97 lb)
Input Voltage	18–32 VDC
Power Consumption	Approx. 70 W

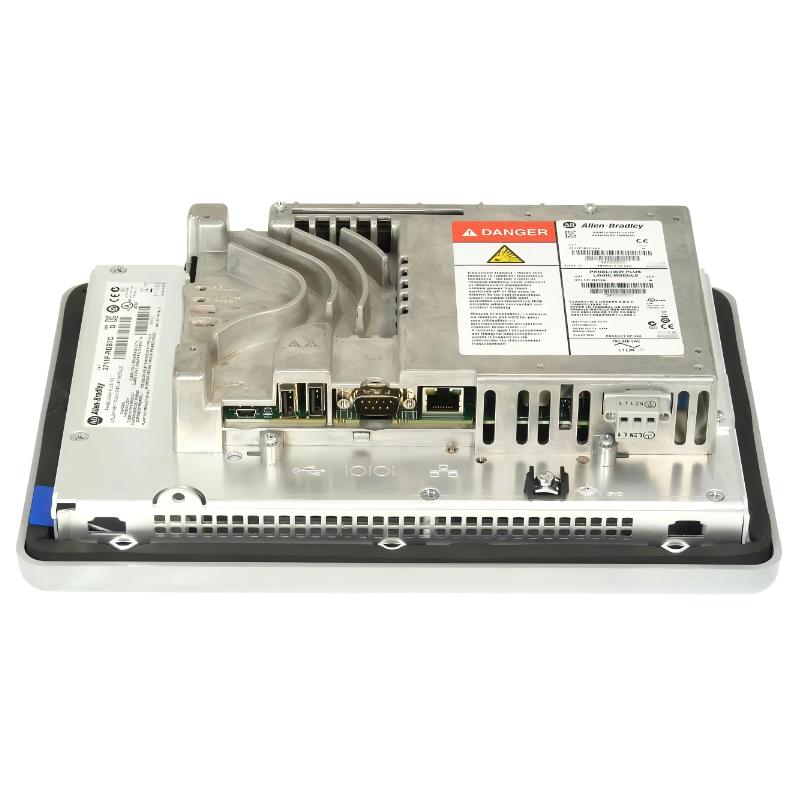

Communication Interfaces	Ethernet, RS-232, USB
Memory	512 MB RAM / 512 MB Flash
Operating Temperature	0°C to 55°C
Storage Temperature	-25°C to 70°C
Relative Humidity	5% to 95% Non-condensing
Mounting Method	Panel Mount
Protection Rating	IP65 / NEMA 4X (front)
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711P-B7C4A8 PanelView Plus 6 700 Operator Interface is designed for industrial automation systems that require reliable visualization, machine control, and operator interaction in a compact HMI form factor.

Typical applications include:

Packaging and assembly automation
Conveyor and material handling systems
OEM machinery control panels
Food and beverage production lines
Water and wastewater treatment systems
Pharmaceutical process equipment
Discrete manufacturing operations
SCADA monitoring terminals

Advantages

Dual-input flexibility: Combines touchscreen and keypad operation for versatile control
Industrial-grade visualization: Clear display optimized for real-time process monitoring
Stable communication architecture: Supports Ethernet and serial-based industrial networking
Compact panel design: Fits efficiently into space-constrained control cabinets
Reliable 24/7 operation: Built for continuous industrial environments
Enhanced alarm handling: Real-time alarm display, acknowledgment, and logging
Easy system integration: Seamlessly works with Allen Bradley PLC ecosystems

Technical FAQs

Which PLC systems are compatible?
It is commonly used with Allen Bradley ControlLogix, CompactLogix, and MicroLogix controllers via Ethernet/IP or serial communication.
Does it support both touchscreen and keypad input?
Yes, it features a hybrid input system combining touchscreen and physical keypad controls.
Can it display live process data?
Yes, it supports real-time tag-based data visualization for industrial processes.
Is application memory retained after power loss?
Yes, it uses non-volatile memory to retain configuration and runtime data.
Can multiple screens be configured in one project?
Yes, multiple operator screens, alarm pages, and trend displays are supported.
How are system alarms handled?
Alarms can be displayed, acknowledged, and logged directly on the interface.
Does it include communication diagnostics?
Yes, built-in diagnostics help identify network and controller communication issues.
Can user permissions be configured?
Yes, multi-level security access can be assigned to different operators.
Is firmware upgrade supported?
Yes, firmware updates are performed using Rockwell-approved tools and procedures.
Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use under recommended environmental conditions.
