Introduction

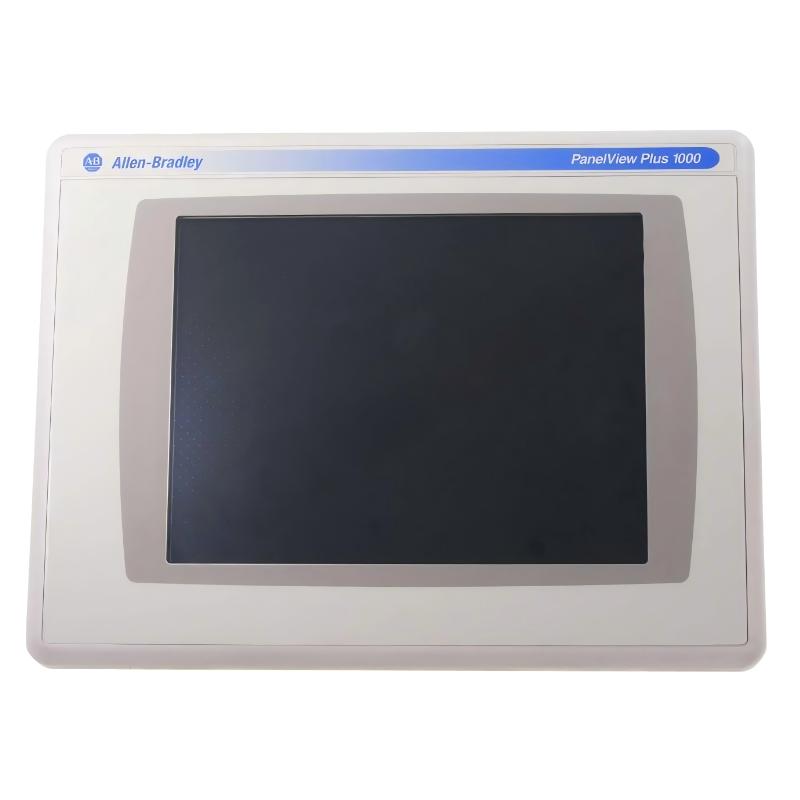

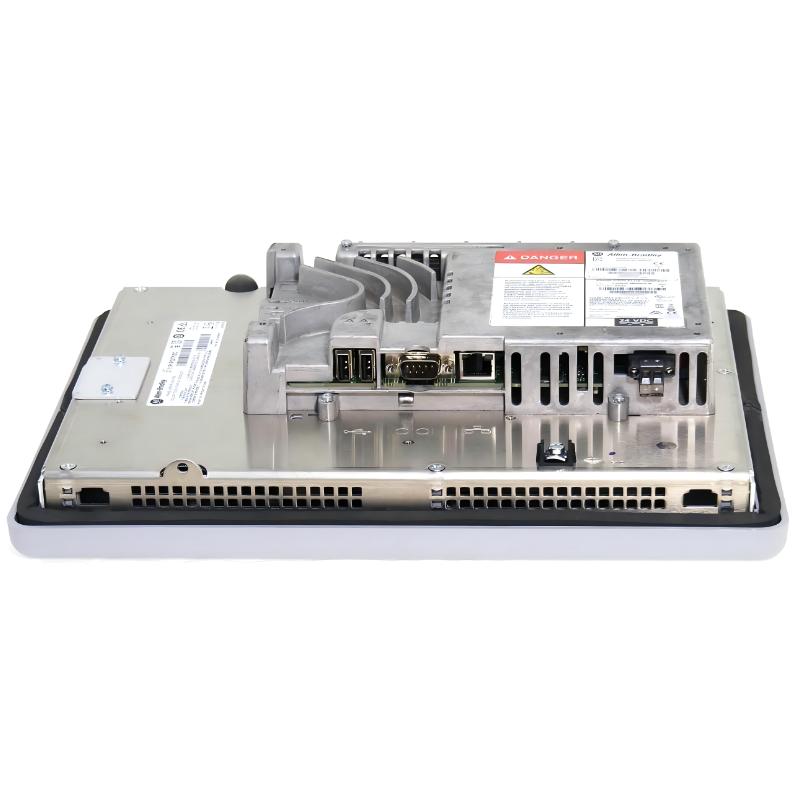

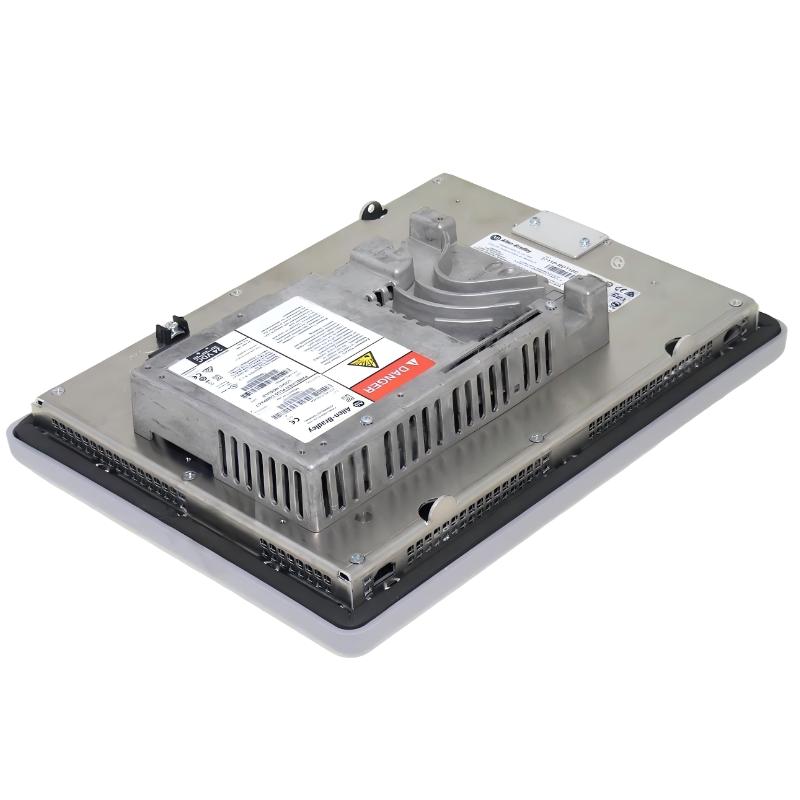

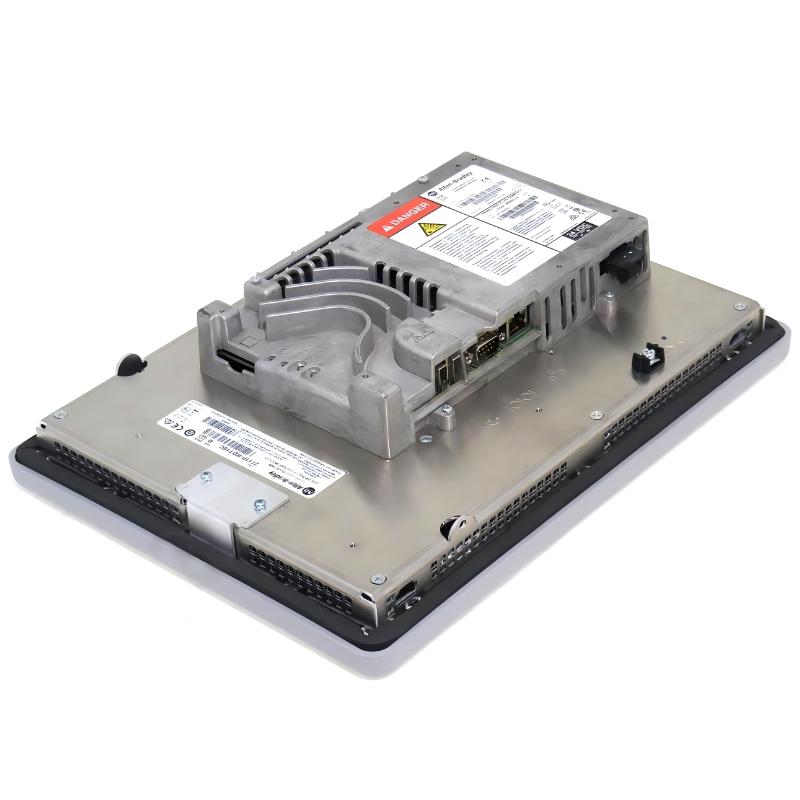

The Allen Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact 1000 Operator Interface delivers a robust and efficient HMI solution for compact industrial automation systems. Combining a large 10.4-inch visualization area with reliable touchscreen operation, it enables operators to monitor, control, and troubleshoot processes effectively. Its integration with Allen Bradley control systems makes it a practical choice for OEMs and industrial users seeking a stable and scalable HMI platform.

Technical Specifications

Technical Parameter	Specification
Product Model	2711PC-T10C4D8
Product Series	PanelView Plus 6 Compact 1000
Display Size	10.4-inch TFT Color Display
Display Resolution	640 × 480 Pixels
Input Method	Touchscreen
Dimensions (W × H × D)	329 × 248 × 55 mm
Weight	2.5 kg (5.51 lb)
Input Voltage	18–32 VDC
Power Consumption	Approx. 70 W
Communication Interfaces	Ethernet, RS-232, USB
Memory	512 MB RAM / 512 MB Flash
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C
Relative Humidity	5% to 95% Non-condensing
Mounting Method	Panel Mount
Protection Rating	IP65 / NEMA 4X (front)
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact 1000 is designed for machine-level visualization and control in compact and cost-efficient industrial automation systems. It is widely used where integrated HMI performance and simplified deployment are required.

Typical applications include:

Compact manufacturing systems
Packaging and labeling machines
Material handling and conveyor control
OEM machine panels
Water and utility monitoring systems
Discrete automation cells
Process visualization for small SCADA nodes
Equipment diagnostics and operator interfaces

Advantages

Compact industrial HMI platform: Designed for space-saving control cabinet integration
High-performance visualization: Clear 10.4-inch class display for process monitoring
Windows CE-based flexibility: Supports industrial HMI runtime applications
Efficient operator interaction: Responsive touchscreen improves operational speed
Strong controller integration: Optimized for CompactLogix and Allen Bradley PLC systems
Reliable industrial operation: Built for continuous factory-floor environments
Multi-interface communication: Supports Ethernet and serial-based industrial networks

Technical FAQs

Which PLC systems are compatible?
It is commonly used with Allen Bradley CompactLogix, ControlLogix, and MicroLogix controllers via Ethernet/IP or serial communication.
Does it support Ethernet communication?
Yes, it includes Ethernet connectivity for PLC communication and system integration.
Can it run FactoryTalk View applications?
Yes, it supports FactoryTalk View Machine Edition runtime applications.
Does the device retain data after power loss?
Yes, application and configuration data are stored in non-volatile memory.
Can multiple screens be configured?
Yes, multiple operator screens for alarms, trends, and process visualization are supported.
Does it support alarm handling?
Yes, alarms can be displayed, acknowledged, and logged.
Is remote access possible?
Depending on configuration, remote connectivity can be enabled through supported services.
Can operators modify process parameters?
Yes, authorized users can adjust setpoints and control values via the touchscreen.
Is firmware upgrade supported?
Yes, firmware updates are supported using Rockwell Automation tools.
Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use under recommended conditions.
