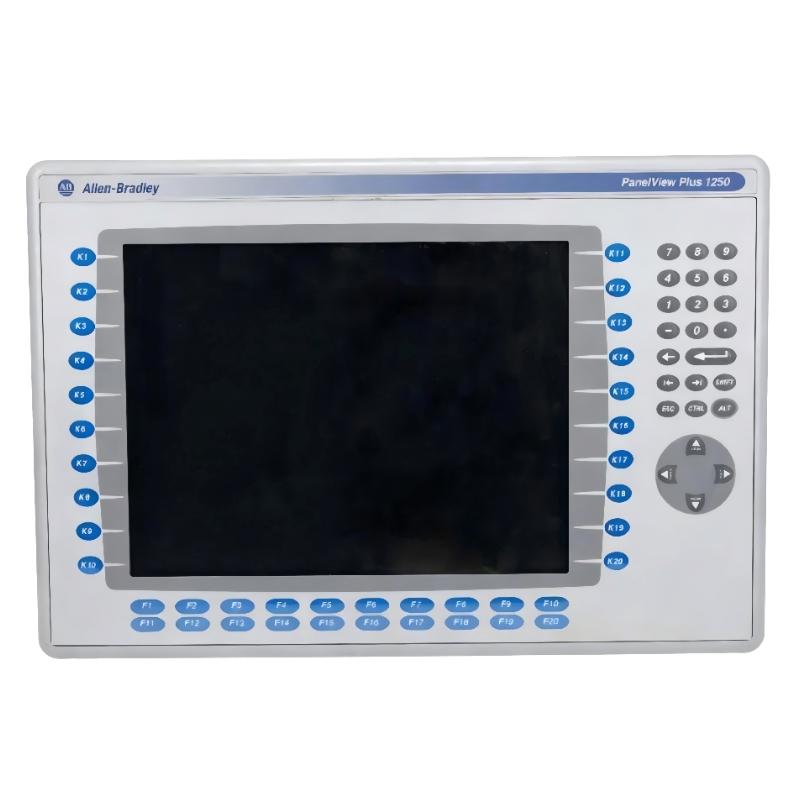

Name: Allen Bradley 2711P-K12C6A6 PanelView Plus 1250 Operator Interface
Brand: Allen Bradley PLC
SKU: 12579
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Allen Bradley 2711P-K12C6A6 PanelView Plus 1250 Operator Interface delivers high-performance HMI functionality for demanding industrial automation environments. Its large 12-inch display provides clear process visualization, while hybrid input options ensure efficient operator control. With robust integration into Allen Bradley PLC ecosystems and advanced alarm handling, it is ideal for complex manufacturing and utility applications requiring reliable and durable human-machine interaction.

Technical Specifications

Technical Parameter	Specification
Product Model	2711P-K12C6A6
Product Series	PanelView Plus 1250
Display Size	12-inch TFT Color Display
Display Resolution	800 × 600 Pixels
Input Method	Touchscreen + Keypad
Dimensions (W × H × D)	416 × 282 × 55 mm
Weight	3.4 kg (7.50 lb)
Input Voltage	18–32 VDC
Power Consumption	Approx. 75 W
Communication Interfaces	Ethernet, RS-232, USB
Memory	512 MB RAM / 512 MB Flash
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 70°C
Relative Humidity	5% to 95% Non-condensing
Mounting Method	Panel Mount
Protection Rating	IP65 / NEMA 4X (front)
Certifications	CE, UL, cUL

Applications

The Allen Bradley 2711P-K12C6A6 PanelView Plus 1250 Operator Interface is engineered for high-end industrial automation applications where large display areas and advanced HMI capabilities are required. Typical applications include:

Large-scale manufacturing lines
Complex packaging and filling systems
High-speed material handling systems
Pharmaceutical and food processing plants
Water and wastewater monitoring systems
SCADA and distributed control systems
OEM machinery operator panels
Energy management and utilities

Advantages

Expansive 12-inch display: Provides enhanced visibility for complex processes
Hybrid input system: Supports both touchscreen and keypad operation for versatile control
Seamless PLC integration: Compatible with Allen Bradley ControlLogix, CompactLogix, and MicroLogix systems
Advanced alarm management: Displays, logs, and allows acknowledgment of alarms in real time
Robust industrial durability: Designed for continuous operation in harsh environments
User security levels: Multi-level access controls protect critical functions
High-performance communication: Ethernet and serial interfaces for reliable data transfer

Technical FAQs

Which PLC systems are compatible?
Works with ControlLogix, CompactLogix, and MicroLogix controllers via Ethernet/IP and serial connections.
Can it display real-time process data?
Yes, it supports live data visualization with dynamic tags.
Does it support both touchscreen and keypad inputs?
Yes, providing flexible control options for operators.
Is configuration retained after power loss?
Yes, the device uses non-volatile memory to preserve applications.
Can multiple screens be configured in a project?
Yes, multiple operator screens, alarm pages, and trends are supported.
How are alarms handled?
Alarms can be viewed, acknowledged, and logged in real time.
Is remote access supported?
Remote access is possible with proper network configuration and security setup.
Can user permissions be customized?
Yes, access can be restricted by role for sensitive operations.
Is firmware upgrade supported?
Yes, firmware updates are performed with Rockwell-approved tools.
Is it suitable for 24/7 operation?
Yes, designed for continuous industrial use under recommended environmental conditions.
