Introduction

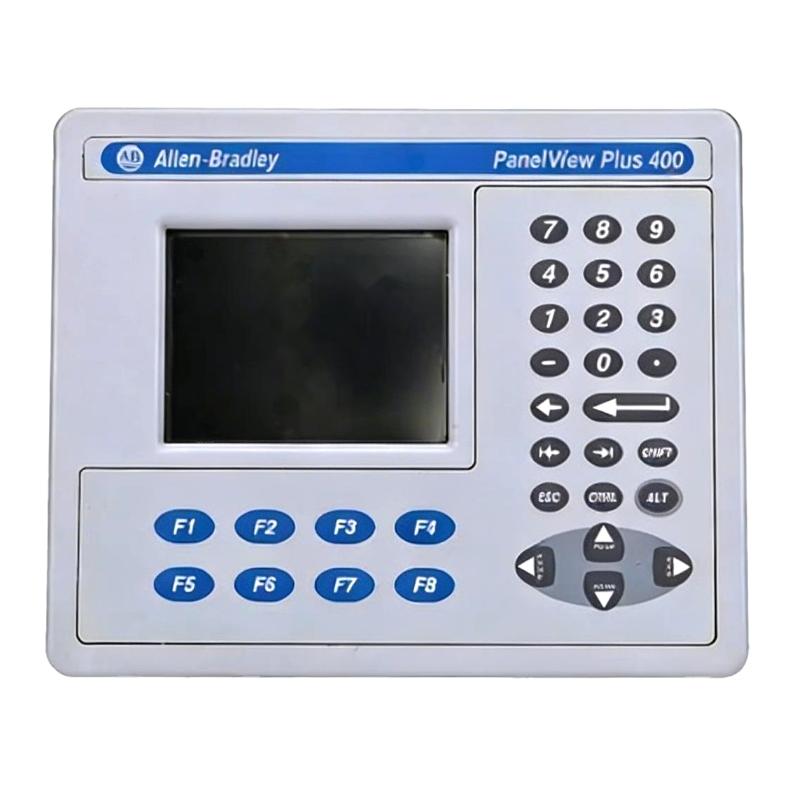

The Allen Bradley 2711P-K4C5D8 PanelView Plus 6 400 Operator Interface delivers a compact, reliable, and efficient HMI solution for small industrial automation systems. Its responsive touchscreen, robust construction, and integration with Allen Bradley PLCs make it ideal for machine-level control, process monitoring, and operator interaction. Designed for durability and ease of use, it enhances productivity while ensuring system reliability.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Product Model | 2711P-K4C5D8 |
| Product Series | PanelView Plus 6 400 |
| Display Size | 4-inch TFT Color Display |
| Display Resolution | 480 × 272 Pixels |
| Input Method | Touchscreen |
| Dimensions (W × H × D) | 185 × 152 × 60 mm |
| Weight | 0.473 kg (1.04 lb) |
| Input Voltage | 24 VDC |
| Power Consumption | 10 W Max |
| Communication Interfaces | Ethernet, RS-232/RS-485, USB |
| Memory | Non-volatile Flash Memory |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5% to 95% Non-condensing |
| Mounting Method | Panel Mount |
| Protection Rating | IP65 / NEMA 4X (front) |
| Certifications | CE, UL, cUL |
