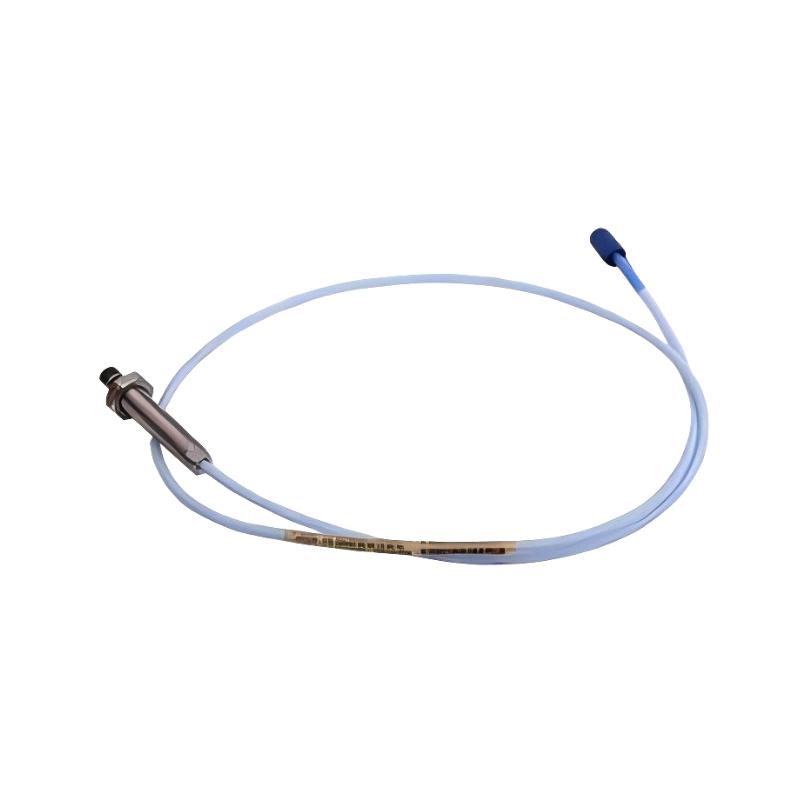

The Bently Nevada 330101-30-60-90-02-CN Proximity Probe is a precision sensing solution from the proven 3300 XL 8 mm Proximity Transducer System. Designed to provide continuous measurement of shaft vibration, displacement, and position, this probe supports effective machinery protection and condition monitoring programs across a wide range of industrial applications.
With its extended 9-meter system length and rugged stainless-steel construction, this model is particularly suited for installations requiring flexible mounting arrangements and reliable long-distance signal transmission. The CN configuration is commonly specified for regional compliance and project-specific requirements while maintaining the trusted performance characteristics of the 3300 XL platform.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-60-90-02-CN |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length Option | 3.0 in |
| Case Length Option | 6.0 in |
| System Length | 9.0 m |
| Connector Type | Miniature ClickLoc Connector |
| Configuration Suffix | CN Version |
| Housing Material | Stainless Steel |
| Cable Type | Shielded Coaxial Cable |
| Monitoring Functions | Shaft Vibration, Position, and Displacement |
| System Compatibility | Bently Nevada 3300 XL Monitoring Systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | 3.0 in (76.2 mm) |
| Case Length | 6.0 in (152.4 mm) |
| Total System Length | 9.0 m |
| Approximate Weight | 0.90–1.50 kg |
| Housing Material | Stainless Steel |
