Brand:Schneider PLC Item No.:BMEXBP1200H Product Origin:France Product Dimensions:503.2 × 19 × 105.11 mm Product Weight:1.377 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

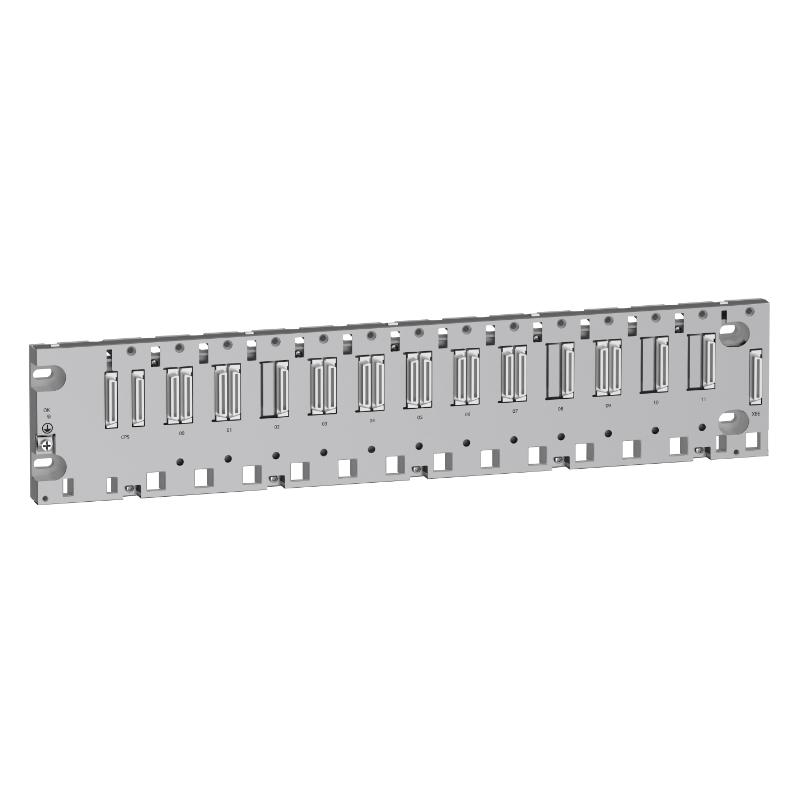

The Schneider BMEXBP1200H Ethernet Backplane is a high-performance 12-slot rack platform designed for Modicon M580 automation systems. It enables seamless integration of CPU, I/O, and communication modules through a unified Ethernet and X-bus architecture. Built for industrial-grade reliability, it supports scalable system expansion, stable data exchange, and robust operation in demanding process control environments.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Modicon X80
Model Number
BMEXBP1200H
Product Type
Ethernet Backplane Rack
System Type
PLC / PAC Distributed Control System
Slot Capacity
12 Slots (8 Ethernet + X-bus, 4 X-bus only)
Communication
Ethernet + X-bus integrated backplane
Compatibility
Modicon M580 / X80 modules
Mounting Type
Industrial rack installation
Environmental Rating
Ruggedized industrial design
Dimensions
503.2 × 19 × 105.11 mm
Weight
1.377 kg
Recommended Related Models
Model Number
Product Name
BMEXBP1002H
Modicon 10-Slot Ethernet Backplane
BMEXBP0800H
Modicon 8-Slot Ethernet Backplane
BMEXBP0602H
Modicon Redundant Power Backplane
BMXXBP0400H
Modicon Compact X80 Backplane
Popular Related Models
Model Number
Product Name
BMEP582020
Modicon M580 Independent Processor
BMXDDO1602H
Modicon Digital Output Module
BMXAMI0810
Modicon Analog Input Module
BMXCRA31200
Modicon Remote I/O Adapter
Applications
• Designed for Modicon M580 distributed control systems to provide a high-speed Ethernet and X-bus backplane for CPU, I/O, and communication modules.
• Commonly used in large industrial facilities such as oil & gas, power generation, chemical processing, and water treatment plants.
• Suitable for modular automation architectures requiring scalable rack-based system expansion and high-performance data exchange.
• Applied in harsh industrial environments where reliable backplane communication and system stability are critical for continuous operation.
Key Advantages
• Provides 12-slot modular architecture with integrated Ethernet backplane for flexible system configuration.
• Supports high-speed communication between CPU, I/O, and communication modules via Ethernet and X-bus integration.
• Ruggedized design ensures stable operation in demanding industrial environments with extended temperature resistance.
• Enables scalable system expansion for complex distributed control applications.
Technical FAQs
Q1: What is the main function of the BMEXBP1200H backplane?
A: It provides electrical and communication interconnection between modules in a Modicon M580 rack system.
Q2: What system is it used in?
A: It is used in Schneider Electric Modicon M580 and X80 automation platforms.
Q3: How many slots does it support?
A: It supports 12 slots in total with Ethernet + X-bus and X-bus-only configuration.
Q4: Does it support Ethernet communication?
A: Yes, it integrates Ethernet communication directly into the backplane architecture.
Q5: Is it suitable for harsh environments?
A: Yes, it is ruggedized for industrial use with extended temperature capability.
Q6: Can it be used with redundant systems?
A: Yes, it supports high-availability system configurations depending on architecture.
Q7: What modules are compatible with it?
A: It supports CPU, power supply, I/O modules, and communication modules from the X80 family.
Q8: Does it require configuration?
A: No direct configuration is required; it operates as part of the rack system.
Q9: Is installation complex?
A: It requires proper rack mounting and system-level integration but no programming.
Q10: Does it improve system performance?
A: Yes, it ensures fast and stable communication between all rack modules.
