Brand:Schneider PLC Item No.:BMXNOM0200H Product Origin:France Product Dimensions:100 × 32 × 86 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

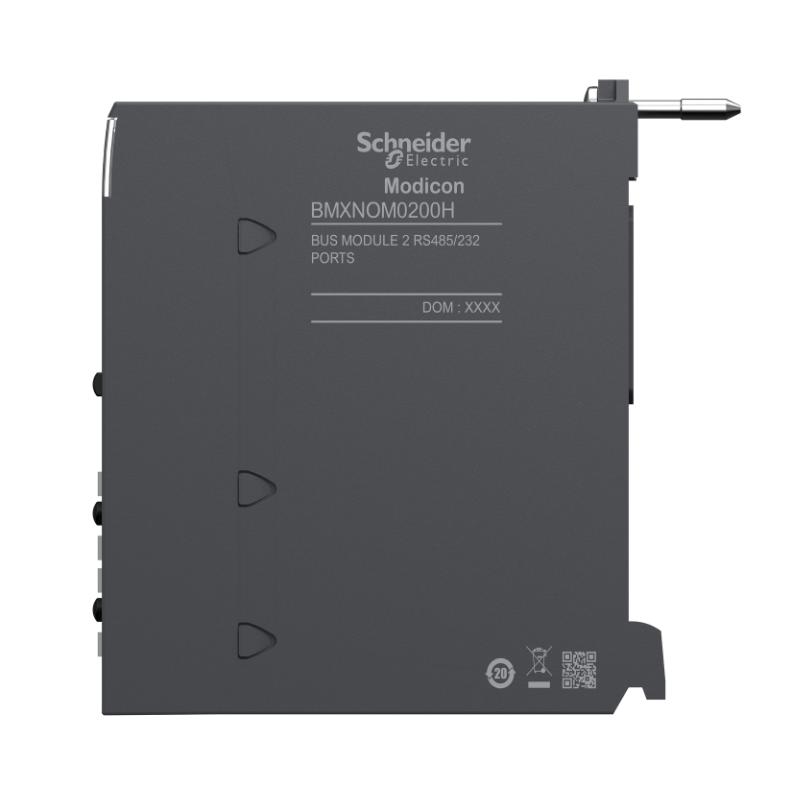

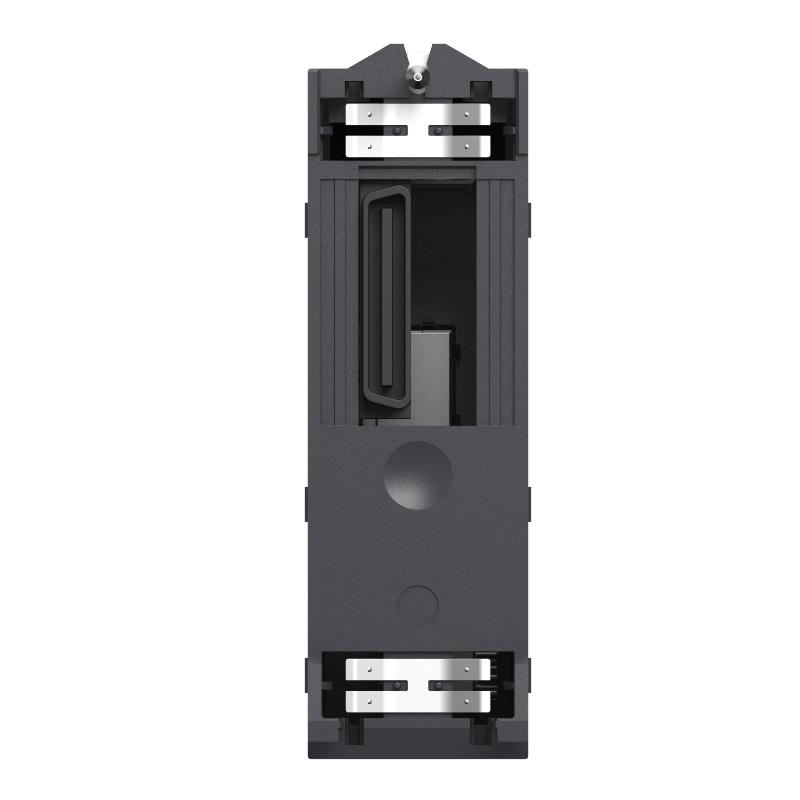

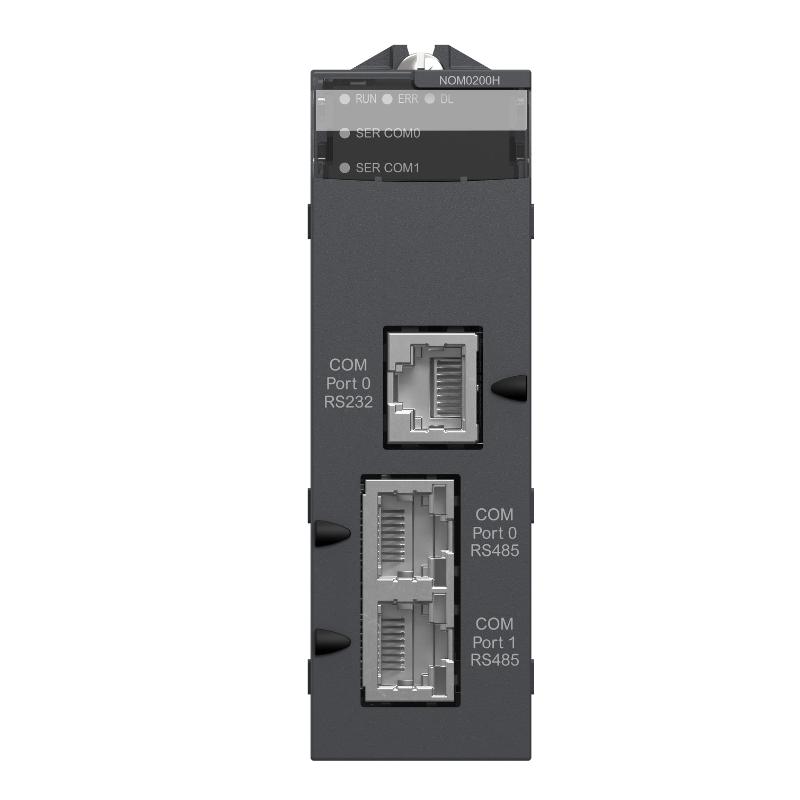

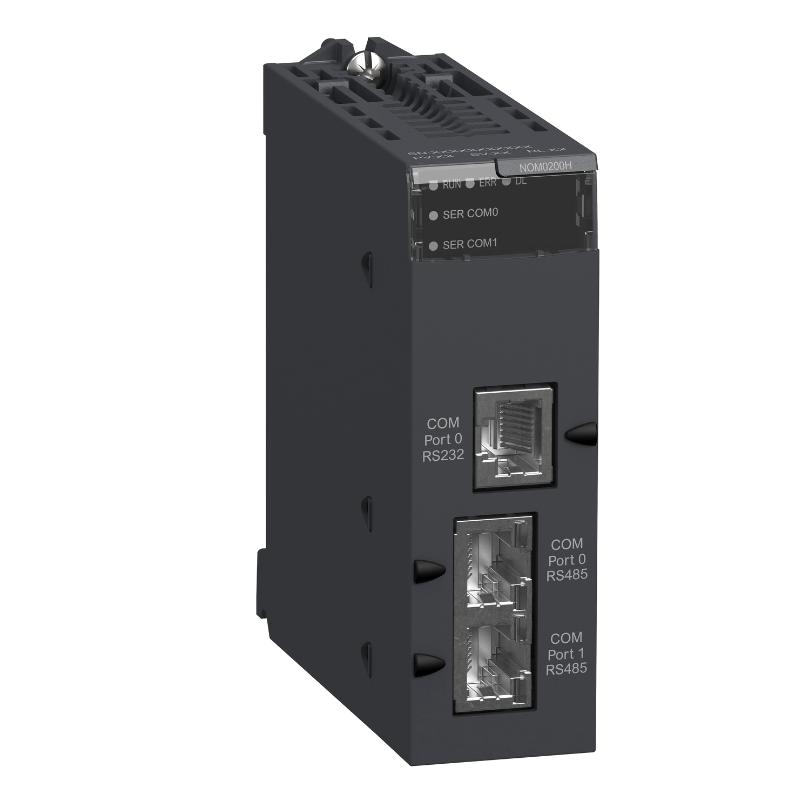

The Schneider BMXNOM0200H Serial Link Module is a high-reliability communication interface designed for Modicon automation platforms. It enables seamless serial connectivity between PLC systems and industrial field devices using RS-232 and RS-485 interfaces. Built for flexibility and robustness, it supports multiple communication protocols and ensures stable integration of both modern and legacy automation equipment in demanding industrial environments.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Modicon X80
Model Number
BMXNOM0200H
Product Type
Serial Link Module
Communication Ports
2 × RS-232 / RS-485
Protocols
Modbus RTU, Modbus ASCII, Character Mode
System Compatibility
Modicon M340 / M580
Power Supply
Internal (via rack backplane)
Current Consumption
~80 mA @ 24 V DC
Operating Temperature
-25 to +70 °C
Application
Industrial Serial Communication
Dimensions
100 × 32 × 86 mm
Weight
0.23 kg
Recommended Related Models
Model Number
Product Name
BMXNOR0200H
Modicon Ethernet/Serial Communication Module
BMXNOC0401
Modicon Ethernet Communication Module
BMXNOE0100
Modicon Ethernet TCP/IP Module
BMXNOM0210
Modicon Enhanced Serial Link Module
Popular Related Models
Model Number
Product Name
BMXXBP0400
Modicon X80 Backplane Module
BMXDDO1602H
Modicon Digital Output Module
BMXAMI0810
Modicon Analog Input Module
BMEP582020
Modicon M580 Processor Module
Applications
• Designed for Modicon M340 and Modicon M580 automation systems to enable reliable serial communication with field devices and third-party equipment.
• Commonly used in industrial process environments such as water treatment, oil & gas, chemical plants, and energy systems requiring Modbus-based integration.
• Suitable for connecting PLC systems to HMIs, drives, meters, and remote terminal units (RTUs) via RS-232/RS-485 networks.
• Applied in distributed control architectures where flexible serial communication and legacy device integration are required.
Key Advantages
• Provides dual serial ports supporting RS-232 and RS-485 communication for flexible system integration.
• Supports Modbus RTU, Modbus ASCII, and character mode for broad device compatibility.
• Enhances system connectivity by bridging modern PLC platforms with legacy industrial equipment.
• Built for stable operation in harsh industrial environments with extended temperature resistance.
Technical FAQs
Q1: What is the main function of the BMXNOM0200H module?
A: It enables serial communication between Schneider PLC systems and external industrial devices.
Q2: Which PLC platforms support this module?
A: It is compatible with Modicon M340 and Modicon M580 systems.
Q3: What communication interfaces does it provide?
A: It provides RS-232 and RS-485 serial communication ports.
Q4: Which protocols are supported?
A: It supports Modbus RTU, Modbus ASCII, and character mode communication.
Q5: Can it connect to legacy industrial devices?
A: Yes, it is commonly used for integrating legacy Modbus devices into modern PLC systems.
Q6: Is this module suitable for harsh environments?
A: Yes, it is designed for extended temperature industrial applications.
Q7: Does it require external power?
A: No, it is powered internally through the PLC rack backplane.
Q8: How many serial ports does it have?
A: It features two serial communication ports.
Q9: Can it be used for HMI communication?
A: Yes, it can connect PLCs to HMIs and other supervisory devices.
Q10: Does it support real-time data exchange?
A: Yes, it supports real-time industrial serial communication depending on configuration.
