Brand:Schneider PLC Item No.:ATS480C11Y Product Origin:France Product Dimensions:290 × 190 × 247 mm Product Weight:8.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

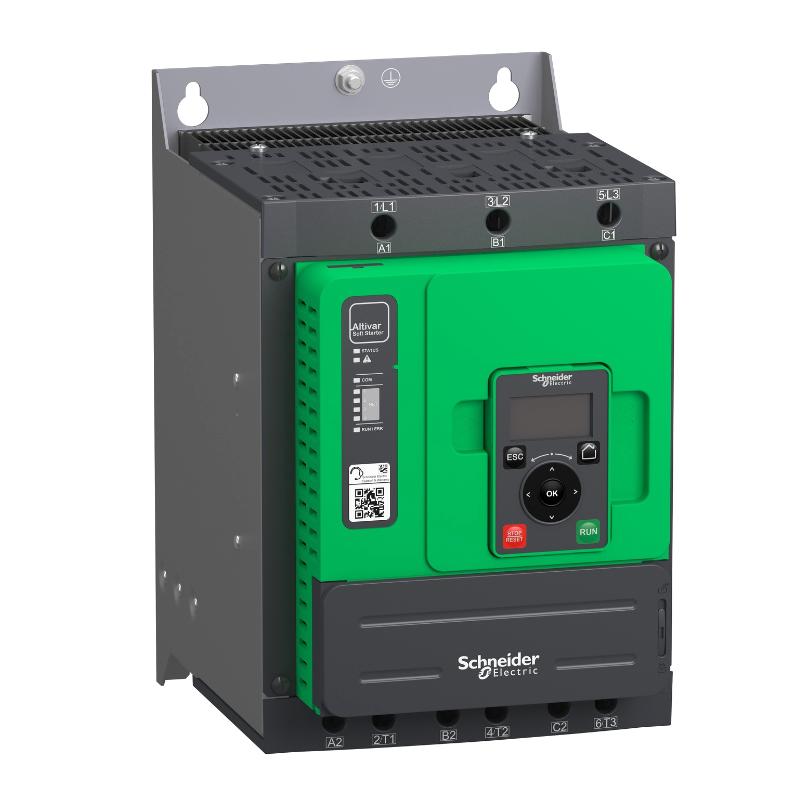

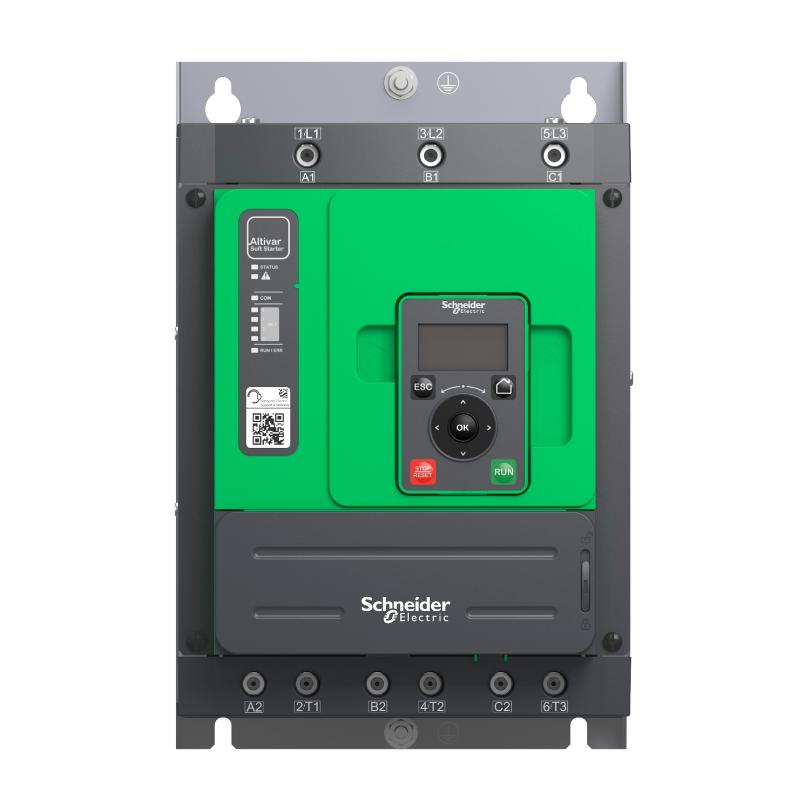

The Schneider ATS480C11Y Soft Starter is a high-performance motor control device designed to optimize the starting and stopping of AC induction motors in demanding industrial applications. It reduces electrical and mechanical stress through controlled voltage ramping, improving system reliability and extending equipment life. Engineered for modern industrial automation, it combines robust protection features, flexible integration, and efficient motor control in a compact, durable design.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Altivar ATS480
Model Number
ATS480C11Y
Product Type
Soft Starter
Rated Current
110 A (Normal Duty)
Supply Voltage
208–690 V AC
Control Supply
110–230 V AC
Motor Power Range
Up to ~90 kW (depending on voltage)
Control Method
Torque control (TCS)
Protection Functions
Overload, phase loss, motor protection
Mounting Type
Chassis / Panel Mount
Dimensions
290 × 190 × 247 mm
Weight
8.3 kg
Recommended Related Models
Model Number
Product Name
ATS480C17Y
Schneider Altivar Soft Starter 170A
ATS480C25Y
Schneider Altivar Soft Starter 250A
ATS480C11YQ
Enhanced ATS480 Variant
ATS22D62Q
Schneider Altistart 22 Soft Starter
Popular Related Models
Model Number
Product Name
ATV630D55N4
Altivar 630 Variable Speed Drive
ATV930D75N4
Altivar Process Drive
ATS22D47Q
Altistart 22 Soft Starter
ATV320U55N4
Altivar 320 Compact Drive
Applications
• Designed for smooth starting and stopping of three-phase asynchronous motors in Schneider Altivar ATS480 motor control systems.
• Commonly used in heavy industrial sectors such as oil & gas, mining, water treatment, HVAC, and power generation.
• Suitable for pumps, compressors, conveyors, fans, and crushers where controlled torque and reduced mechanical stress are required.
• Applied in modern automation systems where energy efficiency and motor protection are critical for long equipment lifespan.
Key Advantages
• Delivers controlled torque acceleration and deceleration to reduce mechanical stress on motors and driven equipment.
• Supports wide voltage range operation (208–690V AC) for flexible industrial deployment.
• Enhances system reliability through integrated motor protection functions such as overload and phase loss detection.
• Built with advanced connectivity and diagnostic capabilities for modern digital industrial environments.
Technical FAQs
Q1: What is the main function of the ATS480C11Y?
A: It provides controlled motor starting and stopping by gradually increasing or decreasing voltage to the motor.
Q2: What type of motors does it support?
A: It is designed for three-phase asynchronous AC induction motors.
Q3: What is the rated current of this soft starter?
A: It has a rated operational current of approximately 110A under normal duty.
Q4: What voltage range does it support?
A: It supports a wide range from 208V to 690V AC.
Q5: Where is it commonly used?
A: It is used in industrial applications such as pumps, compressors, conveyors, and fans.
Q6: Does it reduce mechanical stress on equipment?
A: Yes, it minimizes inrush current and mechanical shock during motor startup.
Q7: Does it include motor protection features?
A: Yes, it includes overload, phase loss, and thermal protection functions.
Q8: Can it be used in heavy-duty applications?
A: Yes, it is suitable for both normal and heavy-duty motor control.
Q9: Does it support communication functions?
A: Yes, it supports industrial communication protocols depending on configuration.
Q10: Is it suitable for continuous industrial operation?
A: Yes, it is designed for 24/7 industrial environments.
