Brand:Schneider PLC Item No.:ATS480C21Y Product Origin:France Product Dimensions:380 × 277 × 320 mm Product Weight:18.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

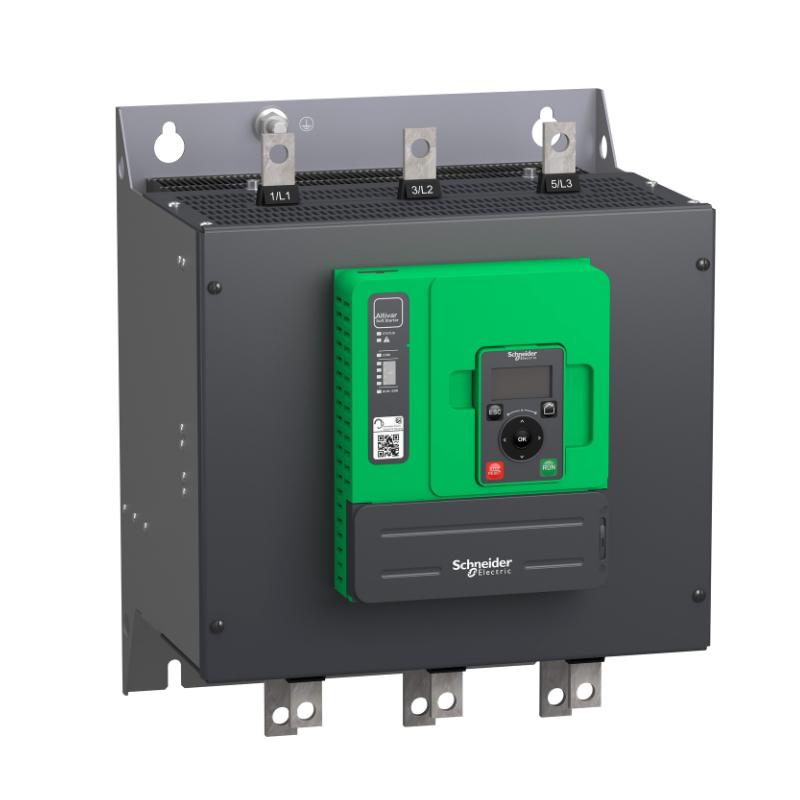

The Schneider ATS480C21Y Soft Starter is a high-performance motor control device designed to optimize the starting and stopping of large AC motors in demanding industrial applications. By controlling voltage ramp-up and ramp-down, it reduces electrical inrush and mechanical stress, significantly improving equipment lifespan and system stability. Built for modern industrial automation systems, it delivers reliable performance, advanced protection, and efficient motor control in a compact yet robust design.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Altivar ATS480
Model Number
ATS480C21Y
Product Type
Soft Starter
Rated Current
210 A
Supply Voltage
208–690 V AC
Control Voltage
110–230 V AC
Motor Power Range
Up to ~200 kW (depending on voltage)
Control Method
Torque Control (TCS)
Protection Functions
Overload, phase loss, thermal protection
Mounting Type
Panel / Chassis Mount
Dimensions
380 × 277 × 320 mm
Weight
18.2 kg
Recommended Related Models
Model Number
Product Name
ATS480C17Y
Schneider Altivar Soft Starter 170A
ATS480C11Y
Schneider Altivar Soft Starter 110A
ATS480C25Y
Schneider Altivar Soft Starter 250A
ATS22D75Q
Schneider Altistart 22 Soft Starter
Popular Related Models
Model Number
Product Name
ATV930D75N4
Altivar Process Drive
ATV630D55N4
Altivar 630 Variable Speed Drive
ATS22D47Q
Altistart 22 Soft Starter
ATV320U55N4
Altivar 320 Compact Drive
Applications
• Designed for controlled starting and stopping of medium to heavy-duty three-phase asynchronous motors in Schneider Altivar ATS480 systems.
• Widely used in heavy industrial environments such as oil & gas, mining, water treatment, HVAC systems, and power generation plants.
• Suitable for high-inertia loads including pumps, compressors, conveyors, crushers, and large fans requiring reduced mechanical and electrical stress.
• Applied in modern automation infrastructures where energy efficiency, torque control, and system reliability are essential.
Key Advantages
• Provides precise torque control to reduce inrush current and mechanical shock during motor startup and shutdown.
• Supports a wide voltage range from 208 to 690 V AC for flexible industrial integration.
• Enhances motor and system lifespan through advanced protection functions such as overload, phase loss, and thermal monitoring.
• Designed for high-demand continuous operation with robust industrial-grade construction.
Technical FAQs
Q1: What is the main function of the ATS480C21Y?
A: It is a soft starter that gradually ramps motor voltage to control starting and stopping smoothly.
Q2: What motor types are supported?
A: It supports three-phase squirrel-cage induction motors.
Q3: What is the rated current of this model?
A: It is rated at approximately 210 A for normal-duty applications.
Q4: What voltage range does it support?
A: It operates across 208–690 V AC systems.
Q5: What industries commonly use this device?
A: It is used in oil & gas, mining, water treatment, HVAC, and heavy industrial processing.
Q6: Does it reduce mechanical stress on equipment?
A: Yes, it minimizes torque shocks and mechanical wear during startup.
Q7: Does it include motor protection features?
A: Yes, it provides overload, phase loss, and thermal protection functions.
Q8: Can it be used for heavy-duty loads?
A: Yes, it is designed for both normal and heavy-duty industrial applications.
Q9: Does it support communication options?
A: Yes, depending on configuration, it can integrate with industrial communication systems such as Modbus and Ethernet-based networks.
Q10: Is it suitable for continuous operation?
A: Yes, it is engineered for 24/7 industrial environments.
