Brand:Schneider PLC Item No.:ATV320U07M2C Product Origin:France Product Dimensions:143 x 72 x 138 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

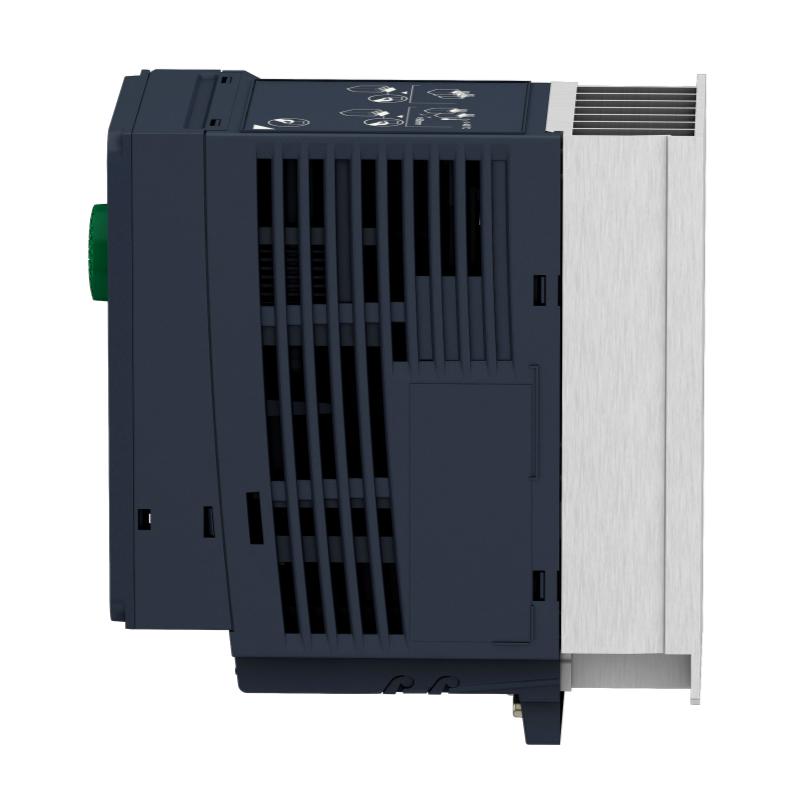

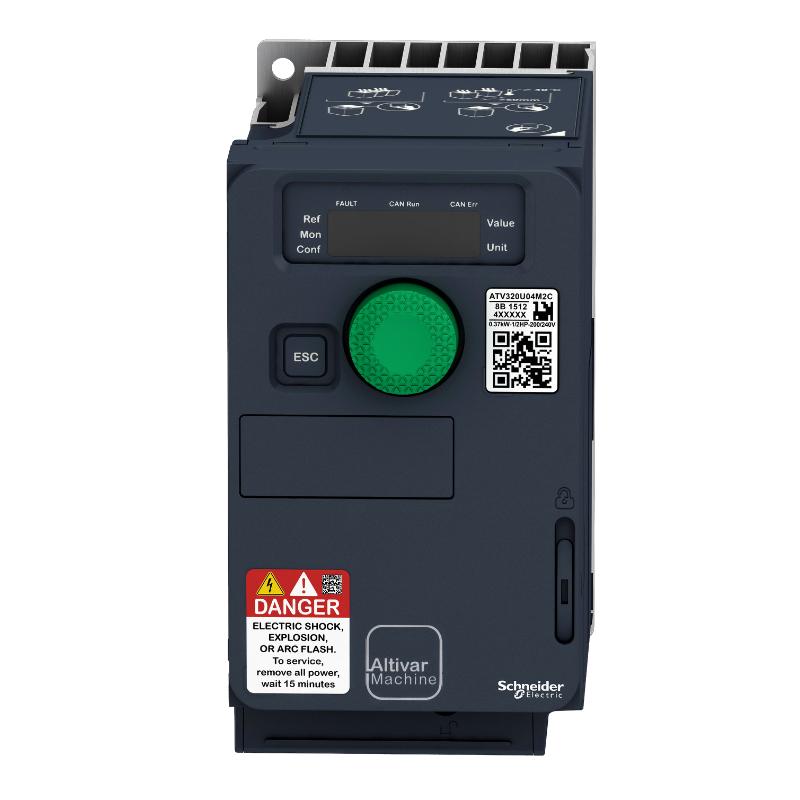

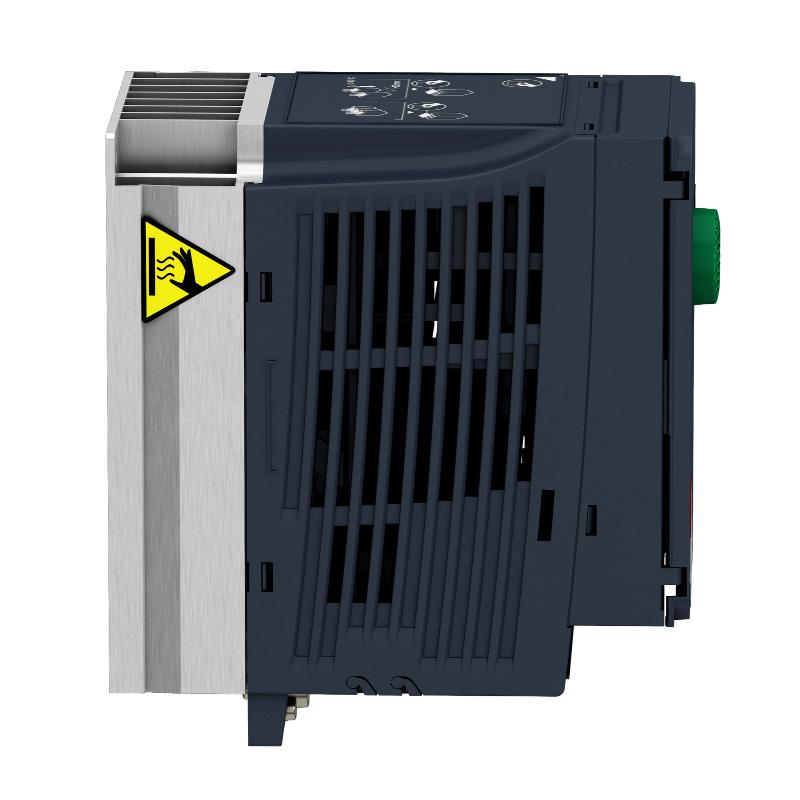

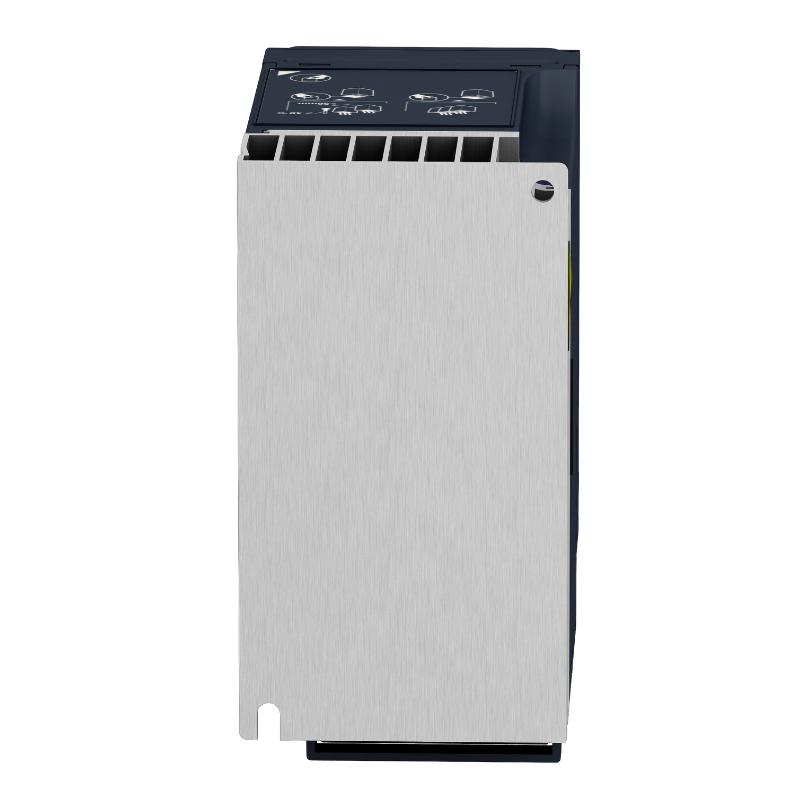

The Schneider ATV320U07M2C Variable Speed Drive is a compact and efficient motor control solution designed for modern industrial automation systems. It enables precise control of motor speed and torque, improving process efficiency and reducing mechanical stress on equipment. With its space-saving design and robust control features, it is widely used in OEM machinery and light industrial applications where reliability, energy efficiency, and flexible integration are required.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Altivar 320
Model Number
ATV320U07M2C
Product Type
Variable Speed Drive (VFD)
Supply Voltage
200–240 V AC (1-phase input)
Output Power
0.75 kW
Output Current
~4.8–10 A (depending on load conditions)
Control Method
Scalar / Vector control
Communication
Modbus, CANopen (optional expansion)
Protection Functions
Overload, short circuit, thermal protection
Mounting Type
Chassis / Wall / DIN rail mount
Dimensions
143 × 72 × 138 mm
Weight
1.1 kg
Recommended Related Models
Model Number
Product Name
ATV320U11M2C
Altivar 320 1.1 kW Variable Speed Drive
ATV320U04M2C
Altivar 320 0.37 kW Compact Drive
ATV320U15M2C
Altivar 320 1.5 kW Variable Speed Drive
ATV320D11N4B
Altivar 320 3-phase 11 kW Drive
Popular Related Models
Model Number
Product Name
ATV930U22N4
Altivar Process Drive
ATV630U30N4
Altivar 630 Variable Speed Drive
ATV12H075M2
Altivar 12 Compact Drive
ATV340U40N4E
Altivar Machine High Performance Drive
Applications
• Designed for precise motor speed control in Schneider Altivar ATV320 series used in compact industrial automation systems.
• Commonly applied in light-to-medium duty industries such as conveyors, packaging machines, textile equipment, HVAC systems, and material handling lines.
• Suitable for single-phase motor control applications requiring stable torque regulation and energy-efficient operation.
• Ideal for OEM machinery where compact size, flexible integration, and reliable motor performance are essential.
Key Advantages
• Provides precise variable frequency control for smooth motor acceleration and deceleration.
• Compact book-style design allows easy integration into space-constrained control cabinets.
• Supports multiple communication protocols for flexible industrial automation connectivity.
• Built-in protection functions enhance motor safety and reduce downtime risks.
Technical FAQs
Q1: What is the main function of the ATV320U07M2C?
A: It is a variable speed drive used to control the speed and torque of AC motors.
Q2: What type of motors is it compatible with?
A: It is designed for three-phase asynchronous motors, typically supplied from single-phase input in this model variant.
Q3: What is its rated power?
A: It supports approximately 0.75 kW motor applications.
Q4: What voltage range does it support?
A: It operates on 200–240 V AC single-phase supply.
Q5: Where is it commonly used?
A: It is used in conveyors, pumps, fans, packaging machines, and small automation systems.
Q6: Does it support communication protocols?
A: Yes, depending on configuration, it supports industrial fieldbus options such as Modbus and CANopen.
Q7: Does it provide motor protection?
A: Yes, it includes protection against overload, short circuit, and thermal issues.
Q8: Is it suitable for continuous operation?
A: Yes, it is designed for 24/7 industrial use in controlled environments.
Q9: Can it reduce energy consumption?
A: Yes, by adjusting motor speed according to load demand, it improves energy efficiency.
Q10: Is it easy to install?
A: Yes, its compact chassis design supports DIN rail or panel mounting for simplified integration.
