Brand:Schneider PLC Item No.:ATV320U11M2C Product Origin:France Product Dimensions:158 x 105 x 142 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

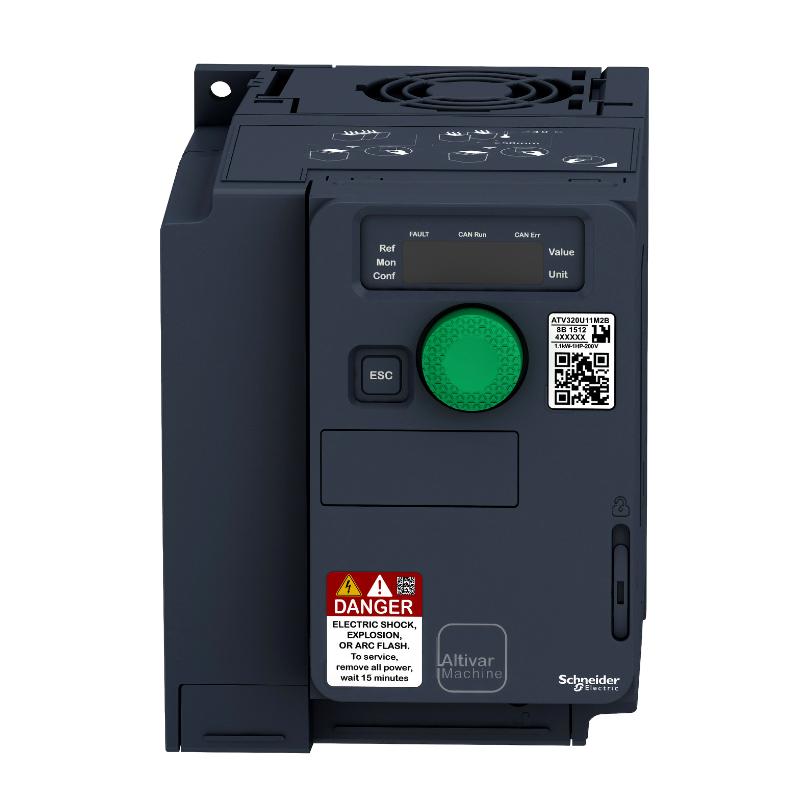

The Schneider ATV320U11M2C Variable Speed Drive is a compact and efficient motor control solution designed for modern industrial and OEM applications. It delivers precise control of motor speed and torque, helping improve process stability, reduce energy consumption, and extend equipment lifespan. With its flexible design and strong integration capability, it is widely used in small-to-medium automation systems where reliability and performance are essential.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Altivar 320
Model Number
ATV320U11M2C
Product Type
Variable Speed Drive (VFD)
Supply Voltage
200–240 V AC (1-phase input)
Output Power
1.1 kW
Output Current
~6.9 A
Control Method
V/f control + sensorless vector control
Communication
Modbus, CANopen
Protection Functions
Overload, short circuit, thermal protection
Mounting Type
Panel / chassis mount
Dimensions
158 × 105 × 142 mm
Weight
1.6 kg
Recommended Related Models
Model Number
Product Name
ATV320U07M2C
Altivar 320 0.75 kW Variable Speed Drive
ATV320U15M2C
Altivar 320 1.5 kW Variable Speed Drive
ATV320U04M2C
Altivar 320 0.37 kW Compact Drive
ATV340U11N4E
Altivar Machine High Performance Drive
Popular Related Models
Model Number
Product Name
ATV930D55N4
Altivar Process Drive
ATV630U22N4
Altivar 630 Variable Speed Drive
ATV12H075M2
Altivar 12 Compact Drive
ATV340U40N4E
Altivar Machine High Performance Drive
Applications
• Designed for precise motor speed control in compact industrial automation systems using Schneider Altivar ATV320 platform.
• Commonly applied in OEM machinery such as conveyors, packaging systems, textile equipment, HVAC units, and light material handling systems.
• Suitable for single-phase supply motor control applications requiring stable torque regulation and energy-efficient operation.
• Ideal for space-constrained control cabinets where compact size and flexible integration are essential.
Key Advantages
• Delivers accurate variable frequency control for smooth motor acceleration and deceleration.
• Compact chassis design allows easy installation in dense electrical panels and OEM machine layouts.
• Supports multiple industrial communication options for flexible system integration.
• Integrated protection functions improve motor safety and reduce downtime risk.
Technical FAQs
Q1: What is the main function of the ATV320U11M2C?
A: It controls AC motor speed and torque by adjusting output frequency and voltage.
Q2: What is the power rating of this drive?
A: It is rated for 1.1 kW motor applications.
Q3: What type of input power does it use?
A: It operates on 200–240 V AC single-phase input.
Q4: What industries commonly use this drive?
A: It is used in OEM machinery, HVAC, packaging, conveyors, and light automation systems.
Q5: Does it support communication protocols?
A: Yes, it supports industrial communication options such as Modbus and CANopen.
Q6: Can it improve energy efficiency?
A: Yes, it adjusts motor speed according to load demand to reduce energy consumption.
Q7: Does it include motor protection features?
A: Yes, it includes overload, thermal, and short-circuit protection.
Q8: Is it suitable for continuous operation?
A: Yes, it is designed for 24/7 industrial environments.
Q9: Is it easy to install?
A: Yes, it supports compact panel or DIN-rail style installation depending on configuration.
Q10: Can it be used in small machines?
A: Yes, it is specifically designed for compact OEM and light industrial equipment.
