Brand:Schneider PLC Item No.:ATV320U06M2C Product Origin:France Product Dimensions:143 x 72 x 138 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

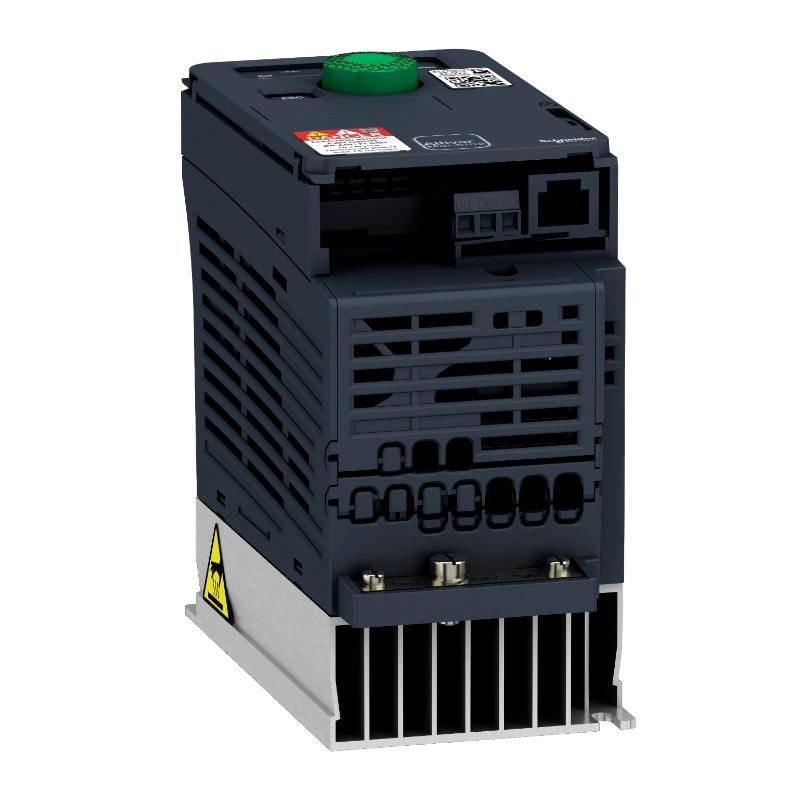

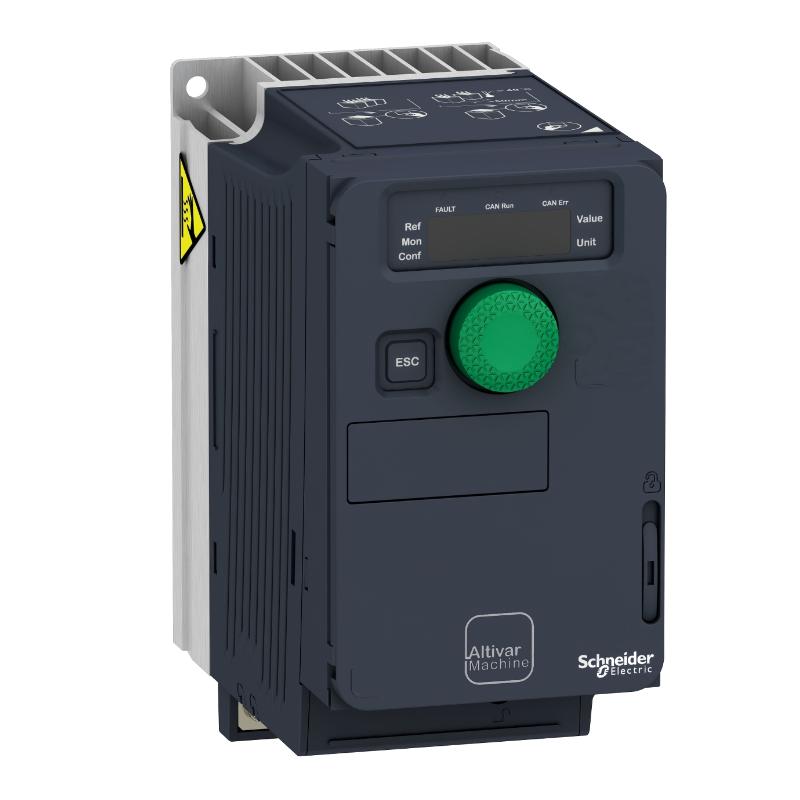

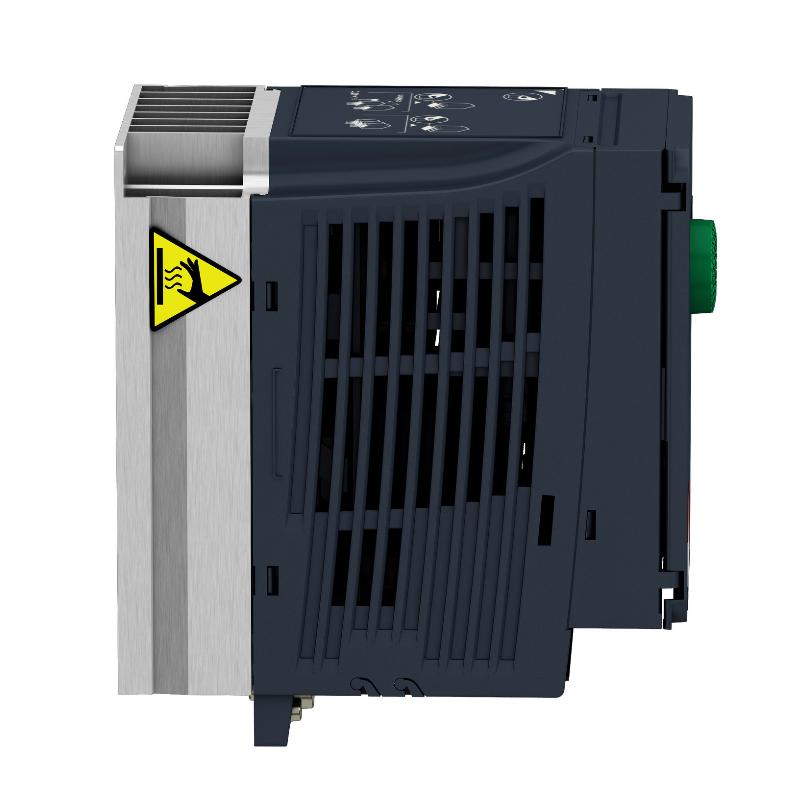

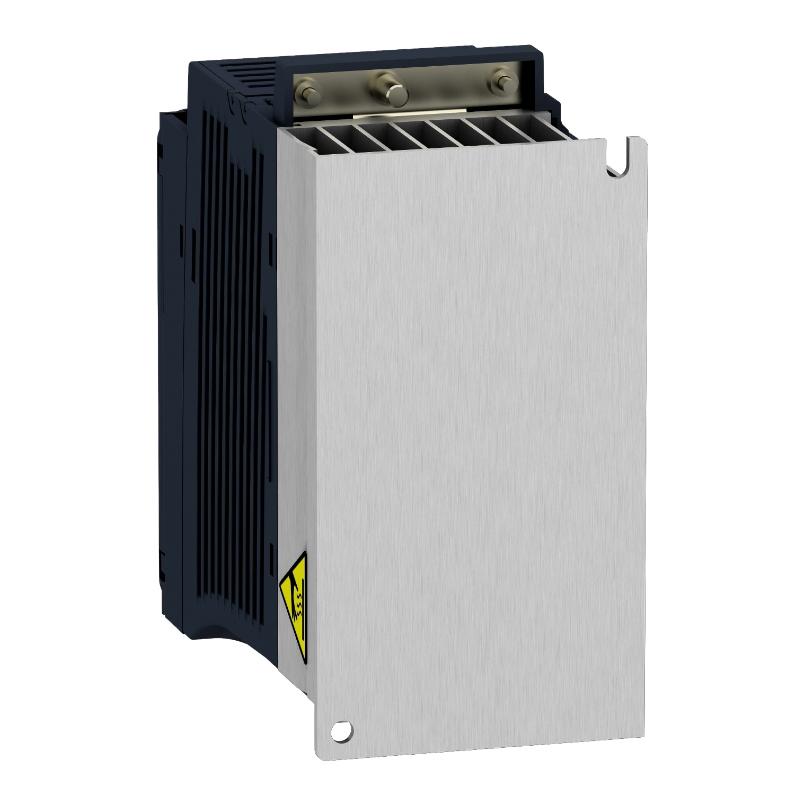

The Schneider ATV320U06M2C Variable Speed Drive is a compact and efficient motor control solution designed for OEM and light industrial applications. It provides precise control of motor speed and torque, improving process efficiency, reducing mechanical stress, and optimizing energy consumption. With its flexible integration capabilities and robust industrial design, it is widely used in systems where reliability, space efficiency, and stable performance are essential.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Product Series
Altivar 320
Model Number
ATV320U06M2C
Product Type
Variable Speed Drive (VFD)
Supply Voltage
200–240 V AC (1-phase input)
Output Power
0.55 kW
Output Current
~3.7 A
Control Method
V/f control + sensorless vector control
Communication
Modbus, CANopen
Protection Functions
Overload, short circuit, thermal protection
Mounting Type
Panel / chassis mount
Dimensions
143 × 72 × 138 mm
Weight
1.1 kg
Recommended Related Models
Model Number
Product Name
ATV320U04M2C
Altivar 320 0.37 kW Variable Speed Drive
ATV320U07M2C
Altivar 320 0.75 kW Variable Speed Drive
ATV320U11M2C
Altivar 320 1.1 kW Variable Speed Drive
ATV340U06N4E
Altivar Machine High Performance Drive
Popular Related Models
Model Number
Product Name
ATV930D55N4
Altivar Process Drive
ATV630U22N4
Altivar 630 Variable Speed Drive
ATV12H075M2
Altivar 12 Compact Drive
ATV340U40N4E
Altivar Machine High Performance Drive
Applications
• Used for precise speed and torque control in compact OEM machinery such as conveyors, packaging equipment, and light automation systems.
• Applied in HVAC systems including pumps, fans, and air handling units requiring stable and energy-efficient motor operation.
• Suitable for textile machines, material handling equipment, and small production lines with variable load conditions.
• Ideal for standalone industrial machines where compact integration and reliable motor control are required.
Key Advantages
• Provides smooth motor acceleration and deceleration with optimized frequency control for reduced mechanical stress.
• Compact design allows easy installation in space-limited control cabinets and machine panels.
• Supports flexible industrial communication options for integration into modern automation systems.
• Built-in protection functions enhance motor safety and improve overall system reliability.
Technical FAQs
Q1: What is the main function of the ATV320U06M2C?
A: It is a variable speed drive used to control AC motor speed by adjusting voltage and frequency.
Q2: What is the power rating of this drive?
A: It is rated for approximately 0.55 kW motor applications.
Q3: What type of power supply does it use?
A: It operates on a 200–240 V AC single-phase input supply.
Q4: What industries commonly use this drive?
A: It is used in OEM machinery, HVAC systems, conveyors, pumps, and light industrial automation.
Q5: Does it support motor protection?
A: Yes, it includes overload, thermal, and short-circuit protection functions.
Q6: Can it improve energy efficiency?
A: Yes, by adjusting motor speed to match load demand it reduces energy consumption.
Q7: Is it suitable for continuous operation?
A: Yes, it is designed for 24/7 industrial environments.
Q8: Does it support communication protocols?
A: Yes, it supports industrial communication such as Modbus and CANopen depending on configuration.
Q9: Is it easy to install?
A: Yes, it features a compact chassis design suitable for panel mounting.
Q10: Can it be used in small machines?
A: Yes, it is specifically designed for compact OEM and light-duty industrial equipment.
