Introduction

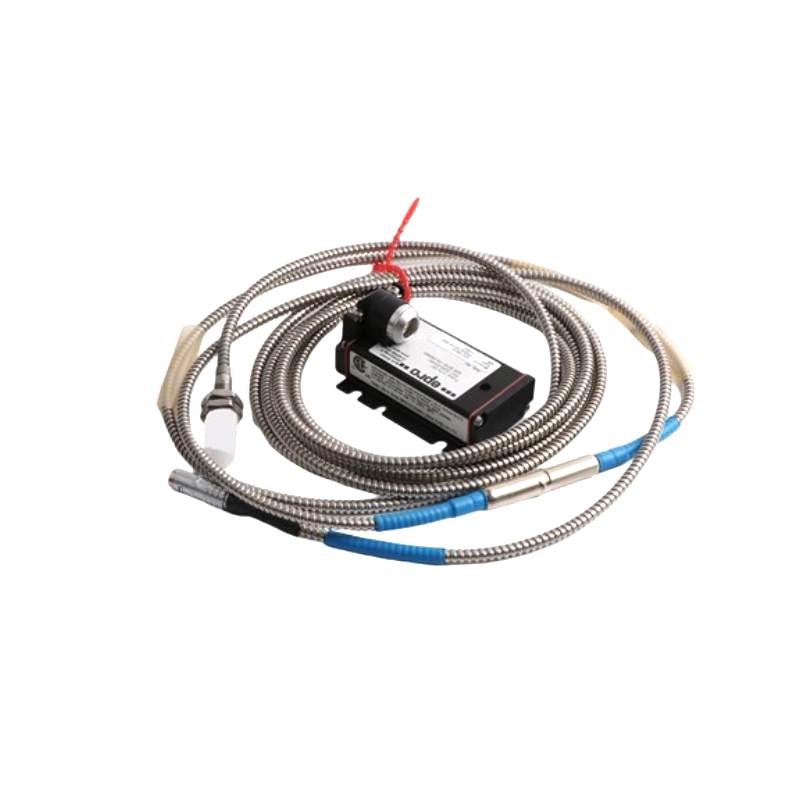

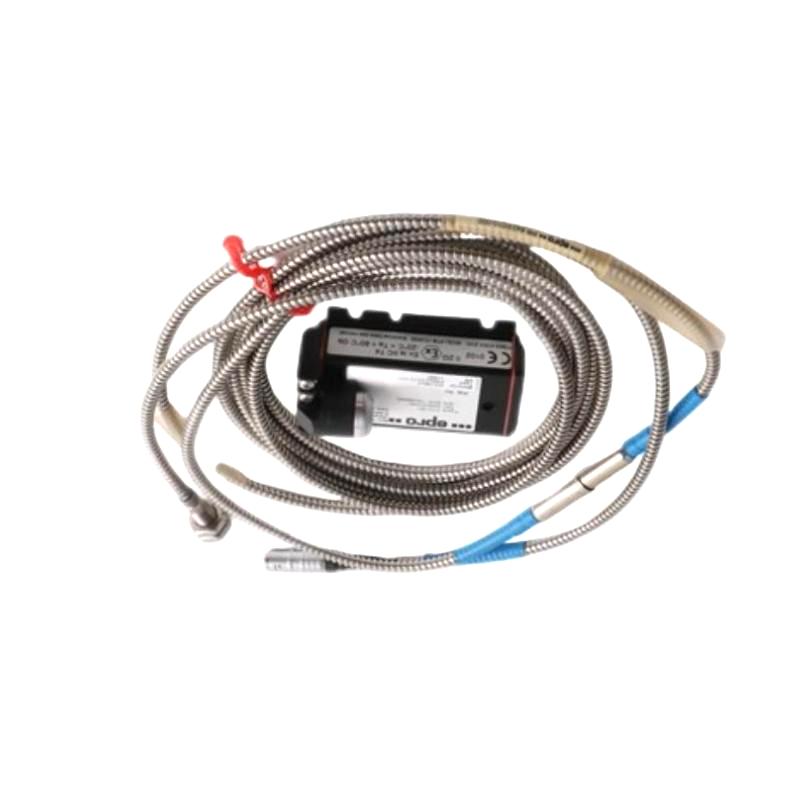

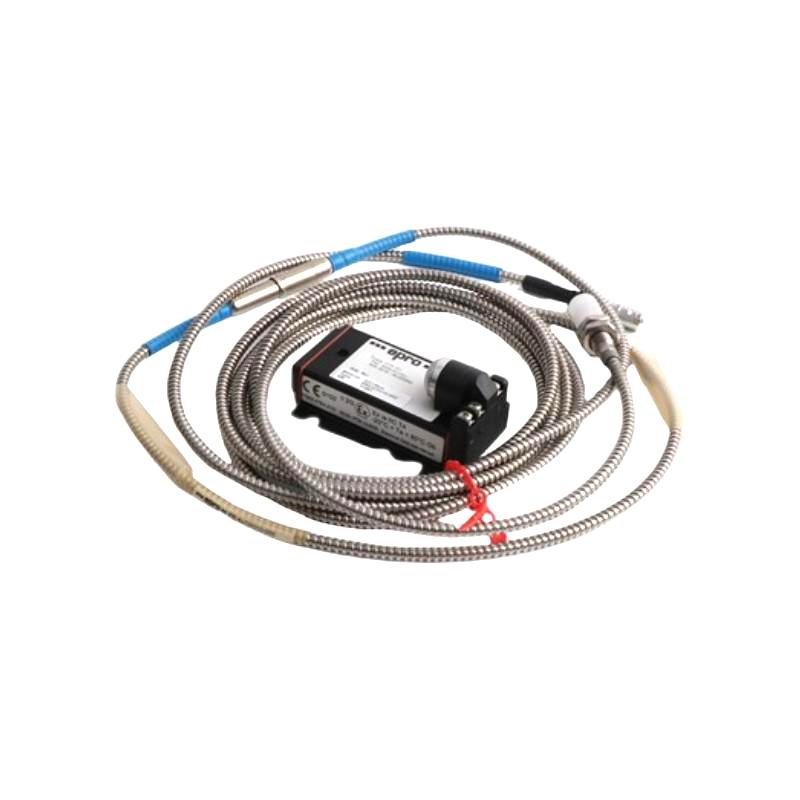

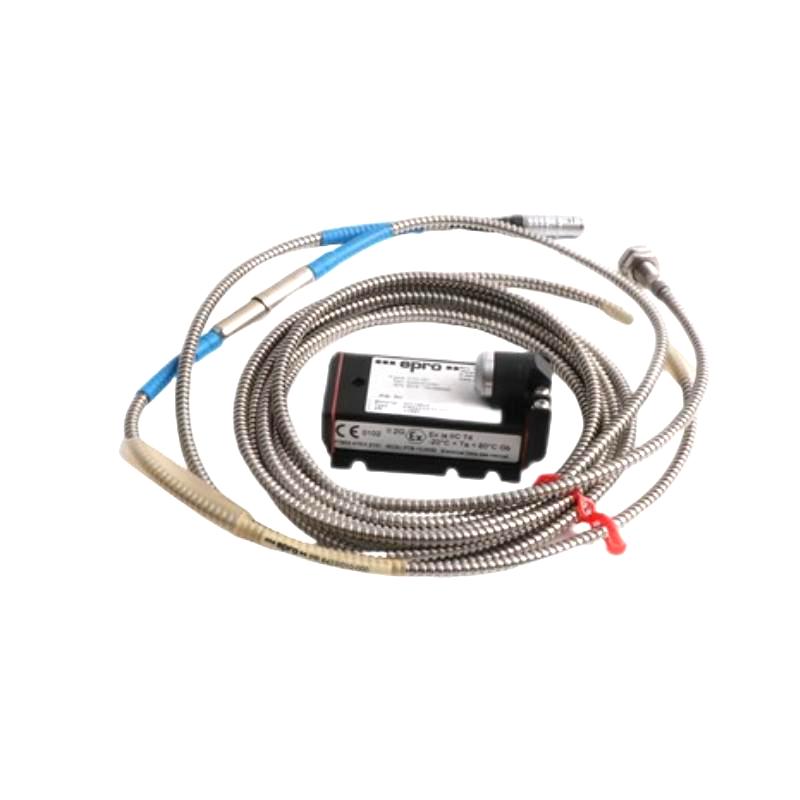

The Epro PR6423/013-030+CON011 combines precision eddy current measurement with a convenient connector module, creating a ready-to-integrate solution for industrial and laboratory applications. The sensor delivers accurate, non-contact displacement and vibration monitoring, while the CON011 module ensures stable signal transfer and easier installation. With a compact 8 mm probe and durable construction, this model is ideal for high-speed machinery diagnostics, predictive maintenance programs, and laboratory experiments requiring high accuracy.

Technical Specifications

Parameter	Specification
Sensor Type	Eddy Current Displacement Sensor
Probe Diameter	8 mm
Model	PR6423/013-030+CON011
Measurement Principle	Electromagnetic induction (eddy current)
Measurement Target	Conductive metallic surfaces
Linearity	±1% full scale
Frequency Response	Up to 20 kHz
Operating Temperature	-40°C to +125°C (-40°F to +257°F)
Weight	0.7 kg (1.54 lb)
Dimensions	8 mm probe diameter × 50 mm length; CON011 module adds 30 mm length

Applications

The PR6423/013-030+CON011 is engineered for high-precision, non-contact measurement tasks in industrial and laboratory environments:

Shaft vibration and displacement monitoring in turbines and motors
High-speed machinery condition monitoring
Automated assembly line position feedback
Predictive maintenance in heavy industrial equipment
Aerospace and automotive dynamic component testing
Laboratory-grade mechanical motion experiments

The included CON011 connector module simplifies installation and ensures reliable signal transmission in complex systems.

Advantages

Enhanced integration with CON011 module for plug-and-play installation
Compact 8 mm probe head for space-constrained applications
Non-contact measurement eliminates mechanical wear and ensures long-term accuracy
High-frequency response suitable for dynamic and high-speed machinery
Robust and durable for harsh industrial environments
Reliable analog output compatible with standard eddy current signal conditioners

Technical FAQs

What does the CON011 module add?
It provides secure electrical connectivity, signal conditioning compatibility, and simplifies system integration.
Can it measure non-metallic surfaces?
No, eddy current sensors require conductive metallic targets.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial and laboratory monitoring.
What is the measurement range?
Typically 0–1 mm, with linearity within ±1% of full scale.
Does it need recalibration after attaching CON011?
No, the sensor and module are factory-calibrated and ready to use.
What is the maximum operating frequency?
Up to 20 kHz, ideal for high-speed rotation monitoring.
How does it perform under vibration?
Designed to maintain accuracy even in high-vibration industrial environments.
Is additional shielding needed for EMI?
The module is shielded, but extreme electromagnetic environments may require additional precautions.
Can multiple sensors with CON011 be installed nearby?
Yes, maintain adequate spacing to avoid electromagnetic interference.
Which industries benefit most from this model?
Power generation, petrochemical, automotive, aerospace, and advanced manufacturing sectors.
