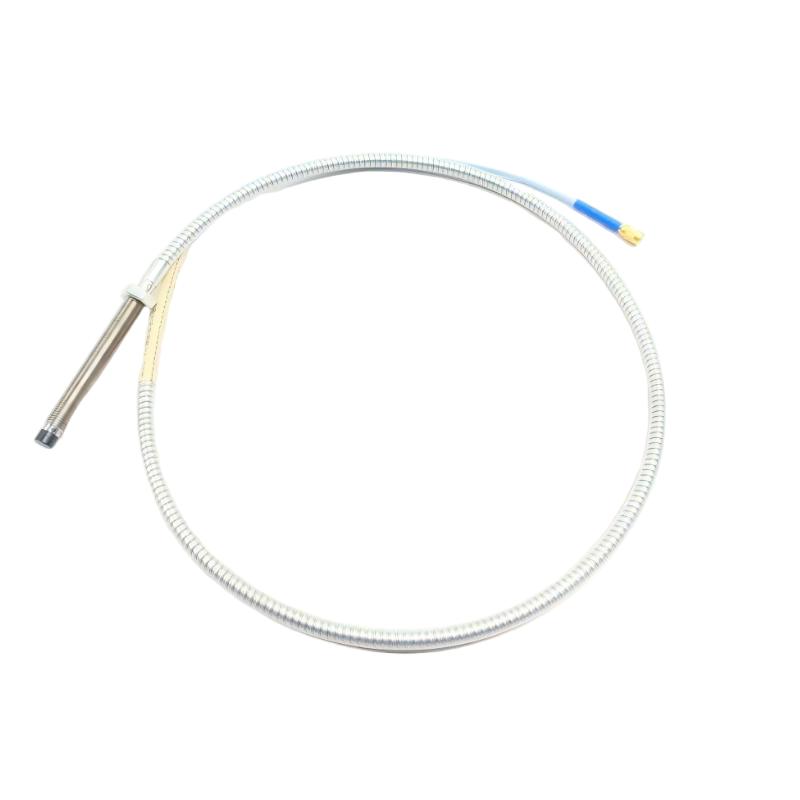

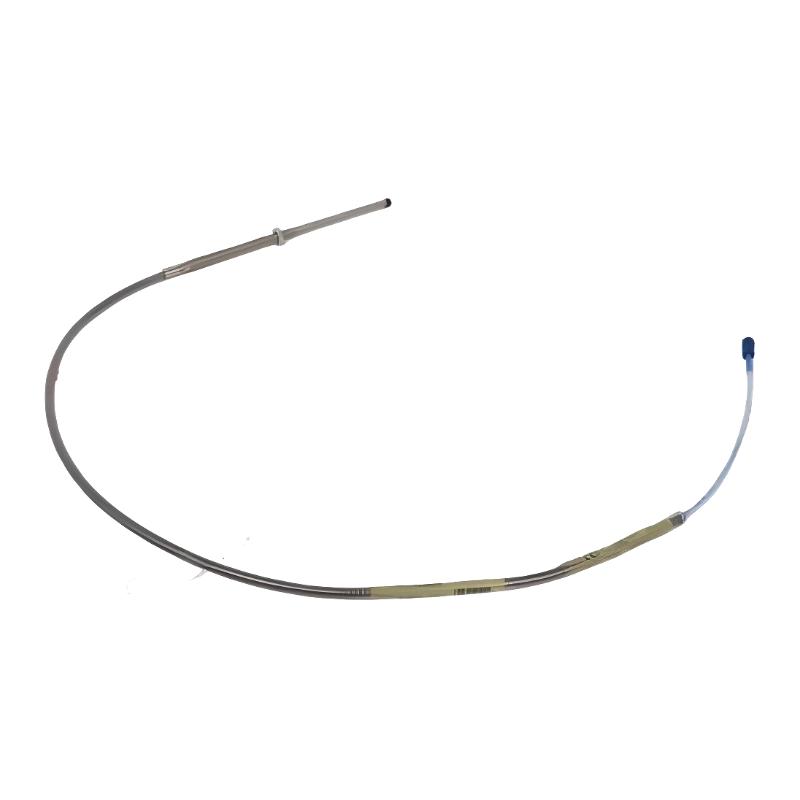

The Bently Nevada 330102-00-90-10-02-00 Proximity Probe is part of the proven 3300 XL 8 mm Proximity Transducer System, designed for continuous, non-contact measurement of shaft vibration, displacement, and axial position. It is widely used in rotating machinery where stability, accuracy, and long-term reliability are essential for safe and efficient operation.
With an extended 9.0-inch case configuration and a 1.0-meter system cable, this probe is suitable for installations requiring deeper mechanical reach while maintaining compatibility with standard Bently Nevada monitoring systems. Its rugged stainless-steel construction ensures dependable performance in harsh industrial environments such as turbines, compressors, and power generation equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-90-10-02-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in (fully threaded) |
| Case Length | 9.0 in |
| System Length | 1.0 m |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Shielded Coaxial Cable |
| Function | Shaft Vibration, Position, Displacement |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Material | Stainless Steel |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Length | 9.0 in (228.6 mm) |
| System Cable Length | 1.0 m |
| Approximate Weight | 0.45–0.75 kg |
| Construction | Stainless Steel |
