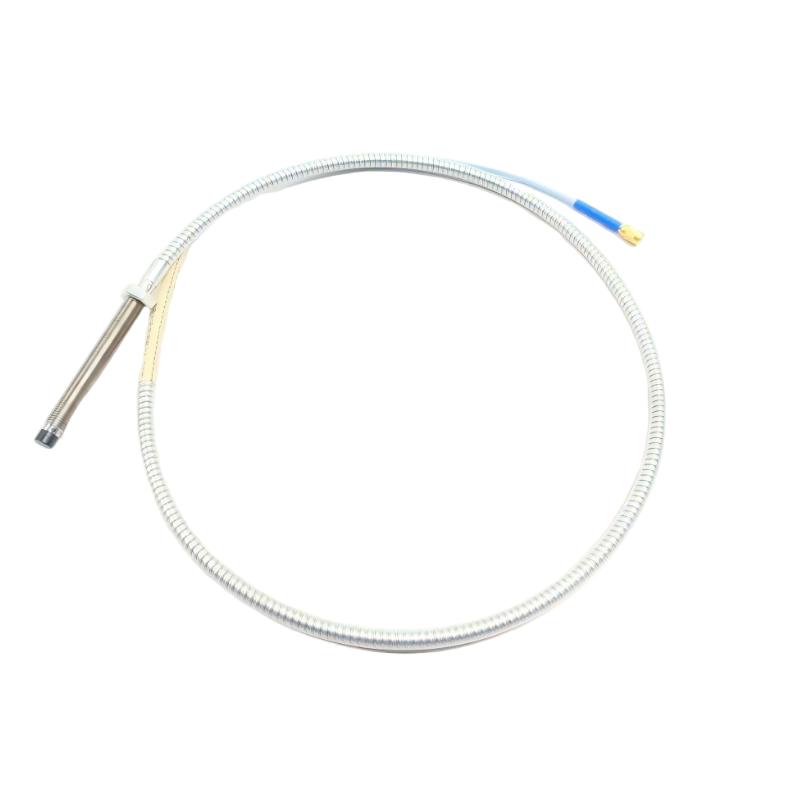

The Bently Nevada 330102-00-96-10-01-00 Proximity Probe is a rugged and reliable component of the widely adopted 3300 XL 8 mm Proximity Transducer System, designed for continuous, non-contact measurement of shaft vibration, axial position, and displacement in rotating machinery.
This configuration is engineered for industrial environments where stability and measurement accuracy are critical. The 9.6-inch case length provides extended mechanical reach, while the 1.0-meter system cable ensures compatibility with standard monitoring setups. It is commonly used in turbines, compressors, pumps, and other high-value rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-96-10-01-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Principle | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in (fully threaded) |
| Case Length | 9.6 in |
| System Length | 1.0 m |
| Connector Type | Miniature ClickLoc Coaxial Connector |
| Cable Type | Shielded Coaxial Cable |
| Function | Shaft Vibration, Position, Displacement |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Material | Stainless Steel |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Length | 9.6 in (243.8 mm) |
| System Cable Length | 1.0 m |
| Approximate Weight | 0.30–0.55 kg |
| Construction | Stainless Steel |
