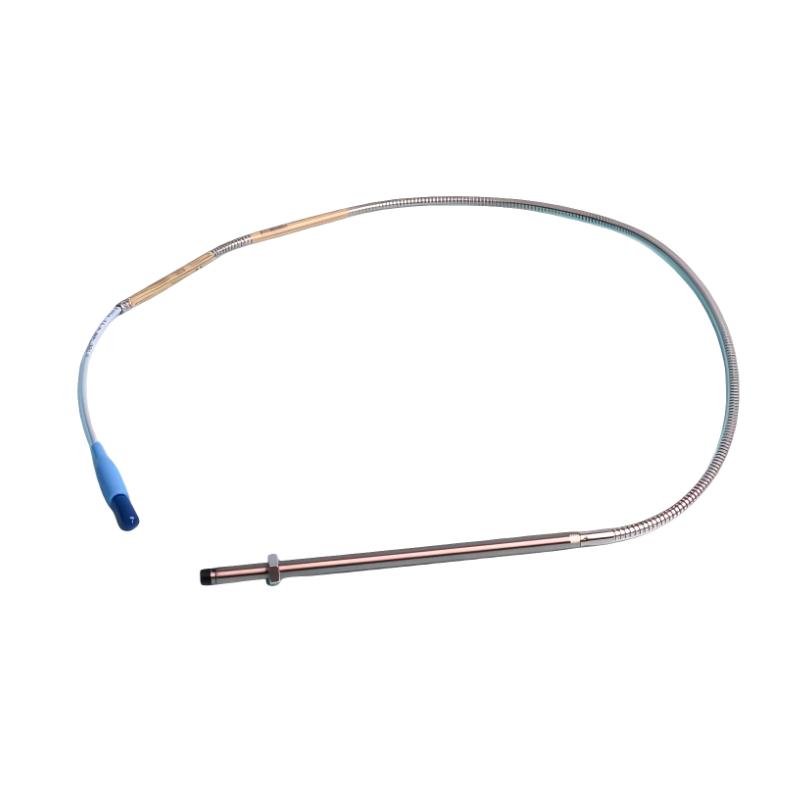

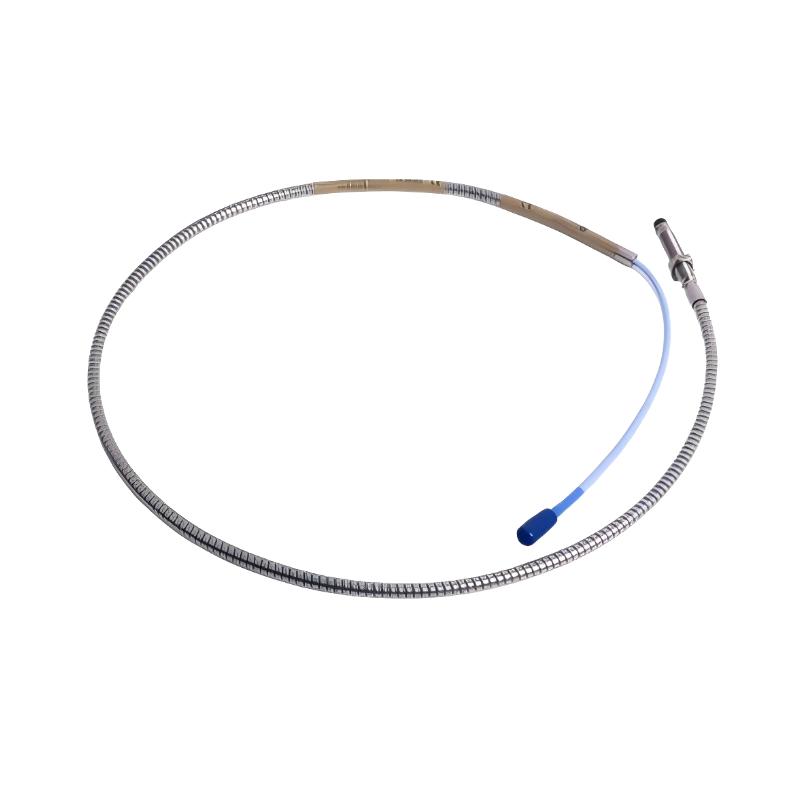

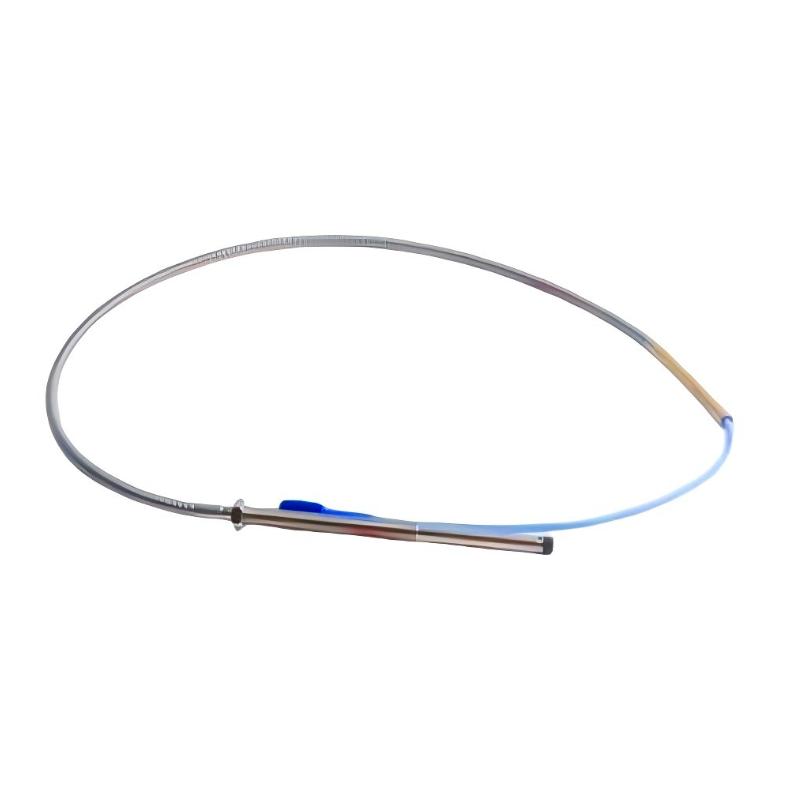

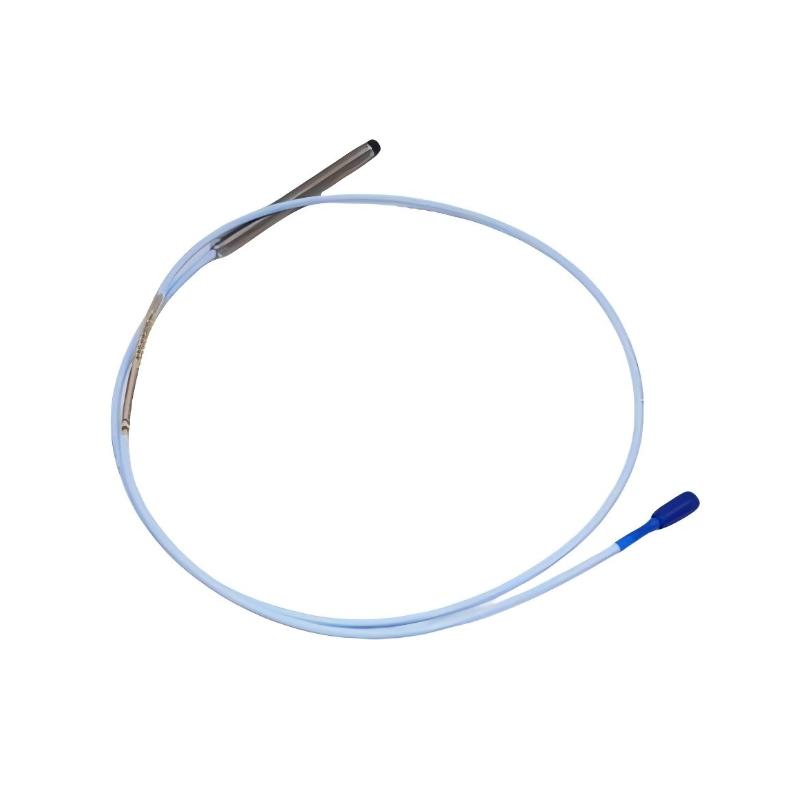

The Bently Nevada 330102-22-58-10-02-00 is part of the 3300 XL 8 mm proximity probe series designed for precise, non-contact measurement of shaft vibration and position in rotating machinery. It is commonly used as part of a complete proximity transducer system together with a Proximitor sensor and extension cable.
This probe is engineered for industrial condition monitoring applications where stable signal output, mechanical durability, and long-term reliability are required. It supports continuous machinery protection strategies in critical rotating equipment across multiple industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-22-58-10-02-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm System |
| Measurement Principle | Eddy Current Non-contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Configuration | Armored Probe Design |
| Connector Type | Miniature coaxial connector (ClickLoc type) |
| System Requirement | Requires compatible Proximitor sensor and extension cable |
| Application | Vibration and position measurement |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Overall Length | Defined by system configuration |
| Net Weight | Approx. 0.3 kg (typical for 3300 XL probe class) |
| Shipping Weight | Approx. 1.0–1.5 kg (packaged system dependent) |
| Packaging Type | Industrial protective carton |
Note: Exact dimensional breakdown of option codes (22 / 58 / 10 / 02 / 00) should be verified using the official Bently Nevada ordering documentation for precise engineering design use.
