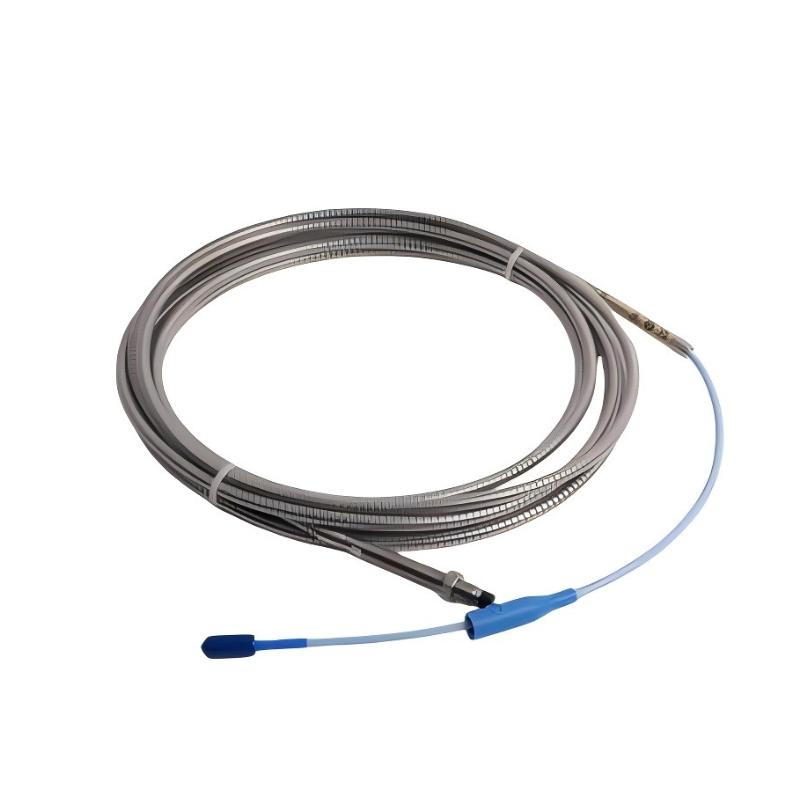

The Bently Nevada 330102-24-48-05-01-RU is part of the 3300 XL 8 mm proximity probe series, designed for precise non-contact measurement of shaft vibration and position in rotating machinery. It is typically used as part of a complete proximity transducer system together with a Proximitor sensor and extension cable.
This model is applied in industrial machinery protection systems where stable signal output, mechanical durability, and long-term reliability are required. The “RU” suffix generally indicates a region-specific configuration or approval variant used for certain market compliance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-24-48-05-01-RU |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm System |
| Measurement Principle | Eddy Current Non-contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction | Armored design |
| Connector Type | Miniature ClickLoc coaxial connector |
| System Configuration | Requires Proximitor sensor + extension cable |
| Application | Vibration, displacement, position monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | Configuration-dependent (code 24) |
| Case Length | Configuration-dependent (code 48) |
| System Length | 0.5 m class configuration (code 05) |
| Net Weight | Approx. 0.32–0.35 kg (probe class estimate) |
| Shipping Weight | Approx. 1.0 kg |
| Packaging Type | Industrial protective carton |
