Brand:Bently Nevada PLC Item No.:3500/22M Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

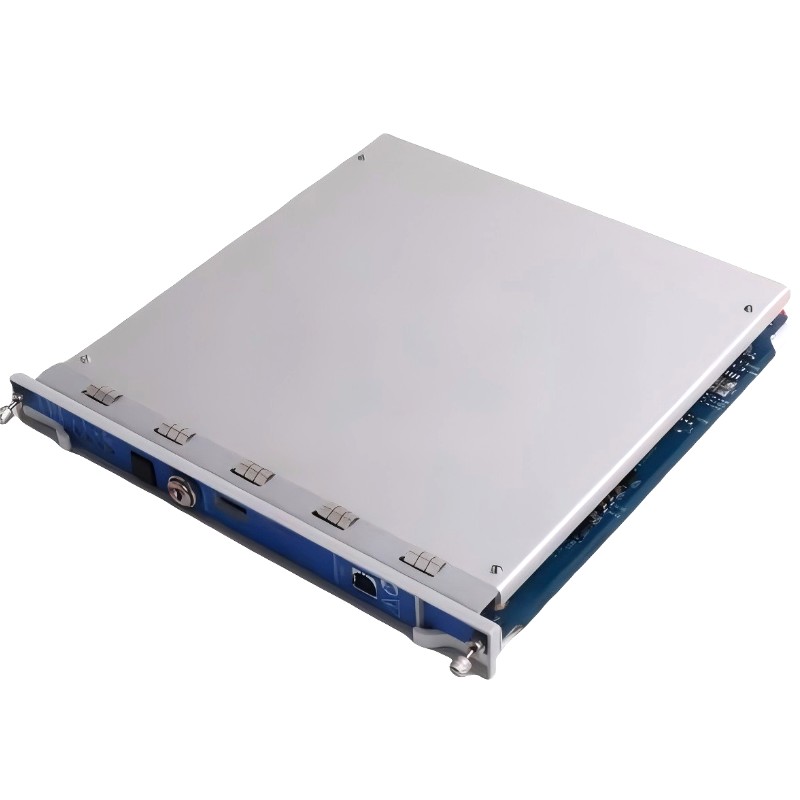

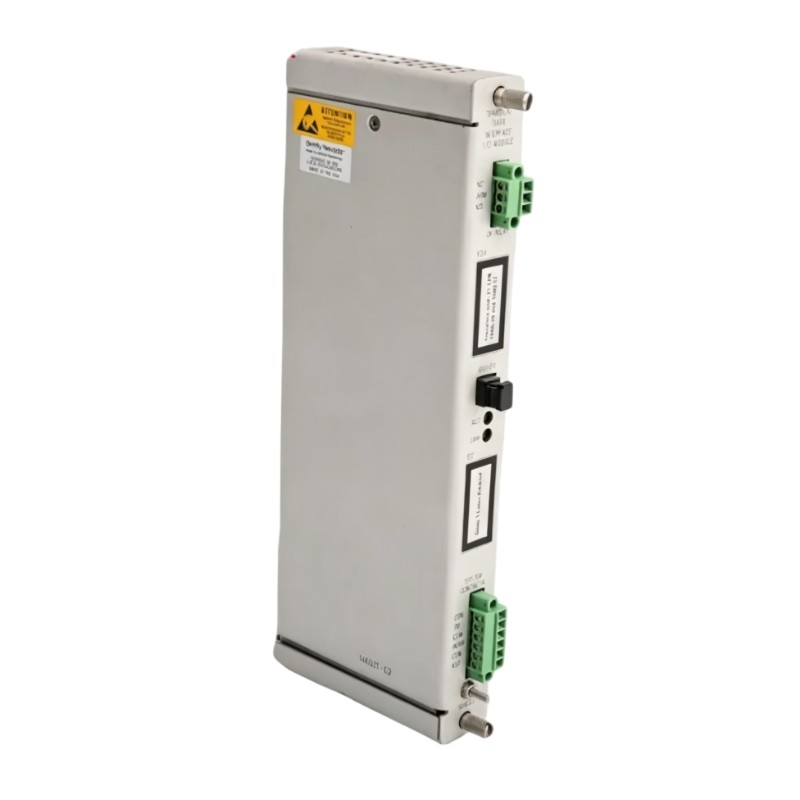

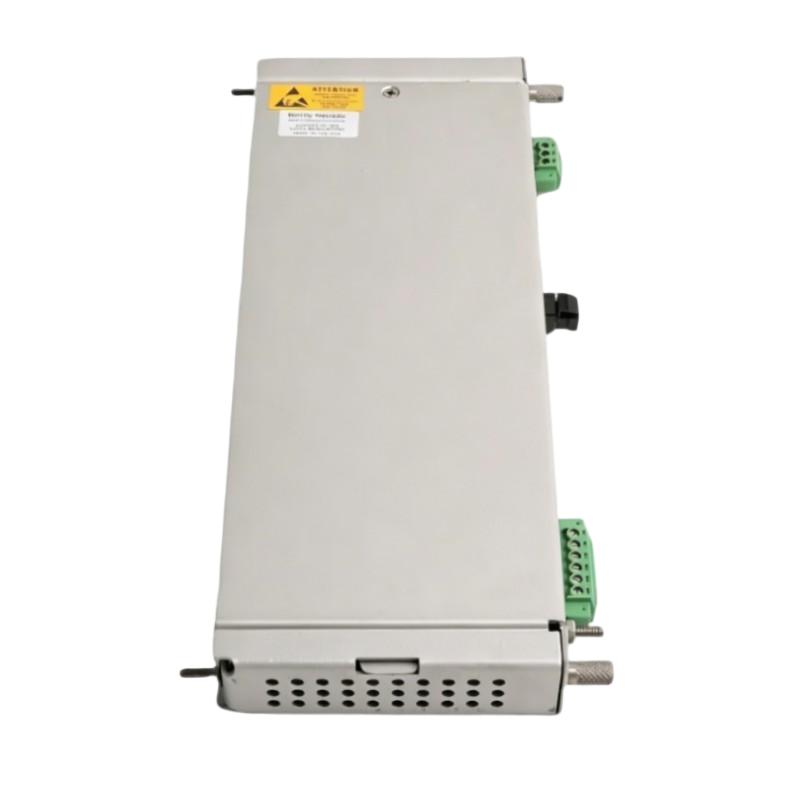

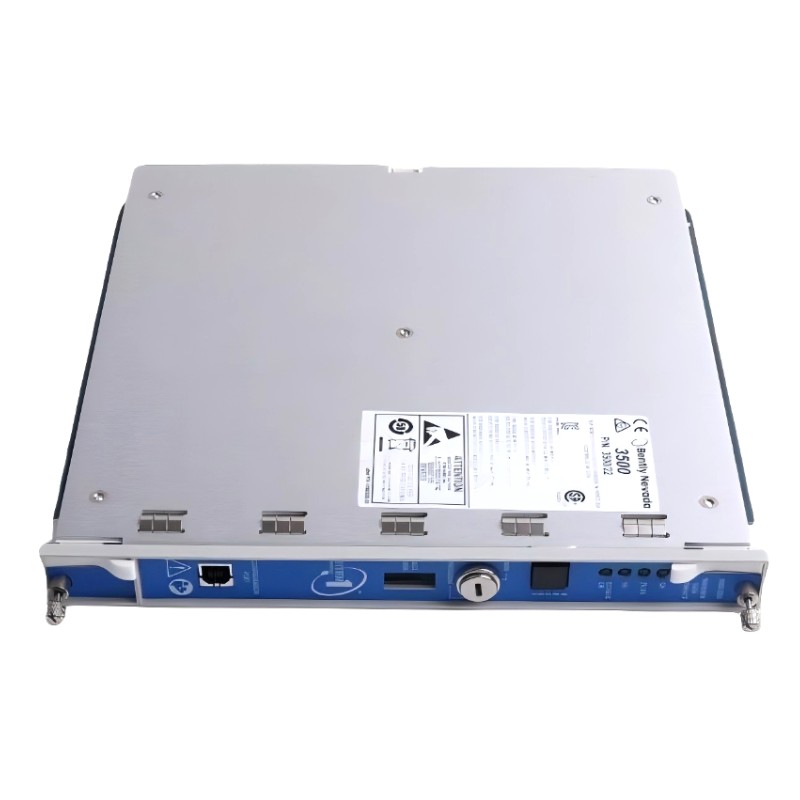

The Bently Nevada 3500/22M 146031-01 + 288055-01 Transient Data Interface Module with I/O Module is a high-performance data acquisition solution designed for advanced machinery monitoring systems. It captures high-speed transient signals that are critical for understanding machine behavior under dynamic operating conditions. Integrated within the 3500 Series platform, it plays a key role in enhancing diagnostic accuracy, improving predictive maintenance capabilities, and ensuring the reliable operation of critical industrial assets.
Technical Specifications
Specification
Details
Manufacturer
Bently Nevada
Product Series
3500 Series
Model Number
3500/22M (146031-01 + 288055-01)
Product Type
Transient Data Interface Module + I/O Module
Function
High-speed transient data acquisition
System Compatibility
3500 Series rack system
Dimensions
241.3 x 24.4 x 241.8 mm
Weight
0.91 kg
Data Type
Dynamic vibration and transient signals
Installation Type
Rack-mounted module
Operating Environment
Industrial machinery monitoring systems
Configuration
Modular (TDI + I/O module)
Recommended Related Models
Model Number
Product Name
3500/40M
Proximitor Monitor Module
3500/42M
Seismic Monitor Module
3500/15-05-05-02
Power Module
330180-90-00
Proximitor Sensor
Popular Related Models
Model Number
Product Name
3500/45
Machinery Protection Module
3500/12-02-01
Monitoring Interface Module
330500-05-00
Velomitor Velocity Sensor
330101-00-43-10-02-CN
Proximity Probe
Applications
• Designed for high-speed transient data acquisition in machinery protection and condition monitoring systems.
• Widely used in turbines, compressors, generators, and critical rotating equipment in power generation and oil & gas industries.
• Suitable for capturing dynamic vibration events, startup/shutdown conditions, and transient machine behavior.
• Ideal for integration into 3500 Series monitoring racks where detailed diagnostic data is required.
Key Advantages
• Enables high-resolution transient data capture for advanced machinery diagnostics.
• Seamless integration with Bently Nevada 3500 Series system architecture.
• Modular design with separate I/O module improves flexibility and system configuration.
• Supports detailed event analysis for predictive maintenance and failure prevention.
Technical FAQs
Q1: What is the main function of the 3500/22M module?
A: It collects and processes transient vibration and machine condition data for analysis and diagnostics.
Q2: What is included in this configuration?
A: It includes the 146031-01 Transient Data Interface Module and the 288055-01 I/O Module.
Q3: What type of data does it capture?
A: It captures high-speed transient and dynamic vibration data during machine operation.
Q4: Where is it typically used?
A: It is used in turbines, compressors, generators, and other critical rotating machinery.
Q5: Is it part of a larger system?
A: Yes, it is part of the Bently Nevada 3500 Series machinery protection platform.
Q6: Can it be used for predictive maintenance?
A: Yes, it provides detailed diagnostic data that supports predictive maintenance strategies.
Q7: Does it operate independently?
A: No, it requires integration within a 3500 Series rack system.
Q8: What kind of monitoring does it support?
A: It supports transient event monitoring and vibration analysis.
Q9: Is it suitable for continuous monitoring?
A: Yes, it is designed for continuous industrial operation within monitoring systems.
Q10: What is the benefit of transient data analysis?
A: It helps identify abnormal machine behavior during start-up, shutdown, and load changes.
