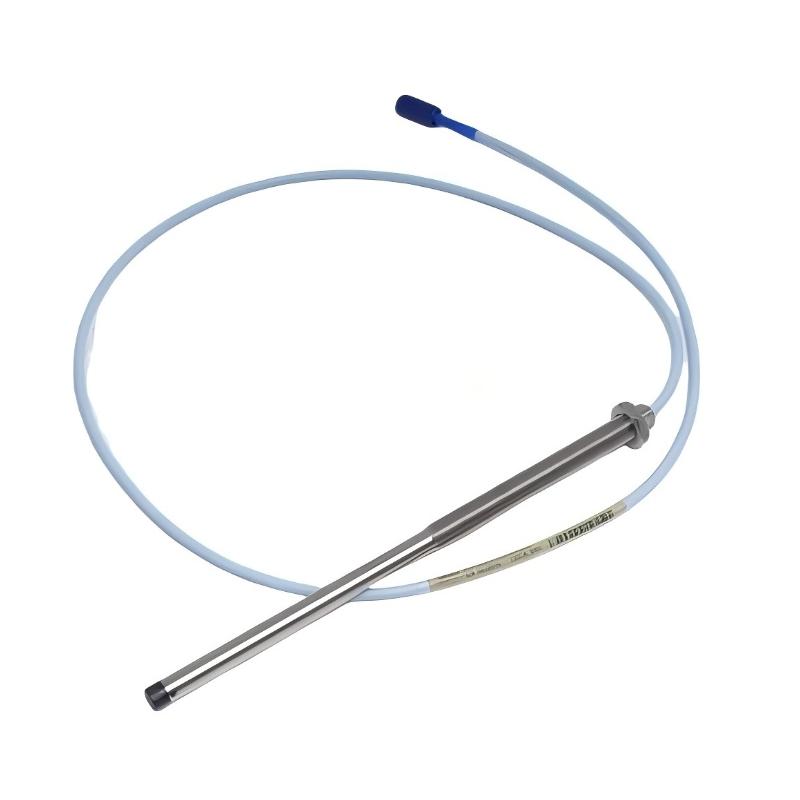

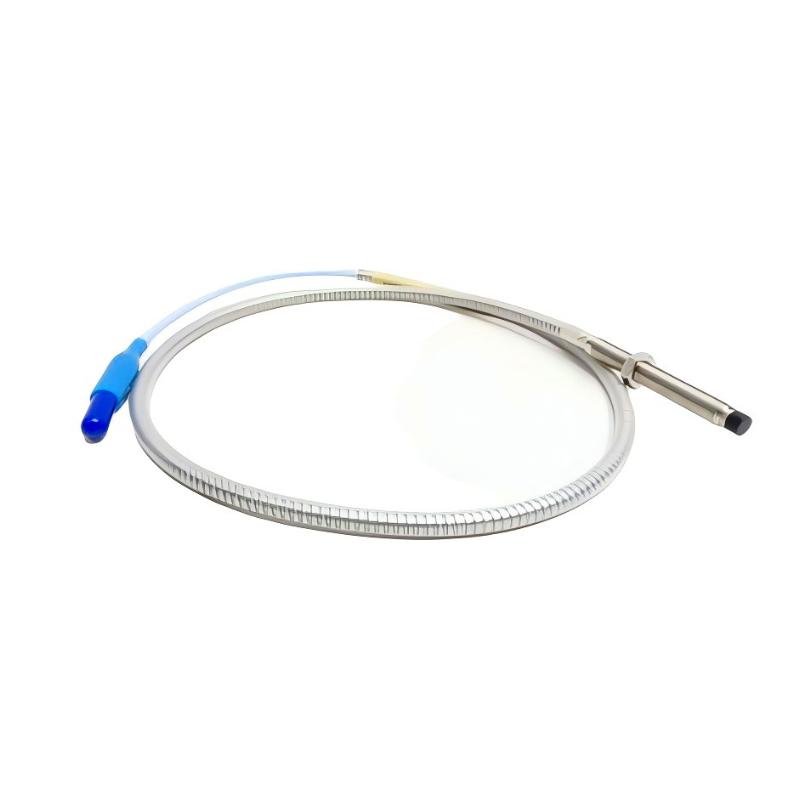

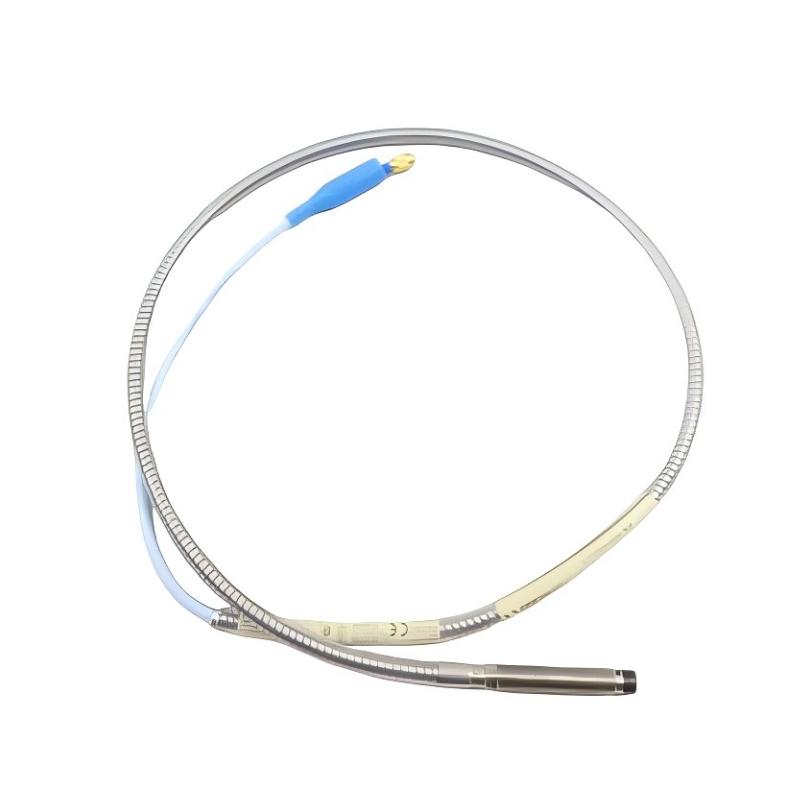

The Bently Nevada 330102-25-40-10-02-05 is a member of the 3300 XL 8 mm proximity probe system, designed for non-contact measurement of shaft vibration and position in rotating machinery. It is used as part of a complete transducer chain with a Proximitor sensor and extension cable, enabling continuous monitoring of critical rotating assets.
This model is engineered for industrial environments where measurement stability, mechanical strength, and long-term operational reliability are essential. It is widely applied in turbines, compressors, pumps, and other heavy rotating equipment used in energy and process industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-25-40-10-02-05 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm System |
| Measurement Principle | Eddy Current Non-contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Probe Construction | Armored design |
| Connector Type | Miniature ClickLoc coaxial connector |
| System Requirement | Requires Proximitor sensor + extension cable |
| Application | Vibration, displacement, position monitoring |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | Configuration-dependent (code 25) |
| Case Length | Configuration-dependent (code 40) |
| System Length | 1.0 m class configuration |
| Net Weight | Approx. 0.30–0.35 kg (probe class estimate) |
| Shipping Weight | Approx. 1.0–1.5 kg |
| Packaging Type | Industrial protective carton |
Note: The meanings of option codes (25 / 40 / 10 / 02 / 05) should be verified against official Bently Nevada ordering documentation for engineering-level interpretation. Length values are configuration-based and not independently confirmed here.
