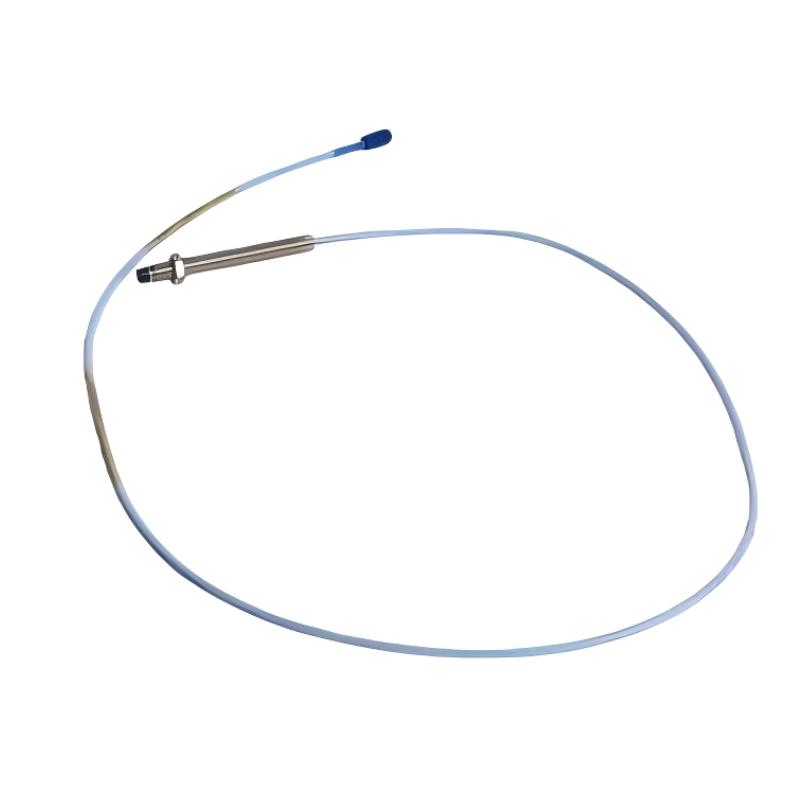

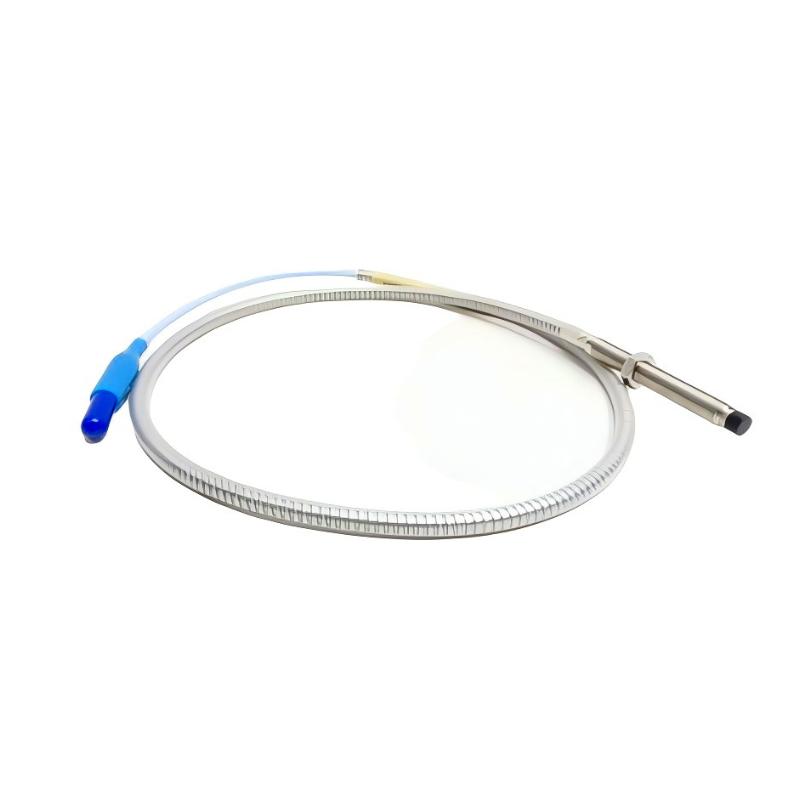

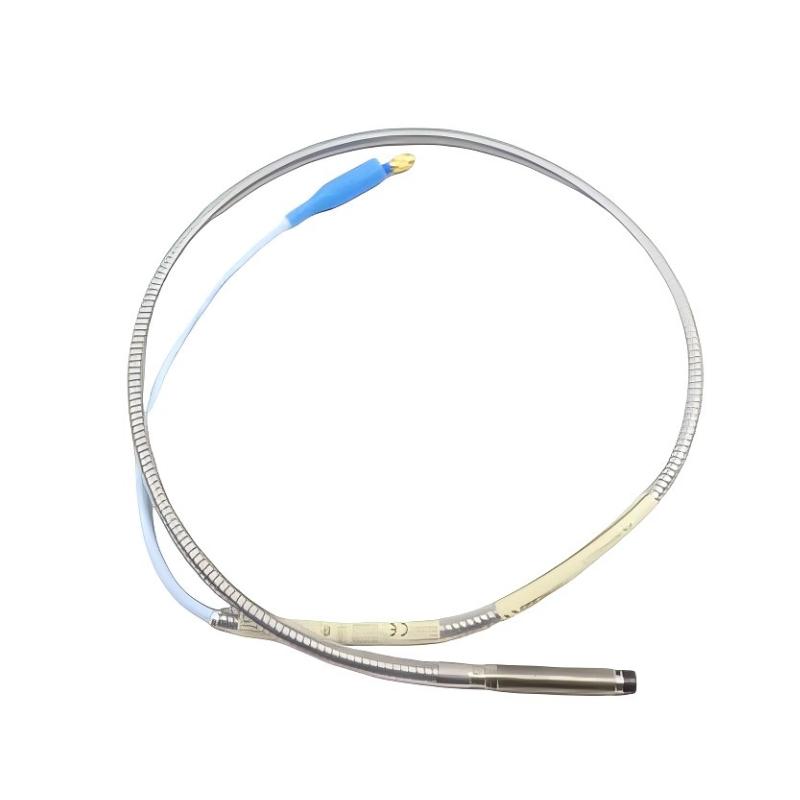

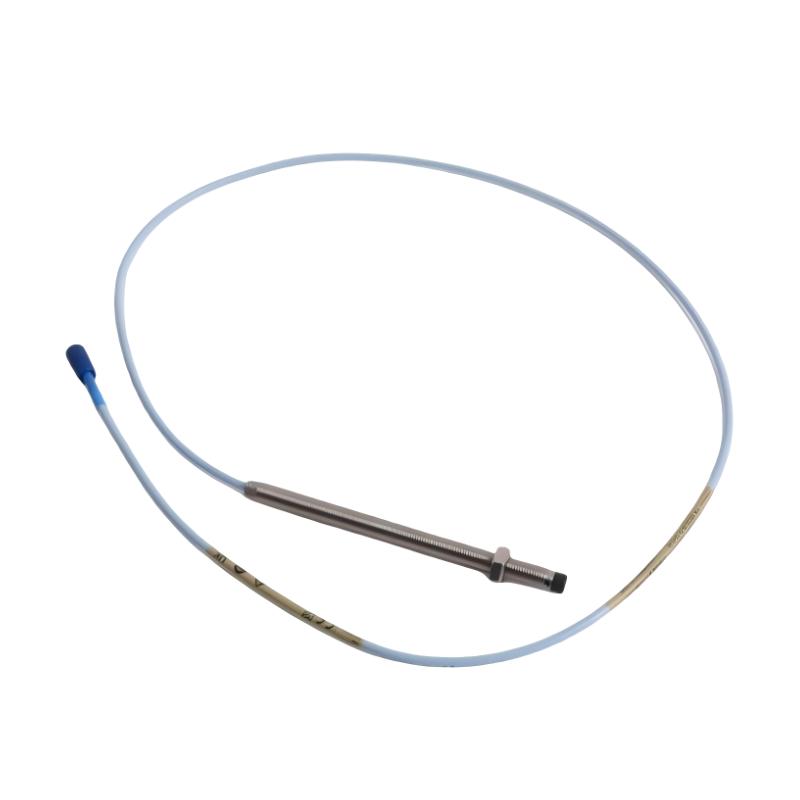

330102-34 330102-33 330102-35 330102-36

The Bently Nevada 330102-40-12-90-02-05 is part of the 3300 XL 8 mm proximity probe series, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.

It is used as a component of a complete proximity transducer system together with a Proximitor sensor and extension cable. This model is commonly applied in machinery condition monitoring and protection systems where stable signal performance and long-term reliability are required.

The “90” configuration code typically indicates a special or extended system configuration variant within the ordering structure, depending on installation or application requirements.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model Number	330102-40-12-90-02-05
Product Type	Proximity Probe
Series	3300 XL 8 mm System
Measurement Principle	Eddy Current Non-contact Sensing
Probe Diameter	8 mm
Thread Type	3/8-24 UNF
Probe Construction	Armored design
Connector Type	Miniature ClickLoc coaxial connector
System Requirement	Requires Proximitor sensor + extension cable
Application	Vibration, displacement, position monitoring

Dimensions & Weight

Item	Specification
Probe Diameter	8 mm
Unthreaded Length	4.0 in (code 40)
Case Length	1.2 in (code 12)
Configuration Variant	Code “90” (special ordering configuration)
Net Weight	Approx. 0.30–0.35 kg
Shipping Weight	Approx. 1.0–1.5 kg
Packaging Type	Industrial protective carton

Recommended Related Models

Bently Nevada 330102-38-82-10-02-05
Bently Nevada 330102-36-50-10-02-05
Bently Nevada 330102-35-62-05-11
Bently Nevada 330102-30-65-10-02-00
Bently Nevada 330102-24-72-10-02-00
Bently Nevada 330102-22-58-10-02-00
Bently Nevada 330130 Extension Cable
Bently Nevada 330180 Proximitor Sensor
Bently Nevada 3500/40M Monitor Module
Bently Nevada 3500/42M Vibration Module

Popular Bently Nevada Models

3500/15 Power Supply Module
3500/22M Communication Gateway Module
3500/25 Keyphasor Module
3500/40M Proximitor Monitor Module
3500/42M Shaft Vibration Monitor Module
3500/44M Machinery Protection Module
330180 Proximitor Sensor
330130 Extension Cable
3300 XL 8 mm Probe Series
991 Vibration Transmitter

Applications

The 330102-40-12-90-02-05 probe is used in rotating machinery monitoring systems across industrial sectors such as:

Gas turbines
Steam turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Gearbox systems
Petrochemical facilities
Oil and gas processing plants
Power generation stations

It is commonly integrated into machinery protection systems for continuous condition monitoring and early fault detection.

Advantages

Non-contact eddy current measurement technology
Stable and reliable signal output
Rugged armored probe construction
Suitable for continuous industrial operation
Compatible with Bently Nevada 3300 XL system architecture
Supports predictive maintenance strategies
Long operational service life
Widely used in critical rotating machinery monitoring systems

Technical FAQs

1. What is the primary function of this probe?

It measures shaft vibration, displacement, and position without physical contact.

2. What system is it compatible with?

It is designed for the Bently Nevada 3300 XL proximity transducer system.

3. Does it operate alone?

No, it must be used with a Proximitor sensor and extension cable.

4. What sensing technology does it use?

It uses eddy current non-contact measurement technology.

5. Is it suitable for continuous operation?

Yes, it is designed for permanent installation in industrial monitoring systems.

6. What industries commonly use it?

Power generation, oil and gas, petrochemical, marine, and heavy industry.

7. What does the “40” code represent?

It indicates a 4.0-inch unthreaded probe configuration.

8. What does the “12” code represent?

It indicates a 1.2-inch case length configuration.

9. What does the “90” code represent?

It represents a special configuration variant within the ordering structure and should be verified via official ordering documentation for precise interpretation.
