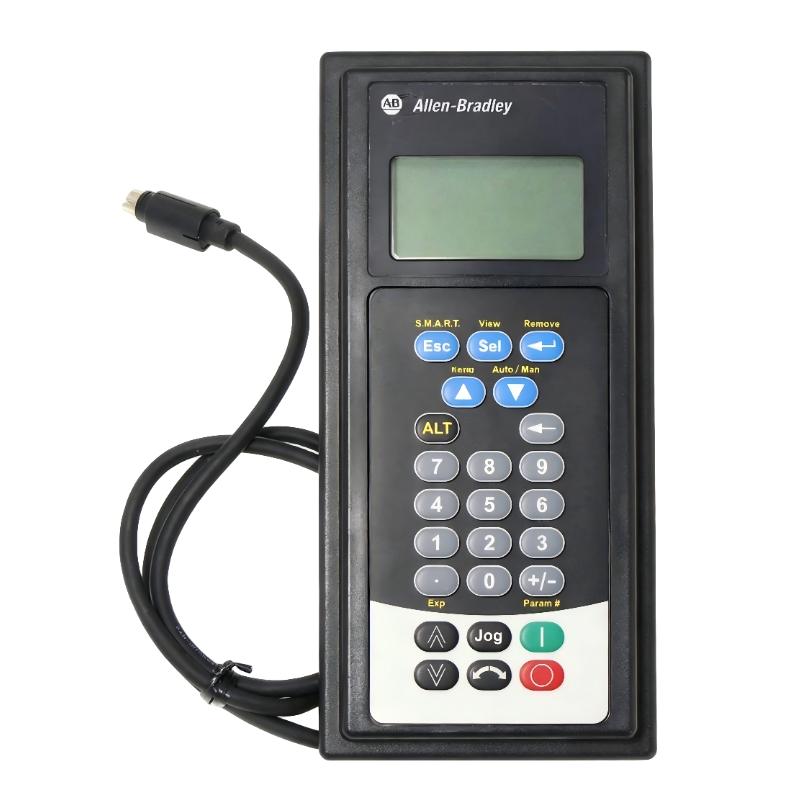

Allen Bradley 20-HIM-C3 PowerFlex Human-Machine Interface Module
Allen Bradley 20-HIM-C3 PowerFlex Human-Machine Interface Module
0.0
Points
Brand:Allen Bradley PLC Item No.:20-HIM-C3 Product Origin:USA Product Dimensions:180 x 25 x 93 mm Product Weight:0.173 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20-HIM-C3 PowerFlex Human-Machine Interface Module is designed to provide direct, on-device access to PowerFlex drive systems. It allows operators and maintenance engineers to configure parameters, monitor real-time performance, and diagnose faults without external programming tools. Built for industrial control environments, it enhances operational efficiency by simplifying drive interaction and reducing downtime during setup and troubleshooting. Its compact structure and intuitive interface make it a practical solution for both new installations and system upgrades.
Technical Specifications
Parameter
Specification
Product Type
Human-Machine Interface Module (HIM)
Series
PowerFlex 700 Class
Model Number
20-HIM-C3
Display Type
LCD
Function
Drive Configuration & Monitoring
Communication Interface
Drive Peripheral Interface (DPI)
Power Supply
Via host drive
Operating Environment
Industrial automation systems
Installation
Panel/drive mounted module
Weight
0.173 kg
Dimensions
180 × 25 × 93 mm
Recommended Related Models
Model Number
Product Name
20-HIM-A3
PowerFlex Basic Human Interface Module
20-HIM-C3S
PowerFlex Remote Panel Mount HIM
20-HIM-A6
PowerFlex Advanced Local HIM Module
20-HIM-C6S
PowerFlex Enhanced Remote HIM Module
Popular Related Models
Model Number
Product Name
20-HIM-A3
PowerFlex LCD Operator Interface Module
20-HIM-A5
PowerFlex Advanced Operator Interface Module
20-HIM-C6S
PowerFlex Remote Mount Enhanced HIM
20-HIM-A6
PowerFlex Full Function Drive HIM Module
Applications
• PowerFlex Drive Parameter Configuration
Enables local setup, tuning, and monitoring of PowerFlex AC drives in industrial systems.
• Motor Speed Control Operations
Provides operator-level control for adjusting motor speed and drive behavior.
• Industrial Automation Panels
Commonly installed in control cabinets for real-time drive interaction.
• Maintenance and Diagnostics
Supports troubleshooting, fault viewing, and system status checks on-site.
• OEM Machine Control Interfaces
Used by machine builders for integrating user-friendly drive access.
• Process Control Systems
Assists operators in managing process-driven motor applications.
• Retrofitting and Upgrade Projects
Suitable for replacing older HIM modules in existing PowerFlex systems.
• Factory Production Lines
Used in continuous manufacturing environments requiring quick drive access.
Key Advantages
• Direct Drive Access Interface
Allows operators to interact with PowerFlex drives without external programming tools.
• Simple Installation Design
Quick mounting and connection into compatible PowerFlex systems.
• Clear LCD Display
Provides readable parameter data, status messages, and diagnostics.
• Industrial-Grade Reliability
Designed for stable operation in demanding electrical environments.
• Fast Troubleshooting Capability
Enables quick identification of drive faults and operational issues.
• Compact Panel Integration
Fits easily into control panel layouts without occupying excessive space.
• Compatible with PowerFlex Drive Architecture
Ensures seamless communication with supported drive families.
Technical FAQs
1. What is the main function of the 20-HIM-C3 module?
It provides a local human-machine interface for configuring and monitoring PowerFlex AC drives.
2. Which drive systems is this HIM compatible with?
It is designed for use with Allen-Bradley PowerFlex drive platforms, particularly PowerFlex 700 series systems.
3. Does it require external power supply?
No, it is powered directly through the connected drive communication interface.
4. Can it display fault codes and diagnostics?
Yes, it provides real-time fault messages and system status information.
5. Is it suitable for field installation on existing systems?
Yes, it is commonly used for both OEM builds and retrofit applications.
6. Does it support parameter editing on the drive?
Yes, users can view and adjust drive parameters directly through the interface.
7. What type of display does it use?
It uses a monochrome LCD screen for status and configuration display.
8. Can it be removed while the drive is powered?
Removal practices depend on system configuration and safety procedures; follow industrial safety standards.
9. Does it support multiple language interfaces?
Yes, PowerFlex HIM modules typically support multiple languages depending on firmware.
10. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial control panel environments with electrical noise considerations.
