Brand:Allen Bradley PLC Item No.:22F-D4P2N103 Product Origin:USA Product Dimensions:174 x 72 x 136 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

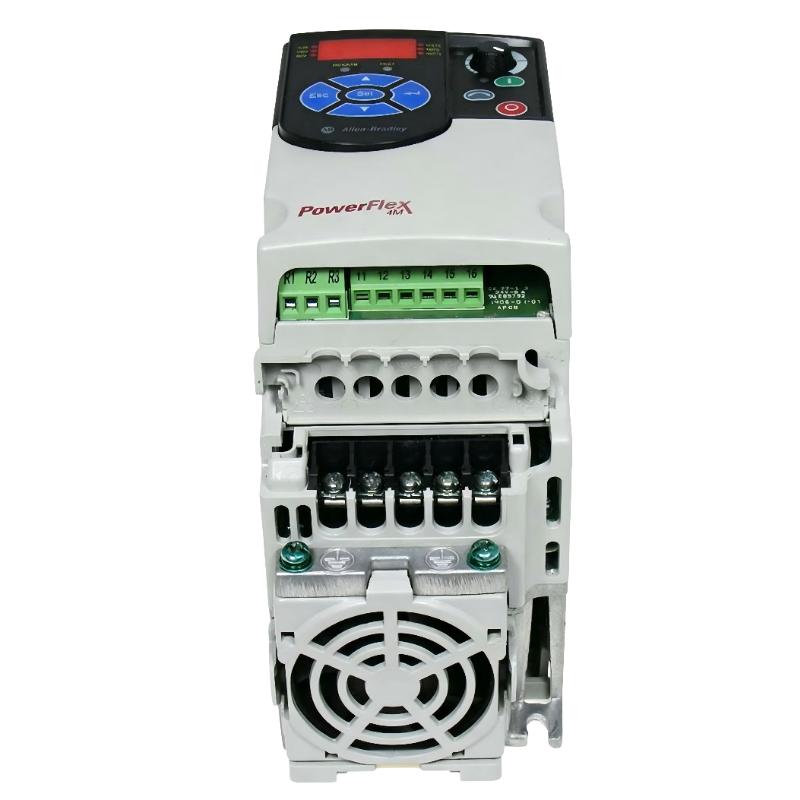

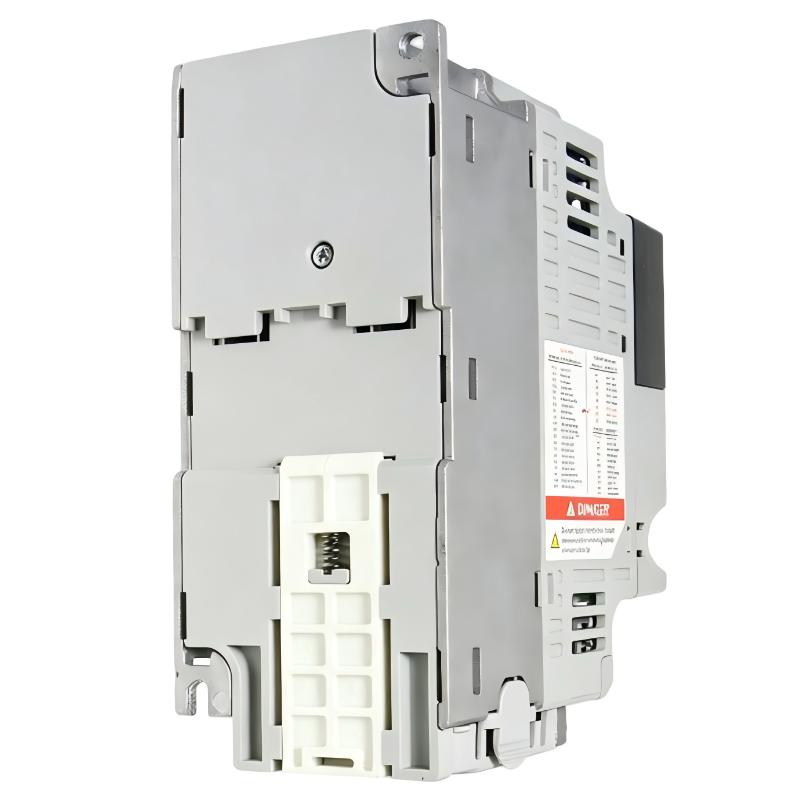

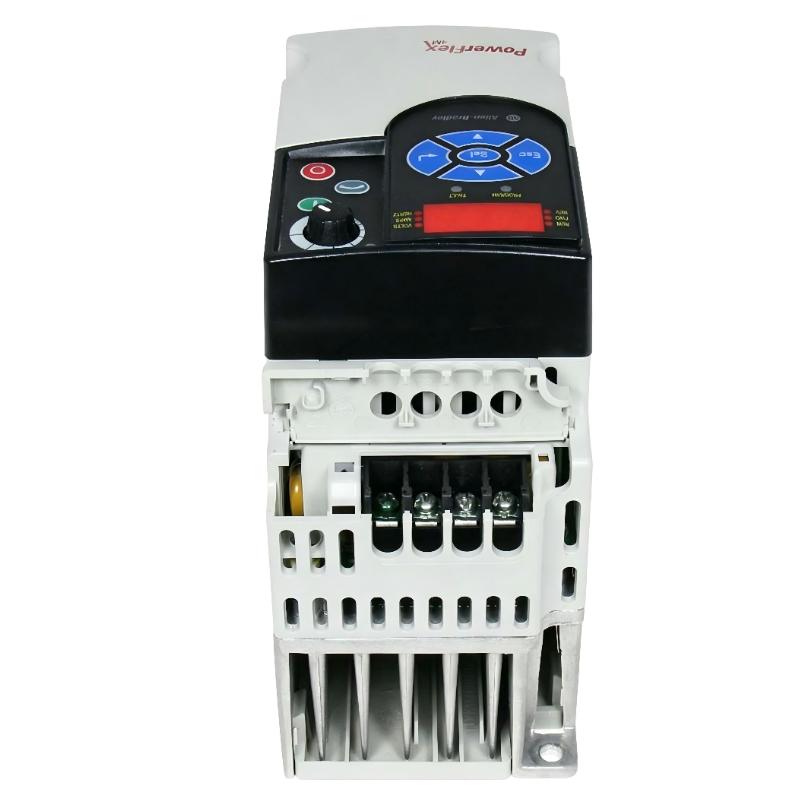

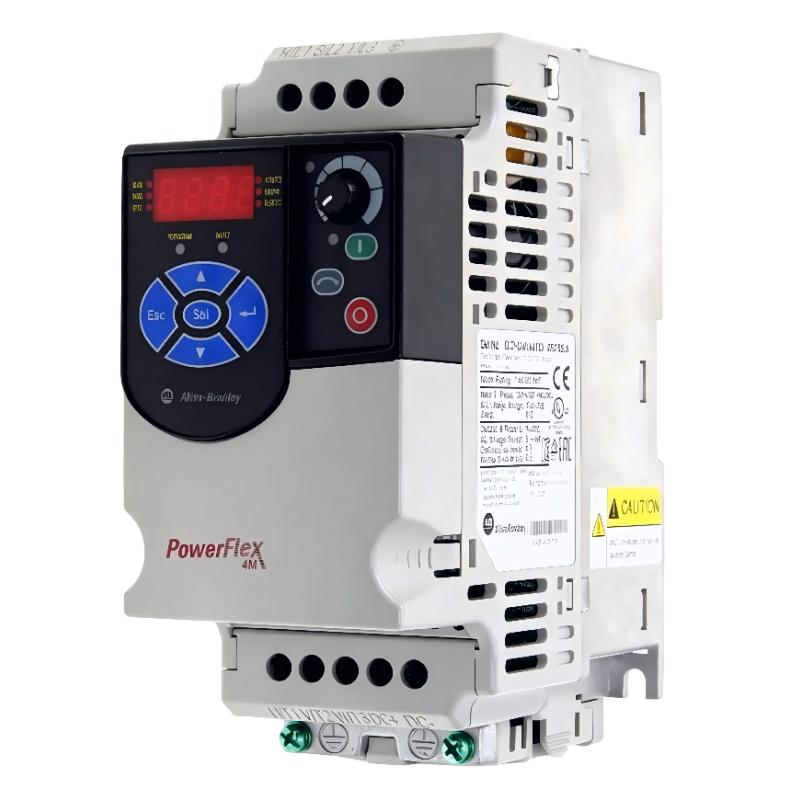

The Allen Bradley 22F-D4P2N103 PowerFlex 4M AC Drive is a compact and economical variable frequency drive designed for simple motor speed control applications. It provides stable V/Hz performance, easy keypad-based configuration, and reliable operation for pumps, fans, conveyors, and light industrial machinery. With its space-saving design and straightforward setup, it is widely used in OEM equipment and general automation systems where cost efficiency and simplicity are key priorities.
Technical Specifications
Parameter
Specification
Product Type
AC Drive (VFD)
Series
PowerFlex 4M
Model Number
22F-D4P2N103
Input Voltage
380–480V AC
Phase
3-Phase
Output Current
4.2 A
Output Power
1.5 kW (2 HP)
Control Method
V/Hz Control
Communication
RS-485 (Modbus RTU)
Protection Rating
IP20
Dimensions
174 × 72 × 136 mm
Weight
1.6 kg
Recommended Related Models
Model Number
Product Name
22F-D2P5N103
PowerFlex 4M AC Drive, 0.75 kW
22F-D3P7N103
PowerFlex 4M AC Drive, 1.1 kW
22F-D5P0N103
PowerFlex 4M AC Drive, 2.2 kW
22F-D6P0N103
PowerFlex 4M AC Drive, 3.0 kW
Popular Related Models
Model Number
Product Name
22F-D1P5N103
PowerFlex 4M AC Drive, 0.4 kW
22F-D2P2N103
PowerFlex 4M AC Drive, 0.75 kW
22F-D7P5N103
PowerFlex 4M AC Drive, 4.0 kW
22F-D022N103
PowerFlex 4M AC Drive, 5.5 kW
Applications
• Small to Medium Conveyor Systems
Provides reliable motor speed control for light industrial conveyor lines.
• Pump Control Systems
Used in water supply, HVAC circulation, and process pump applications.
• Fan and Blower Control
Optimizes airflow systems in ventilation and cooling equipment.
• Light Manufacturing Machines
Suitable for simple automation tasks in production equipment.
• OEM Equipment Integration
Common choice for machine builders requiring compact VFD solutions.
• HVAC Systems
Supports efficient motor control in building automation systems.
• General Industrial Automation
Used widely in cost-sensitive control applications requiring basic drive functionality.
Key Advantages
• Compact and Space-Saving Design
Ideal for small control panels and tight installation environments.
• Simple Parameter Setup
Easy configuration reduces commissioning time and engineering effort.
• Reliable Motor Speed Control
Delivers stable V/Hz control for general-purpose applications.
• Cost-Effective Drive Solution
Provides essential functionality at a competitive price point.
• Integrated Keypad Interface
Allows direct local control and parameter adjustment.
• Industrial-Grade Build Quality
Designed for long-term operation in standard industrial environments.
• Flexible Installation Options
Suitable for panel mounting with straightforward wiring design.
• Low Maintenance Requirement
Built for stable operation with minimal servicing needs.
Technical FAQs
1. What type of applications is the PowerFlex 4M suitable for?
It is designed for general-purpose applications such as pumps, fans, conveyors, and light machinery.
2. Does this drive support Ethernet communication?
No, the PowerFlex 4M typically uses RS-485 communication (Modbus RTU), not EtherNet/IP.
3. What control method does this drive use?
It uses V/Hz (voltage/frequency) control for simple motor speed regulation.
4. Can this drive handle heavy-duty servo applications?
No, it is intended for basic AC motor control, not precision servo motion systems.
5. Does it include a built-in display?
Yes, it features an integrated LED or LCD keypad depending on configuration.
6. Is it suitable for three-phase power systems?
Yes, it operates on 380–480V three-phase input power.
7. Can it be used in HVAC systems?
Yes, it is commonly used in HVAC fan and pump control applications.
8. Does it support braking functionality?
It does not include advanced braking options in standard configurations.
9. Is programming required for basic operation?
Minimal setup is needed; most applications can be configured via keypad parameters.
10. Is it suitable for harsh industrial environments?
It is designed for standard industrial control cabinets with IP20 protection.
