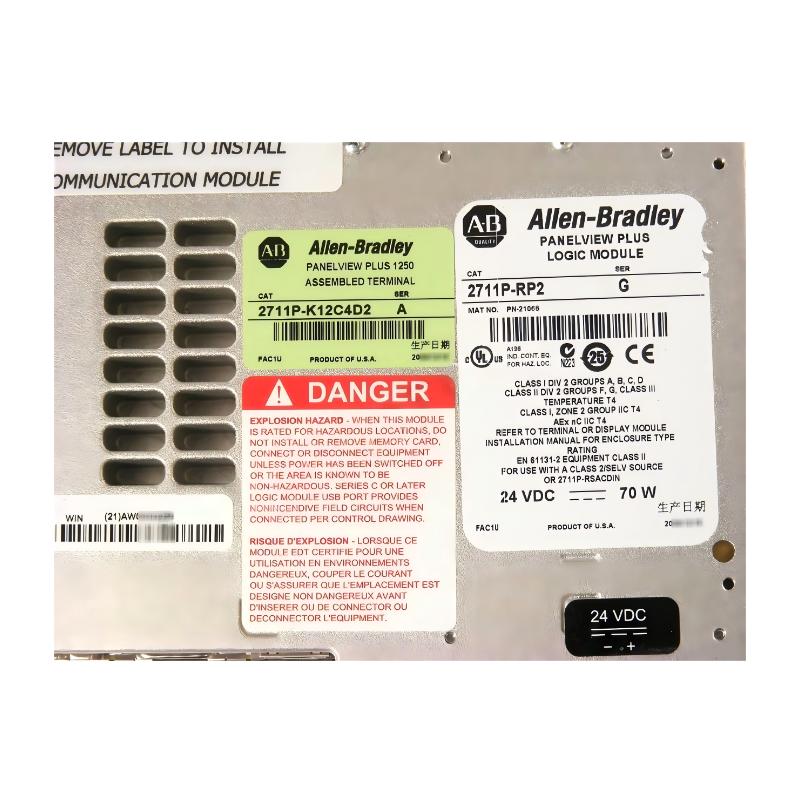

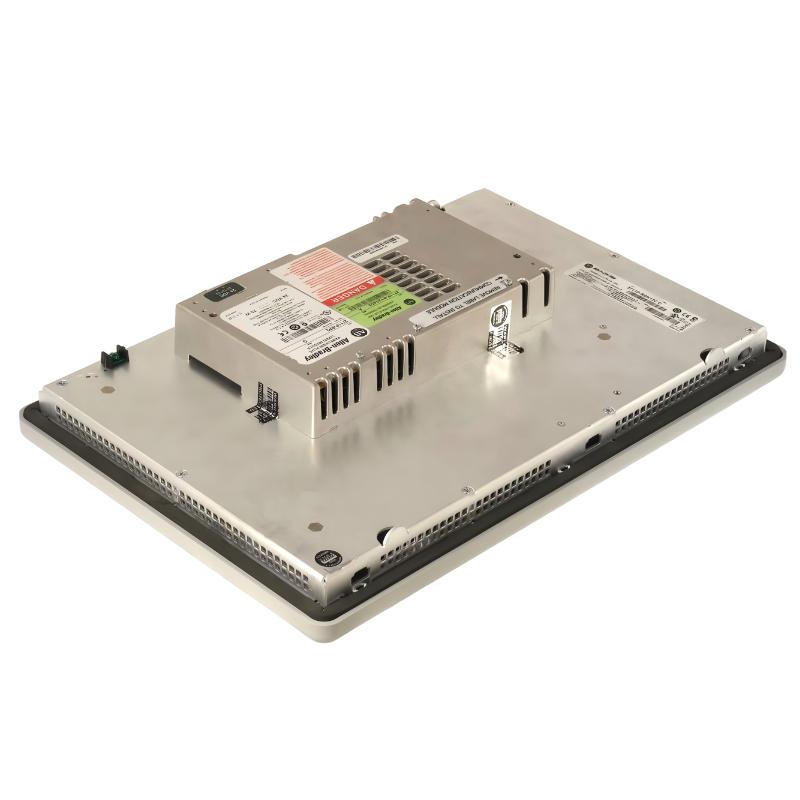

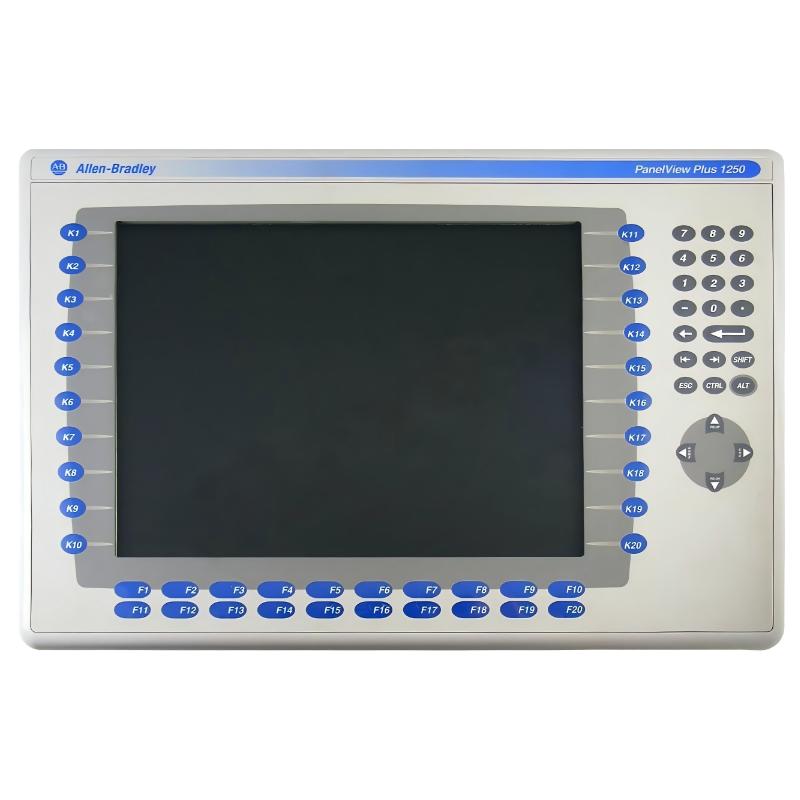

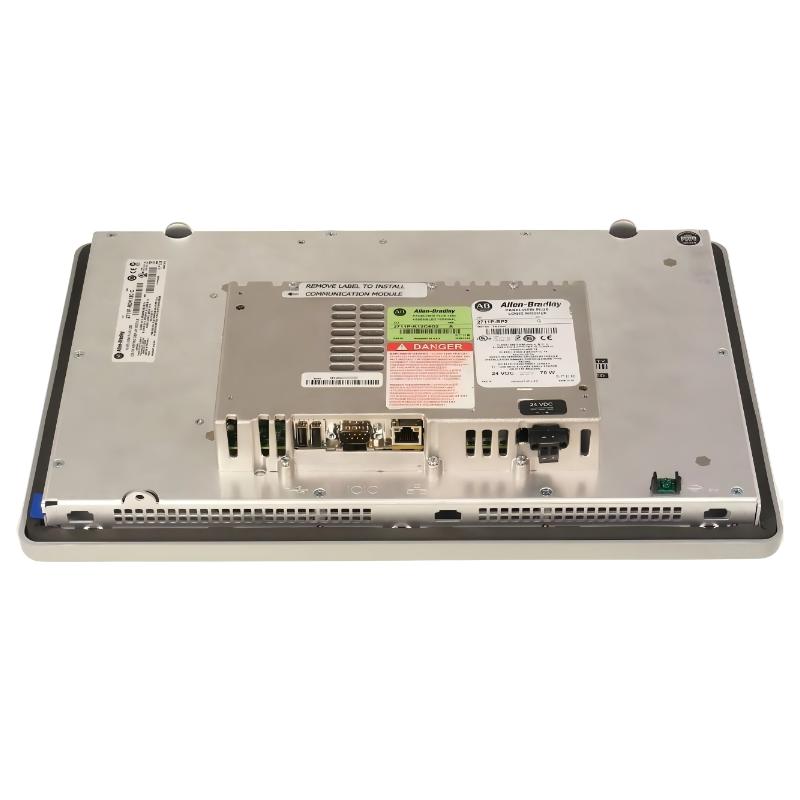

Allen Bradley 2711P-K12C4D2 PanelView Plus 1250 Operator Interface
Allen Bradley 2711P-K12C4D2 PanelView Plus 1250 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-K12C4D2 Product Origin:USA Product Dimensions:416 x 55 x 282 mm Product Weight:3.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-K12C4D2 PanelView Plus 1250 Operator Interface is a robust industrial HMI designed for complex machine control and process visualization. It provides operators with a clear, responsive interface to interact with PLC systems in real time. With its combination of keypad and touchscreen input, it supports flexible operation in both clean control rooms and demanding factory environments. Its proven reliability, wide communication support, and strong integration with Rockwell Automation systems make it a widely adopted solution for industrial automation applications worldwide.
Technical Specifications
Parameter
Specification
Product Type
Operator Interface (HMI)
Series
PanelView Plus 1250
Model Number
2711P-K12C4D2
Display Size
12.1-inch color TFT
Resolution
800 × 600 (SVGA)
Input Type
Touchscreen + Keypad
Communication Ports
Ethernet, RS-232, DH+, USB
Power Supply
18–32 V DC
Logic Memory
128 MB RAM / 128 MB Flash
Mounting Type
Panel Mount
Operating Environment
Industrial automation systems
Dimensions
416 × 55 × 282 mm
Weight
3.4 kg
Recommended Related Models
Model Number
Product Name
2711P-K12C4A8
PanelView Plus 1250 Operator Interface (Keypad Version)
2711P-K12C4D8
PanelView Plus 1250 Enhanced Operator Interface
2711P-T12C4D2
PanelView Plus 1250 Touch Operator Terminal
2711P-K12C4D9
PanelView Plus 1250 Advanced Keypad HMI
Popular Related Models
Model Number
Product Name
2711P-T10C4D8
PanelView Plus 1000 Operator Interface
2711P-T15C4D2
PanelView Plus 1500 Touch Terminal
2711P-K10C4D2
PanelView Plus 1000 Keypad HMI
2711P-T12W22D9
PanelView Plus 7 Performance HMI
Applications
• PLC-Based Machine Control Systems
Provides real-time operator interaction with ControlLogix and CompactLogix systems.
• Manufacturing Production Lines
Used for monitoring and controlling multi-stage automated production processes.
• Process Industry Visualization
Supports chemical, water treatment, and energy systems requiring continuous supervision.
• Packaging and Assembly Machines
Enables operators to adjust parameters and monitor machine status during operation.
• SCADA Monitoring Stations
Acts as a local HMI node in distributed SCADA architectures.
• OEM Equipment Panels
Widely integrated into custom-built industrial machinery by OEM manufacturers.
• Material Handling Systems
Used for conveyor control, sorting systems, and automated logistics equipment.
• Industrial Retrofits
Commonly deployed to replace legacy PanelView terminals in existing installations.
Key Advantages
• Large 12.1-inch Operator Display
Improves visibility of complex process data and system status.
• Dual Input Operation (Keypad + Touch)
Enhances usability in both clean and harsh industrial environments.
• Multi-Protocol Communication Support
Compatible with Ethernet/IP, DH+, RS-232, and USB interfaces.
• Rugged Industrial Construction
Designed for reliable operation in vibration, dust, and temperature variations.
• Efficient Operator Workflow
Simplifies machine interaction, reducing response time during faults or adjustments.
• Flexible Integration
Easily integrates into existing Rockwell Automation architectures.
• Alarm and Event Handling Capability
Provides real-time alerts for system diagnostics and fault conditions.
• Long Service Life Design
Built for continuous industrial operation with minimal maintenance.
Technical FAQs
1. What is the main function of the 2711P-K12C4D2?
It serves as a Human-Machine Interface (HMI) for monitoring and controlling PLC-based automation systems.
2. Which controllers is it compatible with?
It works with Allen-Bradley ControlLogix, CompactLogix, and other PLC platforms supporting FactoryTalk View ME.
3. What communication interfaces are supported?
It supports Ethernet/IP, DH+, RS-232, and USB communication protocols.
4. Does it support both touchscreen and keypad input?
Yes, it features a hybrid interface combining touchscreen and physical keypad control.
5. What type of display does it use?
It uses a 12.1-inch TFT color display with 800 × 600 resolution.
6. Is it suitable for harsh industrial environments?
Yes, it is designed with an industrial-grade enclosure for demanding environments.
7. Can it be used for SCADA systems?
Yes, it is commonly used as a local operator terminal in SCADA architectures.
8. Does it require external power?
Yes, it operates on a 18–32 V DC industrial power supply.
9. Can it display alarms and fault messages?
Yes, it supports real-time alarm management and system diagnostics.
10. Is it still used in modern automation systems?
Yes, it is widely used in existing installations and retrofit projects, although newer PanelView generations also exist.
