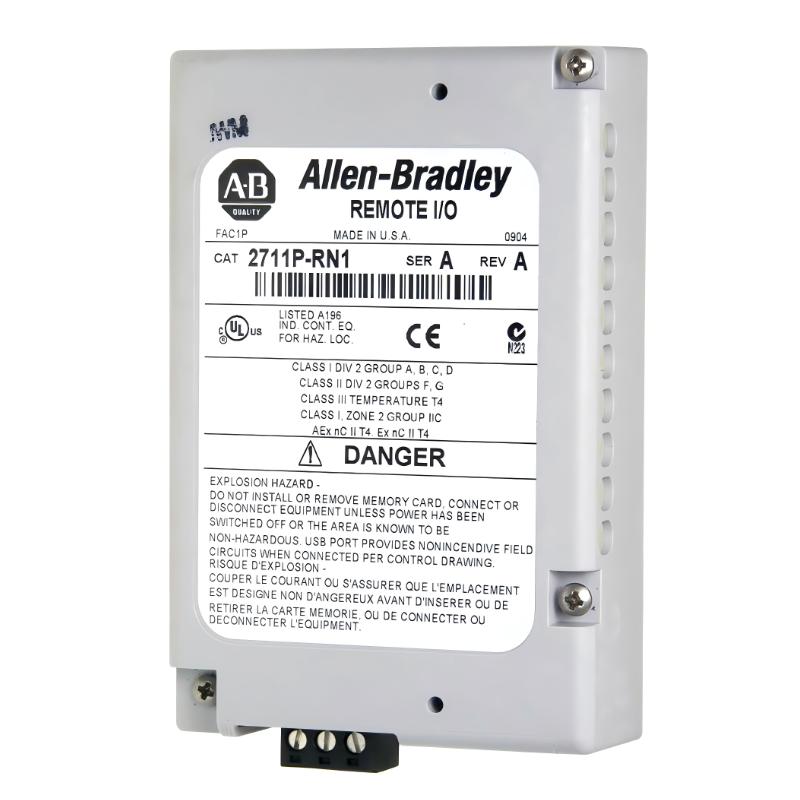

Allen Bradley 2711P-RN1 PanelView Plus Network Communication Module

Applications

• PanelView Plus Network Expansion
Enables additional communication capabilities for PanelView Plus operator terminals.

• Industrial Control Network Integration
Supports integration of HMI systems into industrial network architectures.

• Remote I/O Communication Systems
Used for connecting PanelView Plus terminals to Remote I/O networks.

• Machine Retrofit Projects
Allows legacy systems to be upgraded with extended communication functionality.

• Factory Automation Systems
Supports data exchange between HMIs and PLC control systems.

• Process Monitoring Stations
Enables reliable communication for operator monitoring interfaces.

• OEM Equipment Design
Integrated into machine builder solutions requiring flexible network options.

• Legacy System Maintenance
Commonly used in maintaining and extending older PanelView Plus installations.

Key Advantages

• Expandable Communication Capability
Adds network flexibility to compatible PanelView Plus terminals.

• Supports Industrial Protocols
Enables communication over Remote I/O and related industrial networks.

• Compact Module Design
Saves panel space while adding communication functionality.

• Seamless Integration
Designed specifically for PanelView Plus architecture compatibility.

• Improved System Flexibility
Allows different network configurations depending on application needs.

• Reliable Industrial Operation
Built for stable performance in control cabinet environments.

• Easy Installation Concept
Module-based design simplifies system expansion or replacement.

• Supports Legacy Infrastructure
Useful in systems where older industrial networks are still in use.

Technical FAQs

1. What is the main function of the 2711P-RN1 module?
It provides additional network communication capability for PanelView Plus terminals.

2. Which systems is this module compatible with?
It is designed for PanelView Plus 400 and 600 series terminals.

3. What communication protocol does it support?
It primarily supports Remote I/O (RIO) communication.

4. Can it be used with Ethernet networks?
No, this module is intended for legacy industrial network protocols, not Ethernet/IP.

5. Is this module hot-swappable?
Module replacement should follow proper shutdown and safety procedures.

6. Does it require external power?
No, it is powered through the PanelView Plus terminal backplane.

7. Is configuration required after installation?
Yes, the HMI project must be configured to recognize the communication module.

8. Can multiple communication modules be installed at once?
It depends on the PanelView Plus terminal model and available slots.

9. Is this module still widely used today?
It is mainly used in legacy systems and maintenance applications.

10. What industries typically use this module?
It is used in manufacturing, process control, and industrial automation environments.
