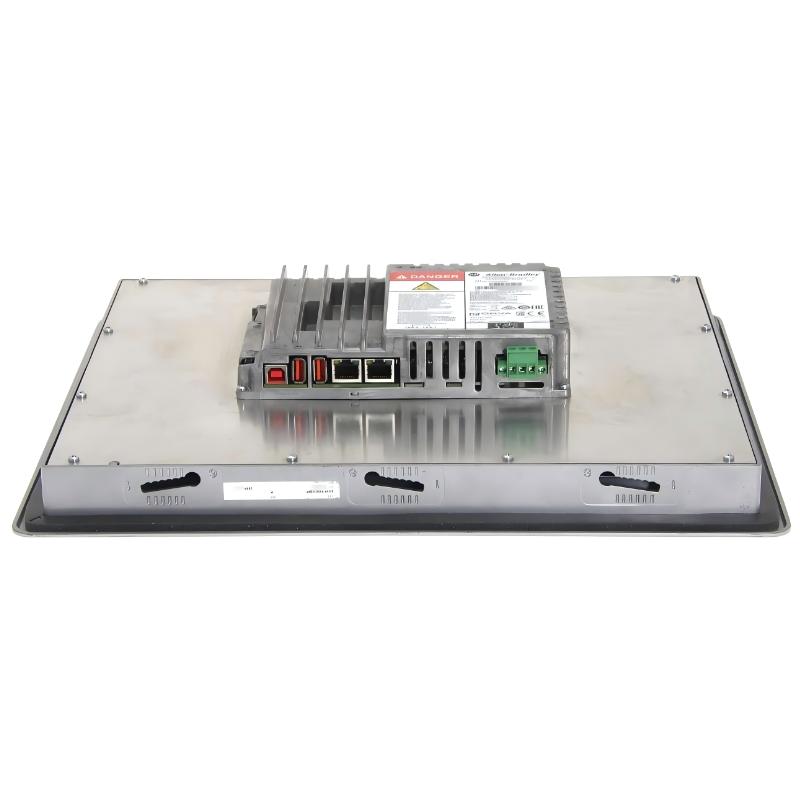

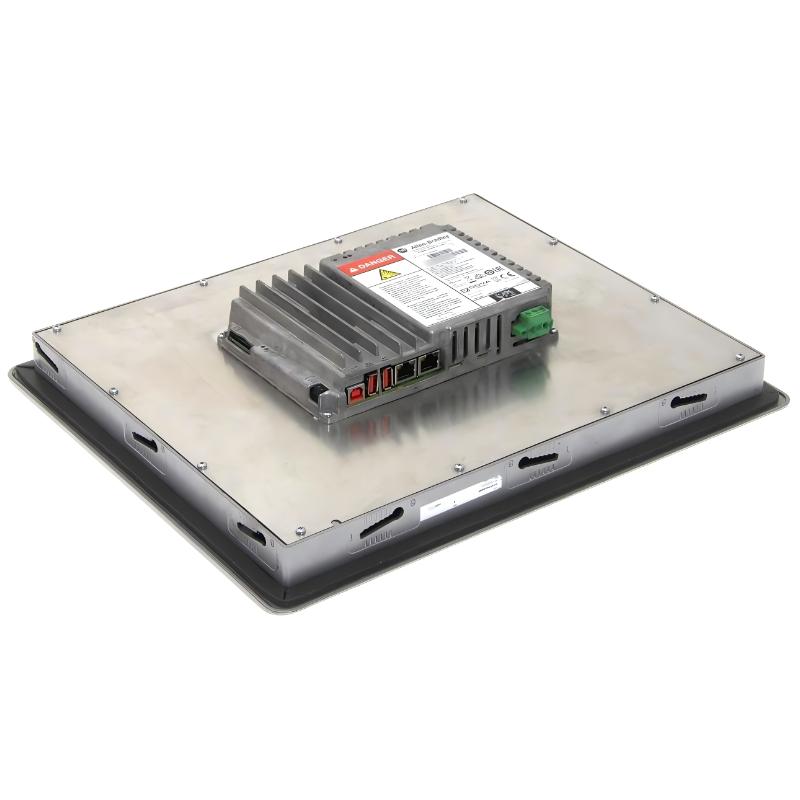

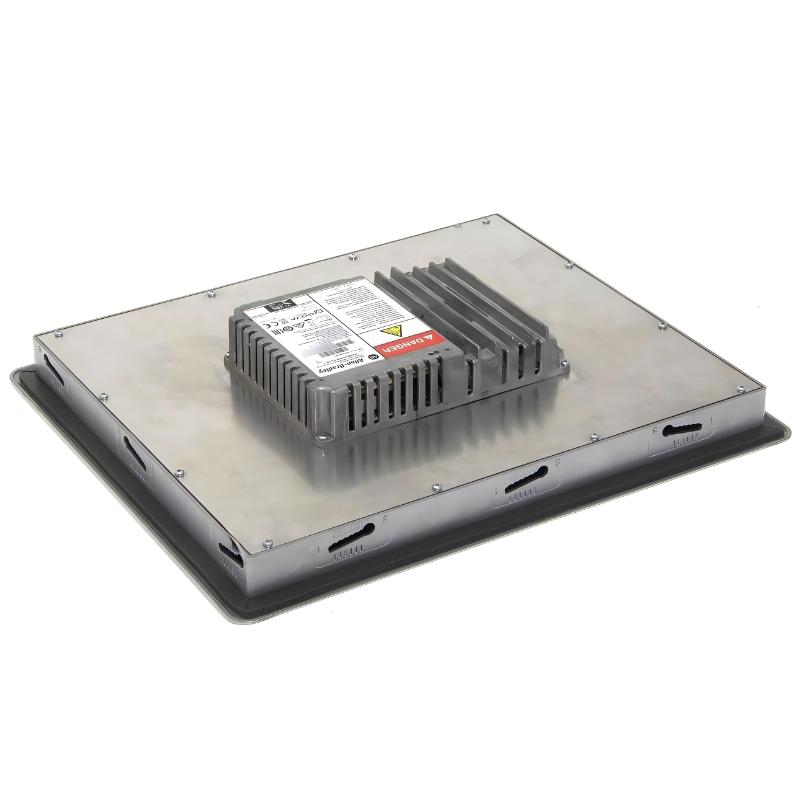

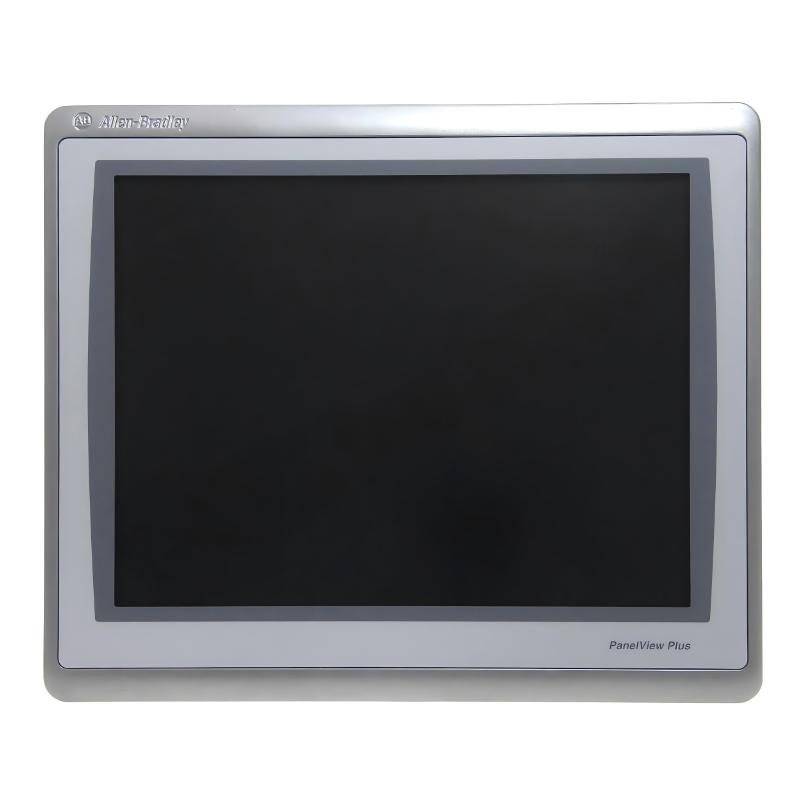

Allen Bradley 2711P-T15C22D9P PanelView Plus 7 Operator Interface
Allen Bradley 2711P-T15C22D9P PanelView Plus 7 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-T15C22D9P Product Origin:USA Product Dimensions:381 x 69.6 x 318 mm Product Weight:3.69 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-T15C22D9P PanelView Plus 7 Operator Interface offers a high-performance solution for complex industrial automation environments. With a large 15-inch capacitive touchscreen and multi-touch capabilities, operators can intuitively monitor and control machines and processes. Designed for robust industrial applications, it provides seamless integration with Rockwell Automation systems, real-time alarm and event handling, and flexible mounting options. Ideal for OEM equipment, production lines, and process control, this HMI enhances operational efficiency and situational awareness.
Technical Specifications
Parameter
Specification
Product Type
Operator Interface (HMI)
Series
PanelView Plus 7
Model Number
2711P-T15C22D9P
Display Size
15-inch color capacitive touchscreen
Resolution
1024 × 768 (XGA)
Input Type
Multi-touch capacitive
Communication Ports
Ethernet/IP, DH+, USB, Serial
Power Supply
24 V DC
Mounting Type
Panel / Enclosure Mount
Operating Environment
Industrial automation systems
Dimensions
381 × 69.6 × 318 mm
Weight
3.69 kg
Recommended Related Models
Model Number
Product Name
2711P-T12C22D9P
PanelView Plus 7 12-inch Touch HMI
2711P-T10C22D9P
PanelView Plus 7 10-inch Touch HMI
2711P-T15C22D8
PanelView Plus 7 15-inch Touch HMI (Enhanced)
2711P-K15C22D9
PanelView Plus 7 15-inch Keypad + Touch Interface
Popular Related Models
Model Number
Product Name
2711P-T12C4D8
PanelView Plus 1250 Touch HMI
2711P-K12C4D9
PanelView Plus 1250 Keypad HMI
2711P-T10C22D8
PanelView Plus 7 10-inch Touch HMI
2711P-T15C22D8P
PanelView Plus 7 15-inch Touch HMI (Performance)
Applications
• Advanced Machine Control Systems
Provides operators with full control and visualization of automated machinery.
• Process Industry Monitoring
Used in chemical, food & beverage, and water treatment plants for process supervision.
• SCADA and HMI Integration
Acts as a local operator interface in distributed SCADA architectures.
• Packaging and Assembly Lines
Enables real-time parameter adjustments and system status monitoring.
• OEM Equipment Panels
Integrated into custom machinery by OEMs for flexible control solutions.
• Material Handling Systems
Used in conveyors, automated storage, and logistics control systems.
• Production Data Visualization
Supports trend monitoring, alarm management, and operational analytics.
Key Advantages
• Large 15-inch Touchscreen Display
Provides clear, high-resolution visualization for complex processes.
• Multi-Touch Capacitive Interface
Enables intuitive, responsive user interaction.
• High-Speed Communication
Supports Ethernet/IP and other industrial network protocols for fast data transfer.
• Robust Industrial Design
Built to withstand vibration, dust, and temperature fluctuations in factory environments.
• Flexible Mounting Options
Panel or enclosure mounting for convenient operator access.
• Advanced Alarm and Event Management
Displays real-time alarms, events, and diagnostics for efficient monitoring.
• Enhanced Security Features
User authentication and access control help protect critical system operations.
• Seamless Integration with Rockwell Automation Systems
Ensures compatibility with ControlLogix, CompactLogix, and FactoryTalk View ME.
Technical FAQs
1. What is the main function of the 2711P-T15C22D9P?
It provides a high-performance operator interface for monitoring and controlling industrial processes.
2. Which controllers is it compatible with?
Compatible with ControlLogix, CompactLogix, and other PLCs supported by FactoryTalk View ME.
3. What communication protocols are supported?
It supports Ethernet/IP, DH+, USB, and serial connections.
4. What type of display does it use?
A 15-inch color capacitive touchscreen with high-resolution graphics.
5. Can it display real-time alarms and events?
Yes, it supports full alarm and event management for operator awareness.
6. Is it suitable for harsh industrial environments?
Yes, it features an industrial-grade enclosure rated for vibration, dust, and temperature variations.
7. Does it support multi-touch gestures?
Yes, it allows pinch, zoom, and swipe gestures for easy navigation.
8. Can it be used in SCADA systems?
Yes, it serves as a local HMI in SCADA or distributed automation systems.
9. What power supply does it require?
It operates on a 24 V DC industrial power source.
10. Is it suitable for retrofitting older PanelView systems?
Yes, it is commonly used to upgrade or replace legacy PanelView terminals.
