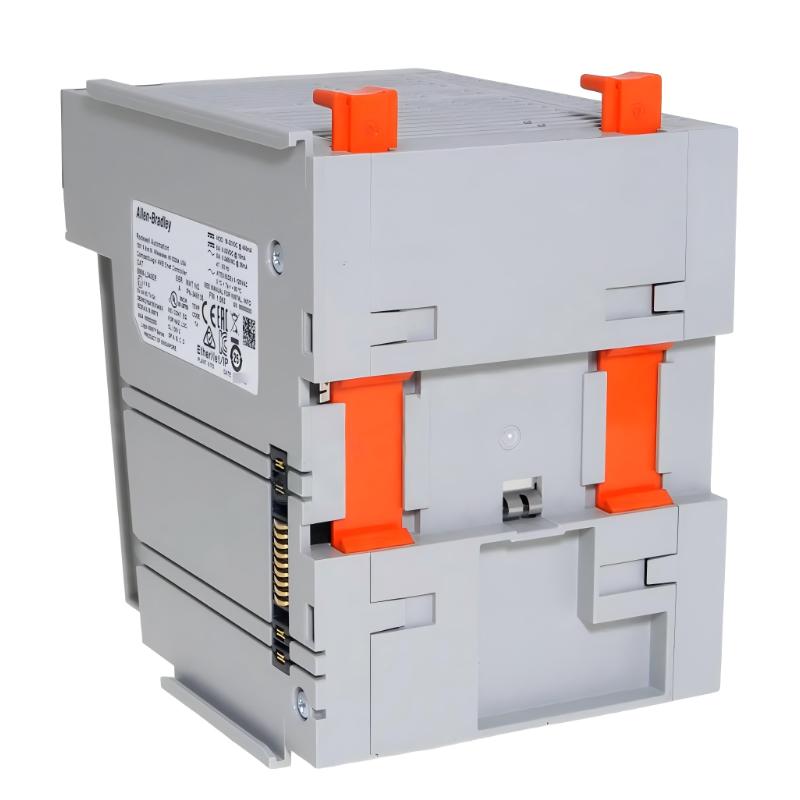

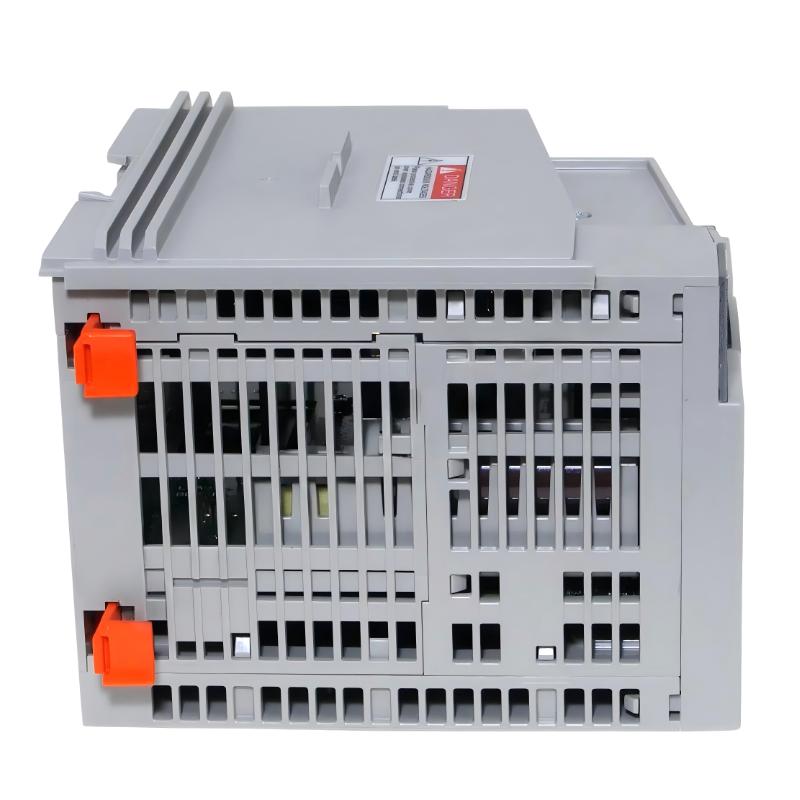

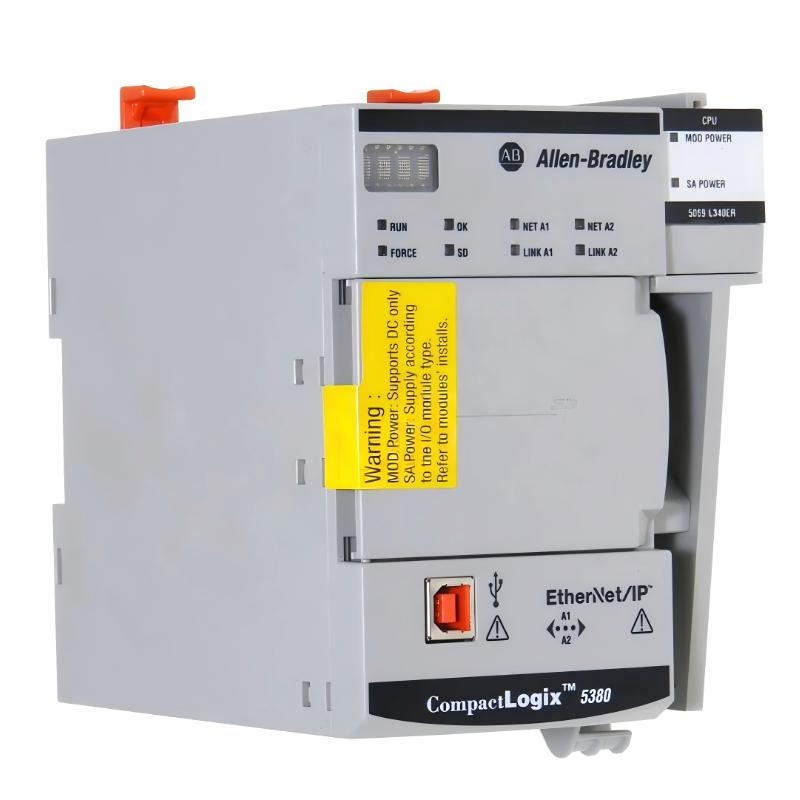

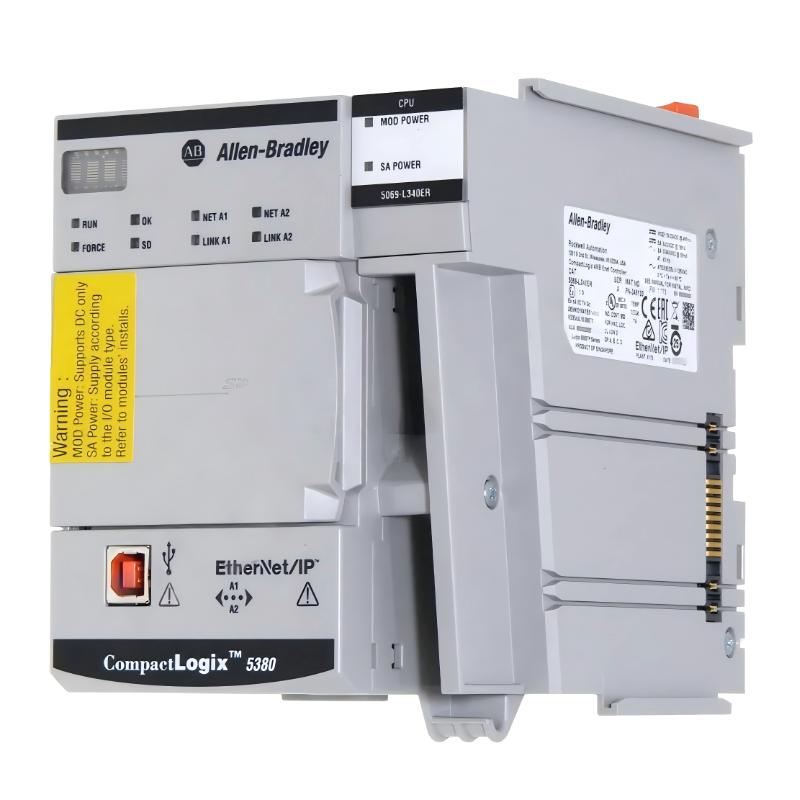

Allen Bradley 5069-L340ER CompactLogix 5380 Controller

Applications

• Machine Automation Systems
Provides high-speed logic control for complex industrial machinery and production lines.

• Motion Control Applications
Supports coordinated multi-axis motion control for servo-driven systems.

• Factory Production Lines
Used in synchronized manufacturing environments requiring real-time control.

• Process Automation Systems
Enables stable control of continuous and batch processing operations.

• OEM Machine Builders
Commonly integrated into custom automation equipment for global industrial deployment.

• Packaging and Assembly Systems
Handles coordinated control of conveyors, robotics, and packaging machines.

• Material Handling and Logistics
Supports automated warehousing, sorting, and conveyor systems.

• High-Performance Industrial Control Systems
Used in demanding environments requiring deterministic control and fast response.

Key Advantages

• High-Performance Processing Capability
Delivers fast execution of complex control logic for advanced automation tasks.

• Integrated EtherNet/IP Communication
Supports high-speed industrial networking with dual-port architecture.

• Scalable Control Platform
Easily expands with Compact 5000 I/O modules for flexible system design.

• Advanced Motion Control Support
Enables coordinated multi-axis motion over EtherNet/IP networks.

• Enhanced Diagnostics and Security
Provides detailed system diagnostics and secure controller operation.

• Compact DIN-Rail Design
Saves cabinet space while maintaining powerful processing capability.

• Reliable Industrial Operation
Designed for continuous use in harsh industrial environments.

• Flexible System Integration
Works seamlessly with Rockwell Automation Compact 5000 ecosystem.

Technical FAQs

1. What is the main function of the 5069-L340ER?
It is a programmable logic controller (PLC) used to control industrial automation systems.

2. How much memory does it support?
It provides approximately 4 MB of user memory for control programs and data.

3. Does it support motion control?
Yes, it supports integrated motion over EtherNet/IP for multi-axis systems.

4. How many I/O modules can it handle?
It supports up to 31 Compact 5000 I/O modules depending on configuration.

5. What communication interfaces are available?
It includes dual Ethernet/IP ports and USB programming interface.

6. Can it be used in safety applications?
This model is a standard controller; safety functions require GuardLogix variants.

7. What programming software is required?
It is programmed using Studio 5000 Logix Designer.

8. Does it support redundant systems?
It does not provide full redundancy, but supports high-availability architectures through design.

9. Is it suitable for large-scale systems?
Yes, it is designed for small to medium-to-large industrial automation applications.

10. What industries commonly use it?
Automotive, packaging, food processing, material handling, and general manufacturing.
