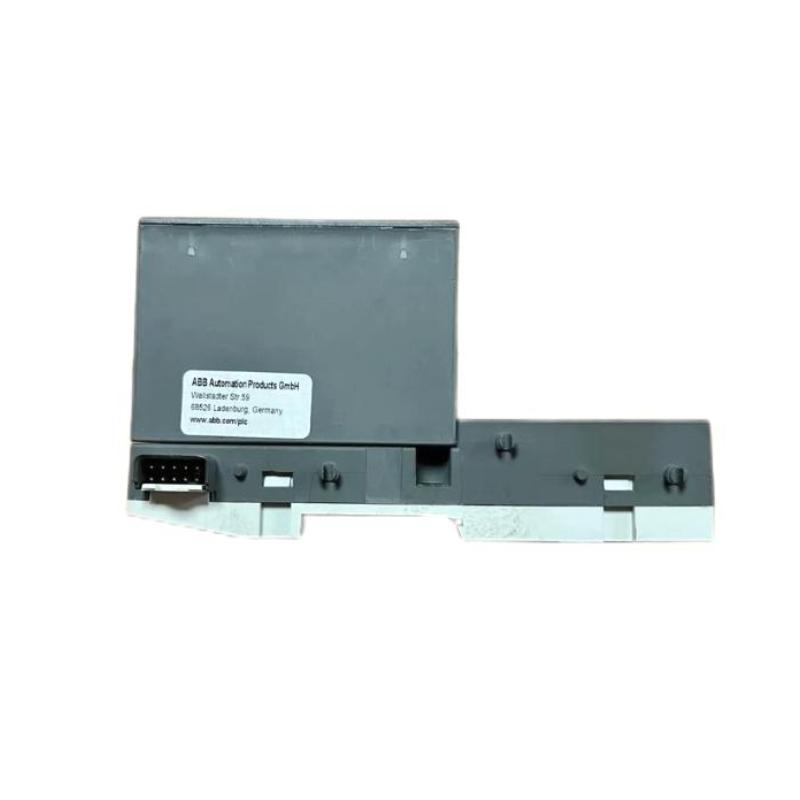

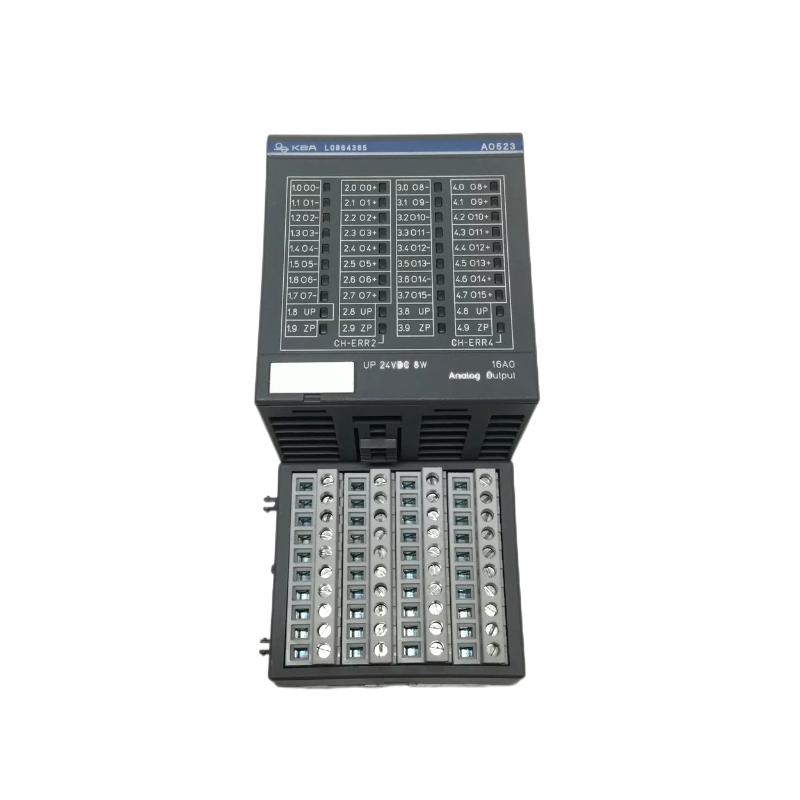

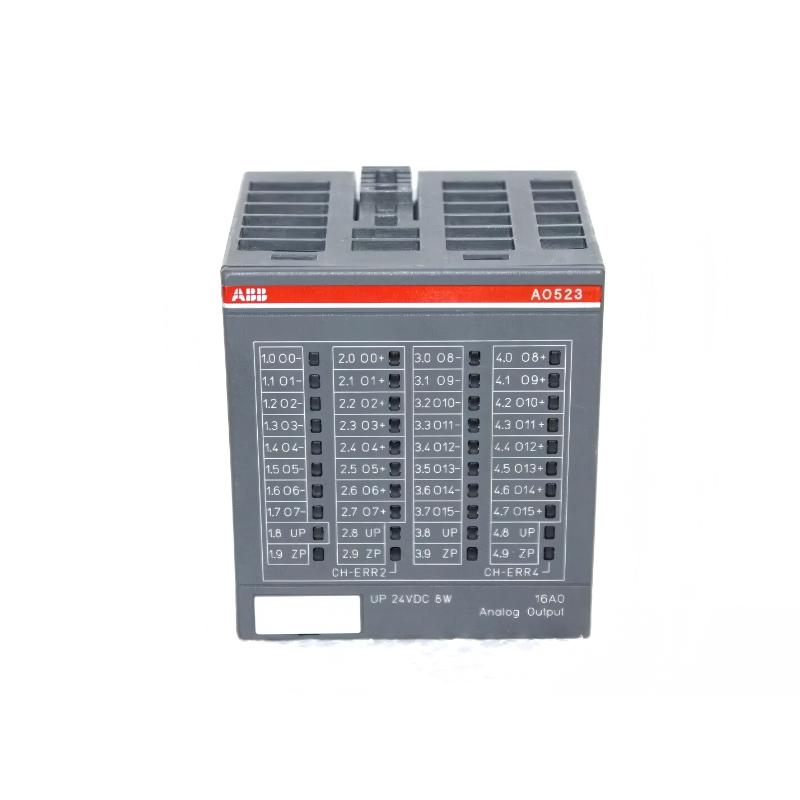

ABB AO523 1SAP250200R0001 Analog Output Module durable

Applications
The ABB AO523 is ideal for industrial applications where precise and reliable analog output signals are needed to control field devices and ensure optimal performance:

• Industrial Automation – The AO523 is widely used to interface with actuators, valves, and motors to control production lines, machinery, and other automated systems with high precision.

• Process Control – In industries such as chemicals, pharmaceuticals, and food processing, the AO523 ensures accurate control of process variables, improving system efficiency and ensuring product quality.

• Energy Management – Used to control power distribution systems, renewable energy systems, and energy-efficient devices, the AO523 enables optimal energy usage and system performance.

• Building Automation – Commonly employed in controlling HVAC systems, lighting, and other building infrastructure, the AO523 contributes to energy efficiency and occupant comfort in smart buildings.

Advantages

• High Accuracy: The AO523 provides ±0.05% of full scale accuracy, ensuring high-quality control signals for critical industrial applications.

• Flexible Output Range: With output ranges of 0-10V, 4-20mA, and ±10V, the AO523 is compatible with a wide range of control systems and field devices.

• 16-Bit Resolution: The AO523 offers 16-bit resolution for high-precision output signals, ensuring fine control of actuators and motors.

• Wide Operating Temperature Range: With an operating temperature range of -20°C to 60°C, the AO523 performs reliably in a variety of industrial environments, including those with harsh conditions.

• Compact Design: The module’s compact size (144mm x 130mm x 30mm) and DIN rail mounting make it easy to integrate into control panels, even when space is limited.

• Seamless Integration: Supports Modbus RTU, Profibus DP, and Ethernet/IP communication protocols, ensuring smooth integration with various industrial control systems.

Technical FAQs

1. What is the output range of the ABB AO523?
   The AO523 supports output ranges of 0-10V, 4-20mA, and ±10V, making it versatile for controlling a variety of field devices.

2. How many output channels are available in the ABB AO523?
   The AO523 provides 4 single-ended output channels, allowing for the control of multiple devices simultaneously.

3. What is the resolution of the ABB AO523?
   The AO523 offers 16-bit resolution, providing high-precision output signals for fine control of actuators and motors.

4. What is the accuracy of the ABB AO523?
   The AO523 provides an accuracy of ±0.05% of full scale, ensuring precise and reliable control signals for industrial applications.

5. How is the ABB AO523 mounted?
   The AO523 is designed for DIN rail mounting, making it easy to integrate into industrial control panels.

6. Which communication protocols are supported by the ABB AO523?
   The AO523 supports Modbus RTU, Profibus DP, and Ethernet/IP communication protocols, ensuring smooth integration with various industrial control systems.

7. What is the operating temperature range of the ABB AO523?
   The AO523 operates in temperatures ranging from -20°C to 60°C, making it suitable for use in a wide range of industrial environments.

8. What industries benefit from the ABB AO523?
   The AO523 is ideal for industrial automation, process control, energy management, and building automation, where real-time, high-precision control signals are essential.

9. What is the power consumption of the ABB AO523?
   The AO523 consumes 2.5W, ensuring efficient operation while maintaining continuous output control.

10. Can the ABB AO523 be used in hazardous environments?
    The AO523 is designed for standard industrial environments. For hazardous locations, additional protective enclosures may be required to meet safety standards.
