Introduction

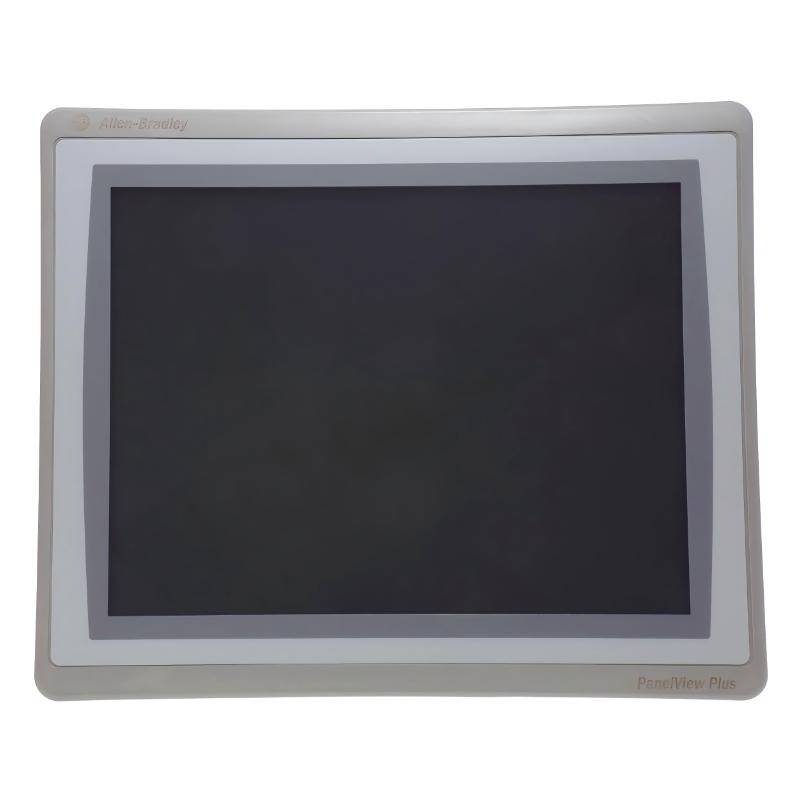

The Allen Bradley 2711P-T15C21D8S PanelView Plus 7 Operator Interface provides a large, high-resolution platform for monitoring and controlling industrial processes. Its 15-inch touchscreen offers a clear and responsive workspace for process data, trends, and alarms.

Designed for integration with FactoryTalk View ME and Allen-Bradley PLCs, this HMI enables efficient and reliable operation of complex automation systems. Its industrial-grade construction ensures durability in demanding environments, making it a trusted solution for operators in manufacturing, process control, and utilities.

Technical Specifications

Parameter	Specification
Model	2711P-T15C21D8S
Series	PanelView Plus 7
Display Size	15 inch
Resolution	1280 × 1024
Display Type	TFT Color Touchscreen
Dimensions (W × H × D)	381 × 318 × 56.5 mm
Weight	3.07 kg (6.77 lb)
Power Supply	24V DC
Communication Ports	Ethernet, optional serial
USB Ports	2 × USB
Operating System	Windows CE 6.0
Software	FactoryTalk View ME
Protection Rating	Industrial panel-mount enclosure

Applications

The Allen Bradley 2711P-T15C21D8S PanelView Plus 7 is a 15-inch operator interface designed for complex industrial automation systems. Its large display and responsive touchscreen make it ideal for:

PLC-based manufacturing and assembly lines
Process monitoring in chemical, oil, and gas plants
Packaging and material handling automation
Power distribution and utility control panels
Food and beverage production systems
Pharmaceutical and laboratory automation
General factory automation requiring detailed real-time visualization

This HMI provides operators with a comprehensive view of processes, enhancing efficiency, safety, and operational control.

Advantages

15-inch TFT color touchscreen for wide-format, high-detail process visualization
High-resolution 1280 × 1024 display ensures clear presentation of complex data
Industrial-grade construction for reliable operation in harsh environments
Ethernet and multi-protocol communication for flexible PLC integration
Compatible with FactoryTalk View Machine Edition (ME) for advanced HMI applications
Durable touchscreen suitable for glove operation and frequent use
Front panel protection against dust and water ingress
Lightweight design for its size (3.07 kg) simplifies panel installation

Technical FAQs

What type of display does this HMI use?
15-inch TFT color touchscreen with 1280 × 1024 resolution.
Which PLC systems are compatible?
Allen-Bradley ControlLogix, CompactLogix, and other Ethernet-enabled PLCs.
What software is required to program it?
FactoryTalk View Machine Edition (ME).
What communication interfaces are available?
Ethernet and optional serial connections.
Is it suitable for harsh industrial environments?
Yes, designed to operate under vibration, dust, and continuous industrial conditions.
Does it have USB ports?
Yes, dual USB ports for programming, data transfer, and peripheral devices.
What operating system does it run?
Windows CE 6.0 embedded.
Can it support remote monitoring?
Yes, when integrated with the proper network configuration.
Is the touchscreen durable for industrial use?
Yes, it supports glove operation and frequent interaction.
What type of mounting does it use?
Standard panel-mount enclosure compatible with industrial control cabinets.
