Introduction

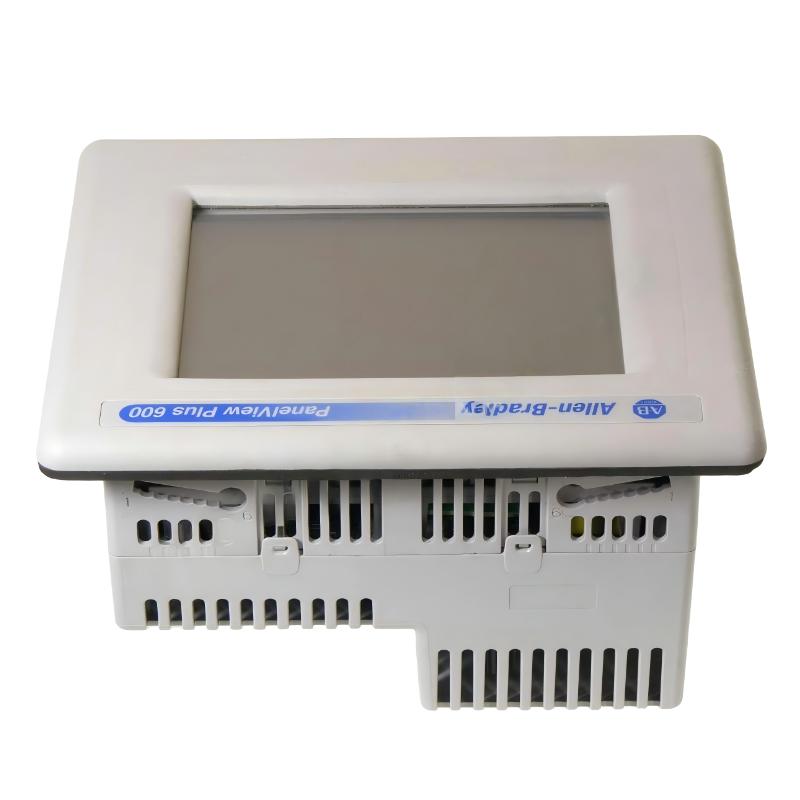

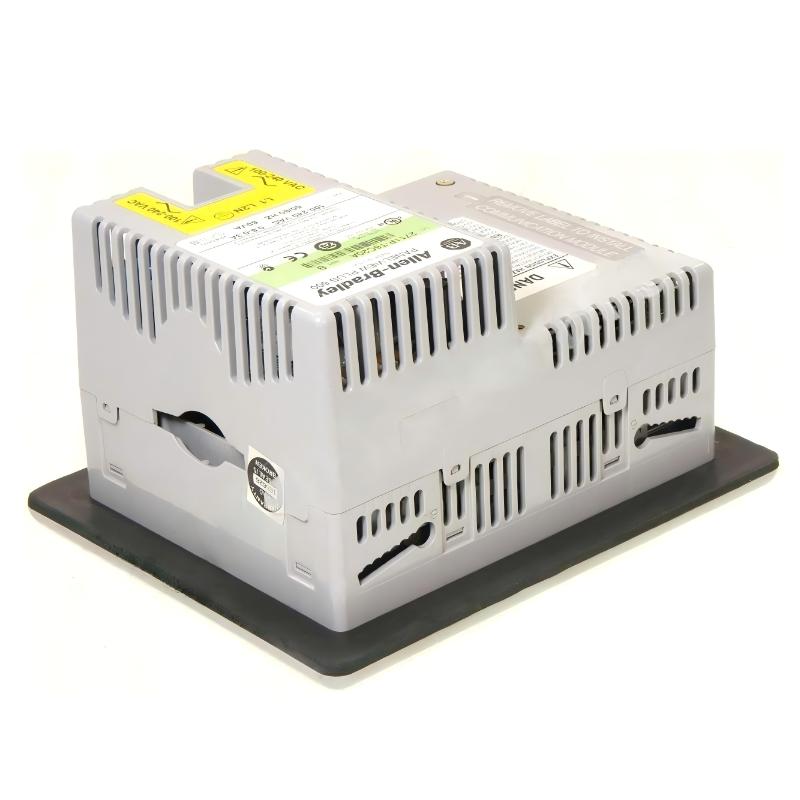

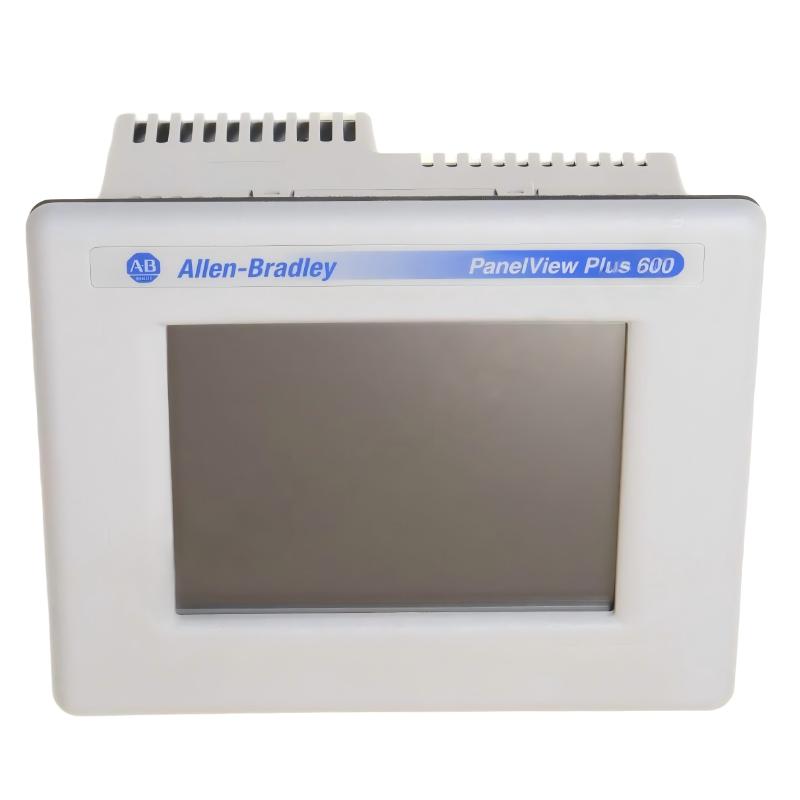

The 2711P-T6C20A/B PanelView Plus 600 is part of Rockwell Automation’s widely deployed legacy HMI family, offering reliable operator interface functionality for compact industrial systems. Its 5.7-inch display provides essential process visibility without unnecessary complexity, making it ideal for machine-level control applications.

Despite its legacy status, it remains commonly used in existing installations due to its stability, ease of maintenance, and compatibility with FactoryTalk View ME. It continues to serve as a dependable solution for industrial operators managing small to medium automation systems.

Technical Specifications

Parameter	Specification
Model	2711P-T6C20A/B
Series	PanelView Plus 600
Display Size	5.7 inch
Resolution	320 × 240
Display Type	Color TFT Resistive Touchscreen
Dimensions (W × H × D)	185 × 152 × 98 mm
Weight	0.789 kg (1.74 lb)
Power Supply	85–264V AC

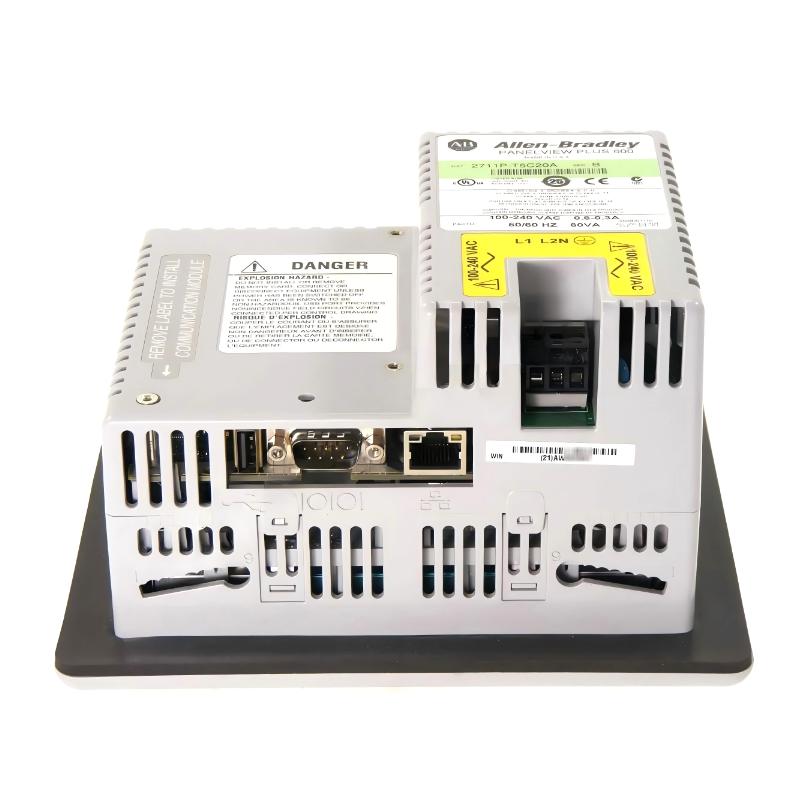

Communication	Ethernet / RS-232 / optional industrial modules
Software	FactoryTalk View ME
Mounting	Panel mount
Status	Legacy / Discontinued platform

Applications

The Allen Bradley 2711P-T6C20A/B PanelView Plus 600 is a compact industrial HMI designed for straightforward operator interaction in machine-level automation systems. It is widely used where reliable visualization and basic control are required in a space-saving form factor.

Typical applications include:

Small manufacturing and assembly machines
Packaging equipment and labeling systems
Pump, fan, and motor control panels
HVAC and building automation systems
Auxiliary industrial subsystems and test rigs
Standalone PLC-controlled equipment

Its compact footprint makes it especially suitable for retrofit projects and control cabinets with limited space.

Advantages

5.7-inch color TFT resistive touchscreen for simple and efficient operation
320 × 240 resolution optimized for essential process visualization
Compact industrial design for tight panel installations
Supports multiple industrial communication options (depending on configuration)
FactoryTalk View Machine Edition (ME) compatible for standardized HMI development
Rugged enclosure suitable for vibration and industrial environments
Glove-friendly resistive touch input for field usability
Proven legacy platform with long-term installed base support

Technical FAQs

What display type does this model use?
It uses a 5.7-inch color TFT resistive touchscreen.
What is the screen resolution?
The resolution is 320 × 240 pixels.
Which software is used for programming?
FactoryTalk View Machine Edition (ME).
Is this model touchscreen or keypad-based?
It is a touchscreen operator interface.
What communication ports are supported?
Ethernet, RS-232, and optional industrial network modules depending on version.
What power supply does it require?
85–264V AC industrial power input.
Is it suitable for harsh environments?
Yes, it is designed for industrial vibration, dust, and continuous operation.
Can it be integrated with modern PLCs?
Yes, but integration depends on communication module configuration and system setup.
Is this model still in production?
No, it belongs to the PanelView Plus 600 legacy series.
What is the main advantage of the A/B revision?
It indicates hardware/firmware revision differences while maintaining similar core functionality within the 600 platform.
