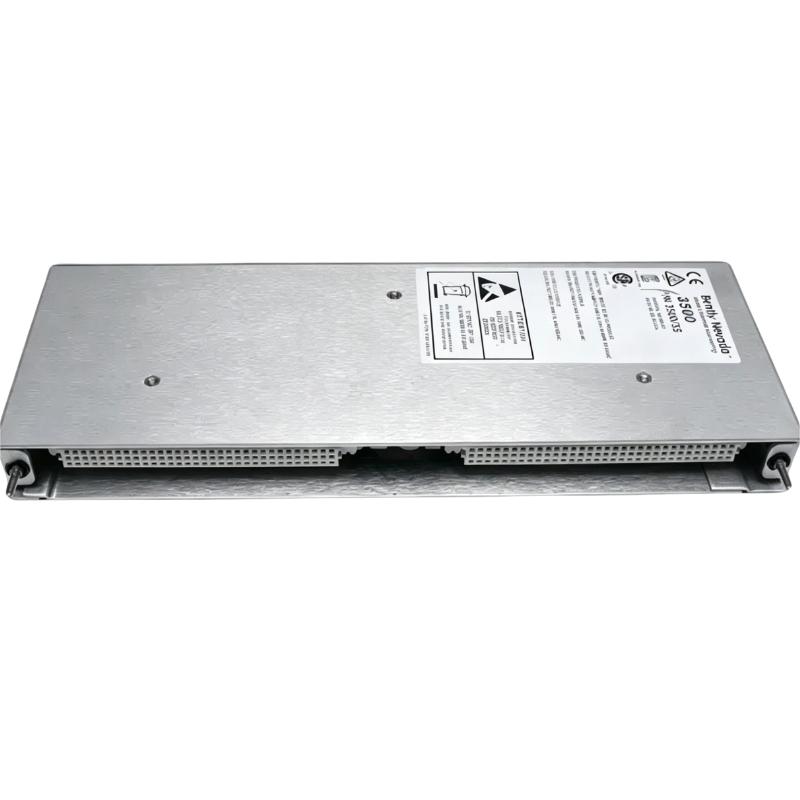

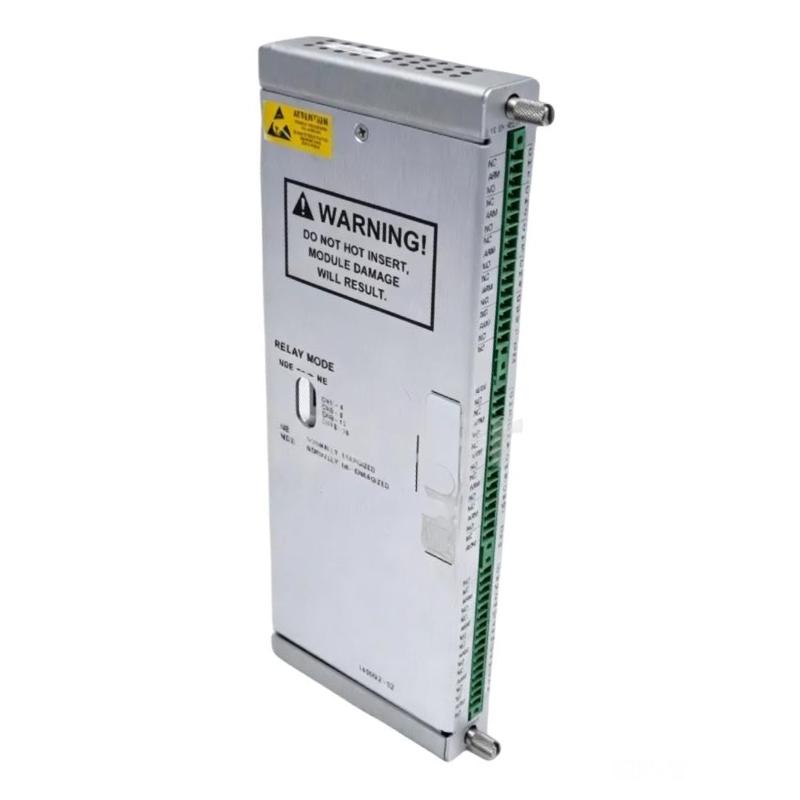

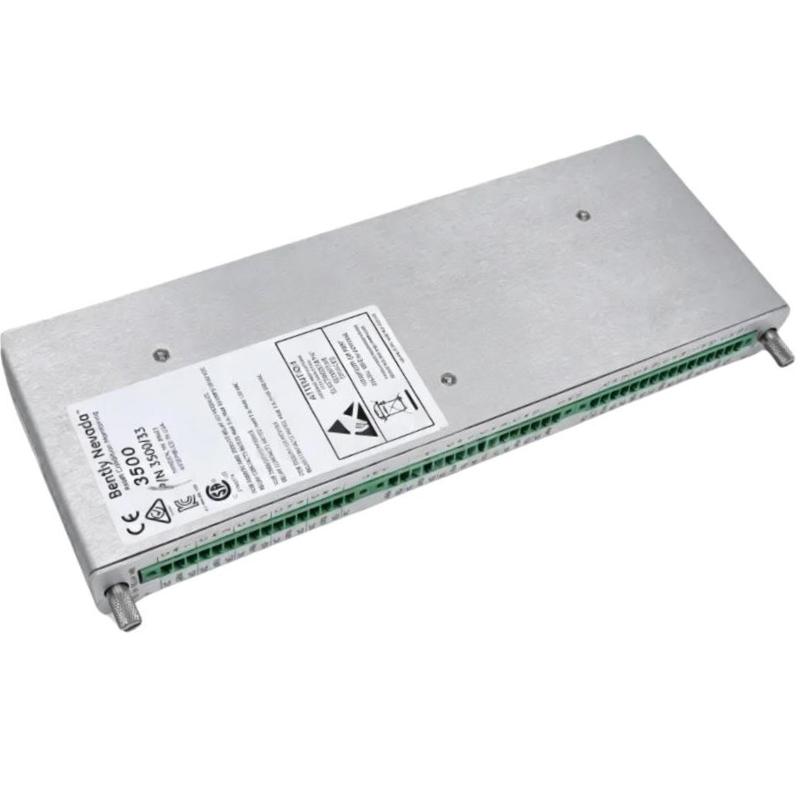

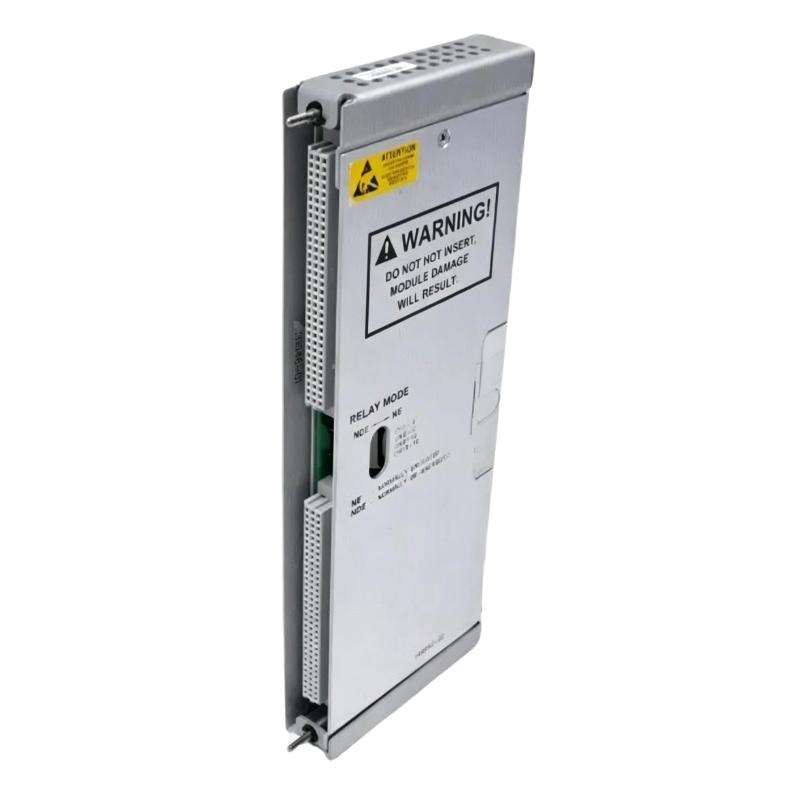

Bently Nevada 3500/33-02-00 149992-02 16-channel Relay Module

Applications

• Provides relay outputs for large-scale Bently Nevada 3500 monitoring systems.
Controls alarms, shutdowns, and other protective actions across multiple machinery channels.

• Supports turbine, compressor, and generator monitoring in industrial environments.
Enables centralized control for complex machinery setups.

• Offers 16 independent channels for high-density monitoring.
Allows flexible alarm and shutdown configurations for multiple processes.

• Integrates seamlessly into 3500/33 rack systems.
Ensures reliable communication with other 3500 series modules for advanced monitoring.

Key Advantages

• High-capacity relay output module.
Supports up to 16 independent channels for comprehensive system control.

• Ensures rapid response for critical alarms and shutdowns.
Reduces risk of equipment damage in abnormal conditions.

• Compact, rack-optimized design.
Fits efficiently in standard 3500/33 racks while maintaining airflow and accessibility.

• High reliability in continuous industrial operation.
Engineered to withstand vibration, temperature variations, and electrical noise.

• Simplified installation and maintenance.
Tool-free mounting and clear labeling minimize system downtime.

Technical FAQs

1. How many relay channels does this module support?
It supports 16 independent relay output channels for extensive control applications.

2. Can it operate while the rack is powered?
Yes, it supports safe hot-swap installation under proper industrial procedures.

3. Is it compatible with all 3500 rack systems?
It is designed for integration with Bently Nevada 3500/33 series racks.

4. Does it require external configuration?
No external configuration is required for standard operation within supported systems.

5. Can the relays handle high-current loads?
They are suitable for typical alarm and shutdown loads; maximum current ratings should be consulted in the specifications.

6. Is grounding required?
Proper rack grounding is recommended to ensure reliable relay operation and signal integrity.

7. Can it be used in high-vibration or high-EMI environments?
Yes, it is engineered for industrial vibration and electrical noise conditions.

8. Does it affect vibration or phase measurement accuracy?
No, it provides relay outputs only and does not interfere with monitoring signals.

9. Is routine maintenance required?
Minimal maintenance is needed; periodic inspection and visual checks are sufficient.

10. Can it interface with multi-module monitoring systems?
Yes, it integrates seamlessly with multiple 3500 modules for complex system control.
