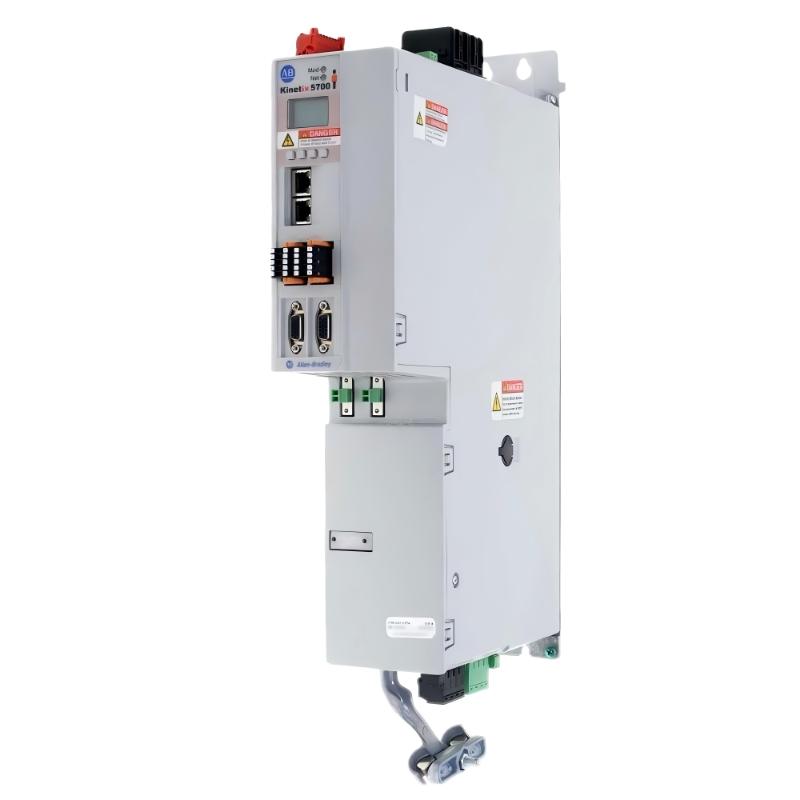

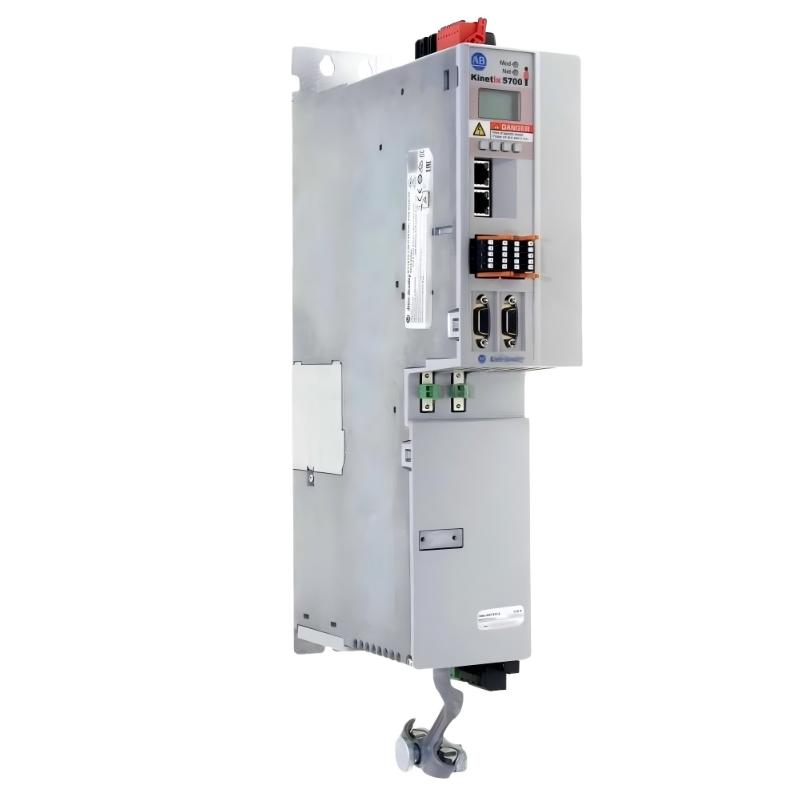

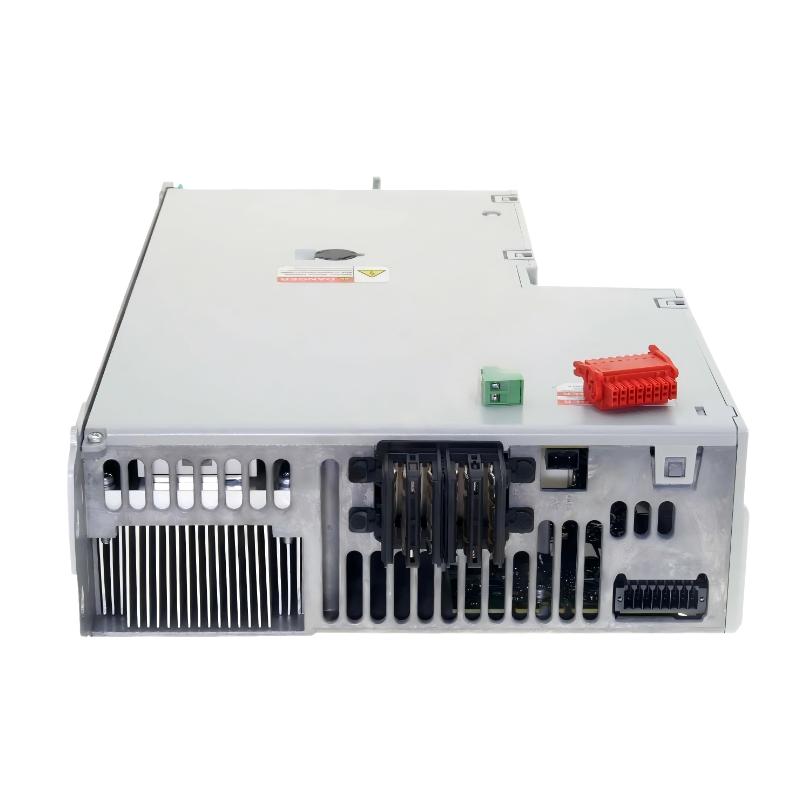

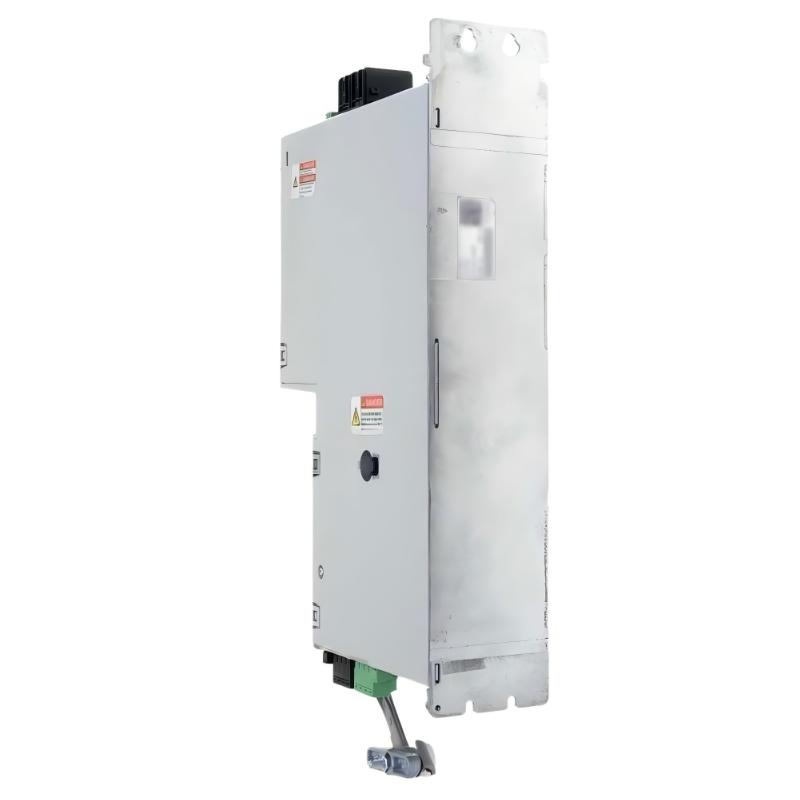

Allen Bradley 2198-D057-ERS4 Kinetix 5700 Dual-Axis Safe Speed Drive
Allen Bradley 2198-D057-ERS4 Kinetix 5700 Dual-Axis Safe Speed Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:2198-D057-ERS4 Product Origin:USA Product Dimensions:526 x 85 x 267.5 mm Product Weight:6.76 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2198-D057-ERS4 Kinetix 5700 Dual-Axis Safe Speed Drive is a high-performance servo drive engineered for precise motion control and integrated safety in industrial automation. With dual-axis capability, Safe Speed functionality, and EtherNet/IP connectivity, it delivers reliable, repeatable performance in demanding environments. Its robust design and compatibility with ControlLogix and CompactLogix platforms make it ideal for complex automation applications, including robotics, conveyors, and material handling systems.
Technical Specifications
Parameter
Specification
Dimensions
526 mm × 85 mm × 267.5 mm
Weight
6.76 kg
Axes
Dual-axis control
Function Type
Safe Speed Servo Drive
Communication
EtherNet/IP
Operating Temperature
0°C to +55°C
Mounting Type
Panel-mounted / DIN rail-compatible
Material
Industrial-grade metal housing
Recommended Related Models
Model
Product Name
2198-D057-ERS2
Kinetix 5700 Single-Axis Safe Speed Drive
2198-EN004-ERS
Kinetix 5700 EtherNet/IP Adapter Module
1756-L83
ControlLogix 5580 PLC
2198-K010-SV
Kinetix 5700 Servo Motor
Popular Related Models
Model
Product Name
2198-D057-ERS6
Kinetix 5700 Dual-Axis Safe Speed Drive Variant
2198-D057-ERS8
Kinetix 5700 Multi-Axis Safe Speed Drive
2198-K010-SV
Kinetix 5700 Servo Motor
2198-EN004-ERS
Kinetix 5700 EtherNet/IP Adapter Module
Applications
• Provides dual-axis motion control for Kinetix 5700 servo systems.
Enables precise speed and position control in packaging, robotics, and material handling applications.
• Integrates safety functions for Safe Speed operation.
Ensures machine compliance with industrial safety standards while maintaining high performance.
• Interfaces with EtherNet/IP and ControlLogix systems.
Facilitates real-time communication, monitoring, and synchronization across multiple axes.
• Supports multi-axis coordination for complex automation.
Optimizes efficiency in conveyors, gantry systems, and robotic pick-and-place applications.
Key Advantages
• High-precision dual-axis control.
Delivers smooth and repeatable motion for critical industrial operations.
• Integrated Safe Speed functionality.
Enhances safety by monitoring and controlling speed according to safety logic requirements.
• Robust, industrial-grade design.
Withstands vibration, temperature fluctuations, and electrical noise in factory environments.
• Flexible multi-axis synchronization.
Enables coordinated movements of multiple servo axes for advanced automation tasks.
• Simplified installation and maintenance.
Tool-free mounting, integrated diagnostics, and clear labeling reduce setup and service time.
Technical FAQs
1. How many axes can this drive control?
It supports dual-axis operation, enabling precise control of two servo motors simultaneously.
2. Does it support Safe Speed monitoring?
Yes, it includes integrated Safe Speed functionality to comply with industrial safety standards.
3. Can it communicate over EtherNet/IP?
Yes, it fully supports EtherNet/IP for real-time control and diagnostics.
4. Is it compatible with ControlLogix and CompactLogix systems?
Yes, it integrates seamlessly with Allen-Bradley ControlLogix and CompactLogix platforms.
5. Can it operate in high-vibration industrial environments?
Yes, the unit is engineered to maintain reliable operation under vibration and harsh factory conditions.
6. Is external configuration required before installation?
Standard configuration is plug-and-play; advanced safety parameters can be configured via Studio 5000.
7. Does it require cooling or special ventilation?
Adequate ventilation is recommended; it should be installed in a control cabinet following manufacturer guidelines.
8. Is remote monitoring and diagnostics supported?
Yes, EtherNet/IP connectivity allows real-time remote monitoring and troubleshooting.
9. Does it require routine maintenance?
Minimal maintenance is needed; periodic inspection and connector cleaning are recommended.
10. Can it coordinate with multiple Kinetix drives for complex systems?
Yes, it supports multi-drive synchronization for coordinated motion in multi-axis systems.
