Introduction

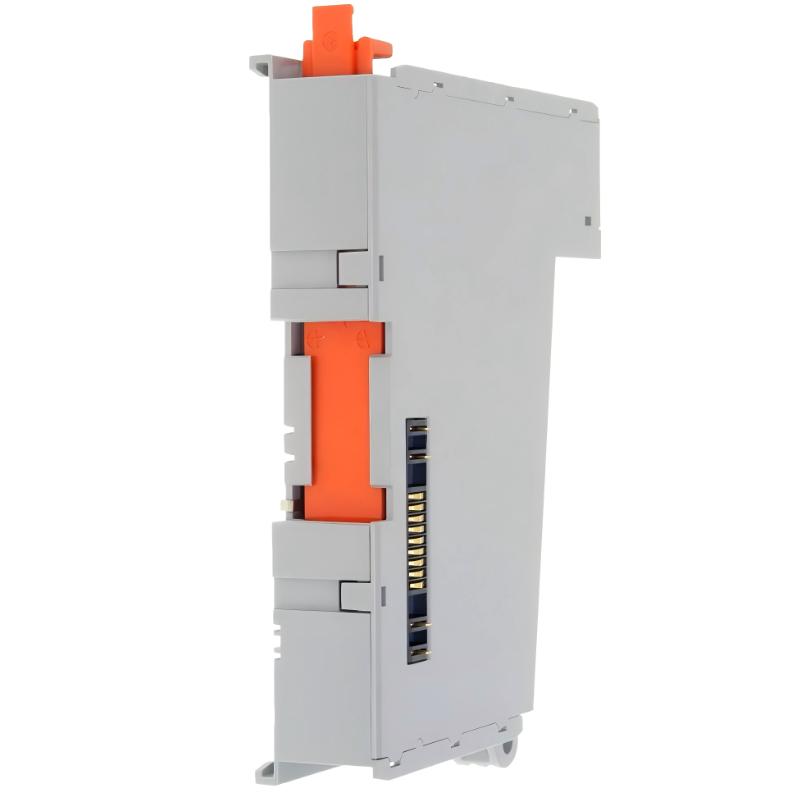

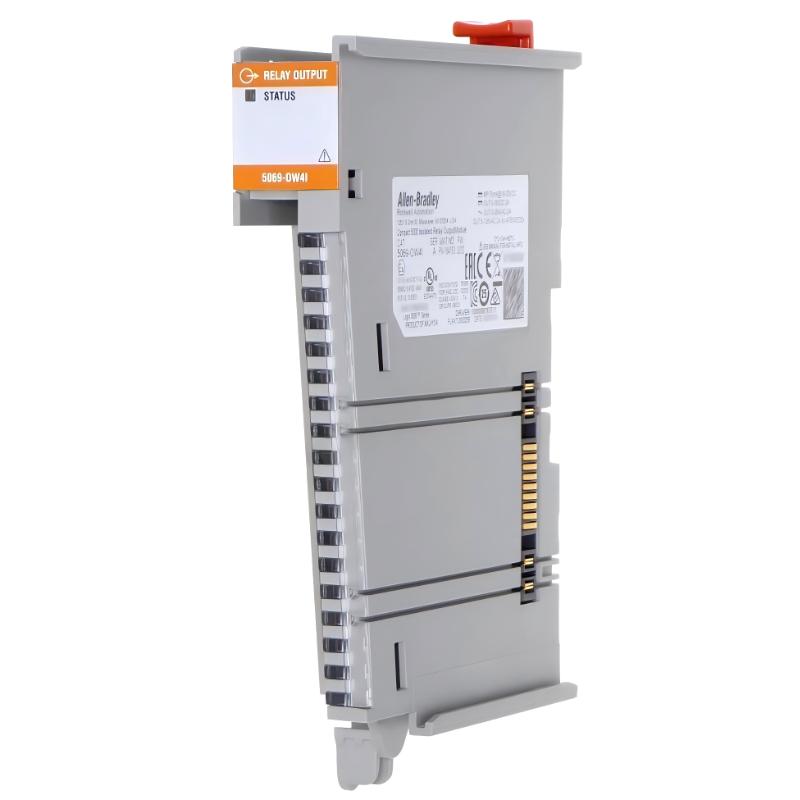

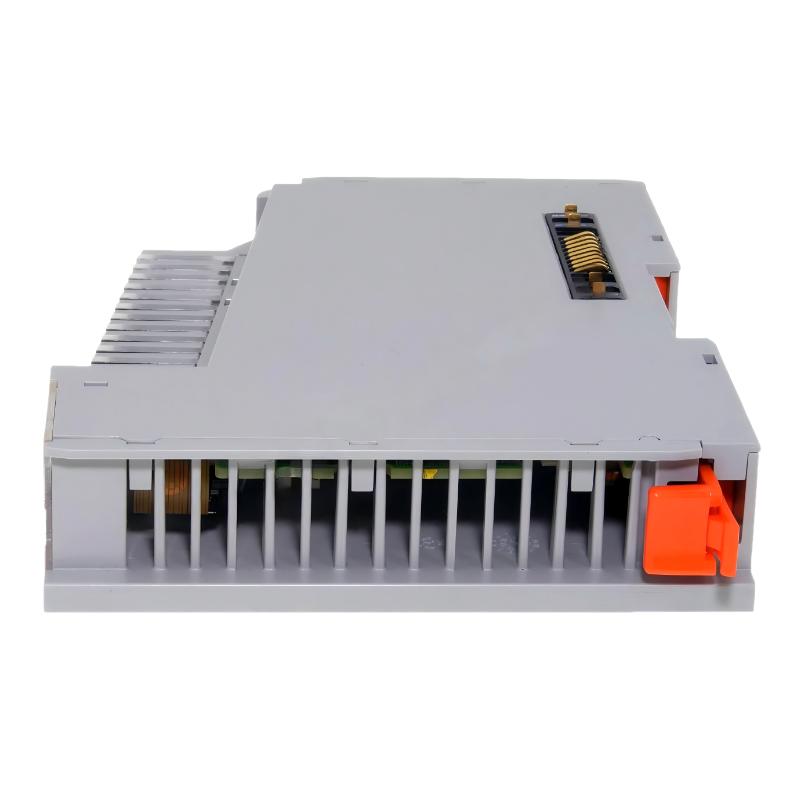

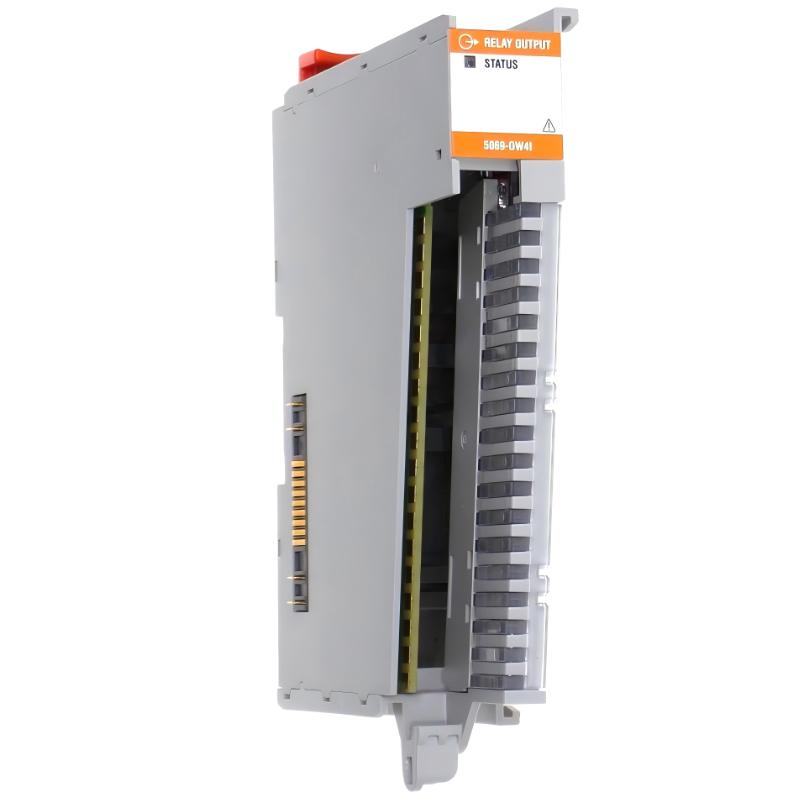

The Allen-Bradley 5069-OW4I Compact 5000 Isolation Relay Output Module is a high-performance 4-channel relay output device designed for flexible industrial control applications. Each channel is individually isolated, allowing safe switching of AC and DC loads within a compact footprint. As part of the Compact 5000 I/O family, it integrates seamlessly with CompactLogix and GuardLogix controllers, making it ideal for modern distributed automation systems requiring reliable and electrically robust output control.

Technical Specifications

Parameter	Specification
Dimensions	144.57 mm × 25.56 mm × 109.09 mm
Weight	0.175 kg
Output Channels	4 isolated relay outputs
Output Type	Normally Open (Form A) relay
Load Type	AC / DC compatible
Isolation	Individually isolated channels
Mounting Type	Compact 5000 I/O chassis
Operating Temperature	0°C to +55°C
Communication	EtherNet/IP via controller backplane

Recommended Related Models

Model	Product Name
5069-L320ERMS2	CompactLogix 5380 Security Controller
5069-IB16	Compact 5000 Digital Input Module
5069-OB16	Compact 5000 Digital Output Module
5069-OF4	Compact 5000 Analog Output Module

Popular Related Models

Model	Product Name
5069-OW4I	Compact 5000 4-Channel Isolation Relay Module
5069-OX4I	Compact 5000 Relay Output Module (NO/NC Variant)
5069-IB8	Compact 5000 Digital Input Module
5069-L330ERM	Compact 5000 Controller

Applications

• Provides isolated relay output control for Compact 5000 I/O systems.
Used for switching industrial loads such as alarms, contactors, and interlocks in automation systems.

• Supports machine-level and process-level control in Factory Automation.
Common in packaging lines, assembly systems, and material handling equipment.

• Enables safe switching of AC and DC loads within the same module.
Suitable for mixed-voltage industrial control environments.

• Integrates with CompactLogix 5380 / 5480 and GuardLogix systems.
Ensures reliable output control in EtherNet/IP-based architectures.

Key Advantages

• Fully isolated 4-channel relay output design.
Each channel operates independently to improve electrical safety and reliability.

• Supports AC and DC load switching.
Flexible output capability for different industrial actuators and devices.

• Compact Compact 5000 form factor.
Reduces cabinet space while maintaining high channel density.

• High electrical durability.
Designed for long switching life under resistive and inductive loads.

• Seamless integration with Logix ecosystem.
Works directly with Studio 5000 and Compact 5000 I/O architecture.

Technical FAQs

1. Is each channel independently isolated?
Yes, each of the four relay outputs is individually isolated for improved safety and noise immunity.

2. Can it switch both AC and DC loads?
Yes, it supports AC and DC switching within rated specifications.

3. Is it compatible with CompactLogix 5380 controllers?
Yes, it is designed for CompactLogix 5380 / 5480 and GuardLogix systems.

4. Does it require external power supply?
No, it draws power directly from the Compact 5000 backplane.

5. Can it be hot-swapped during operation?
Yes, it supports removal and insertion under standard system procedures.

6. What is the main function of isolation?
Isolation reduces ground loop noise and protects control electronics from field-side disturbances.

7. Is it suitable for safety-related applications?
It can be used in safety-related architectures, but it is not a standalone safety-certified output module.

8. Does it support inductive loads like solenoids?
Yes, but proper suppression (flyback protection) is recommended for inductive switching.

9. Does it require configuration in Studio 5000?
Yes, standard I/O configuration is required for integration into the control program.

10. What makes it different from standard output modules?
It uses mechanical relay outputs with full channel isolation instead of transistor-based outputs.
