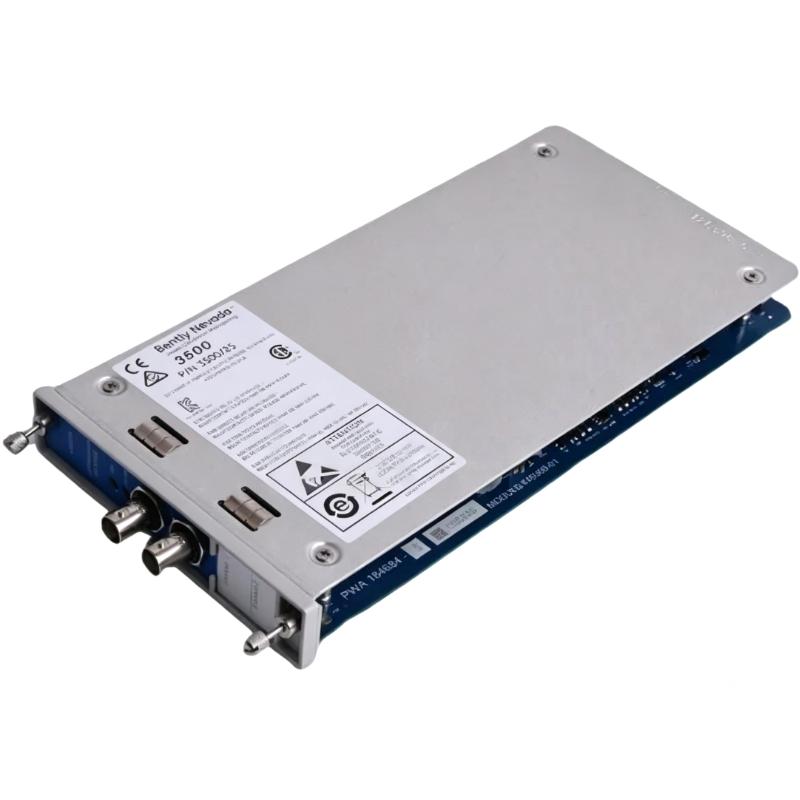

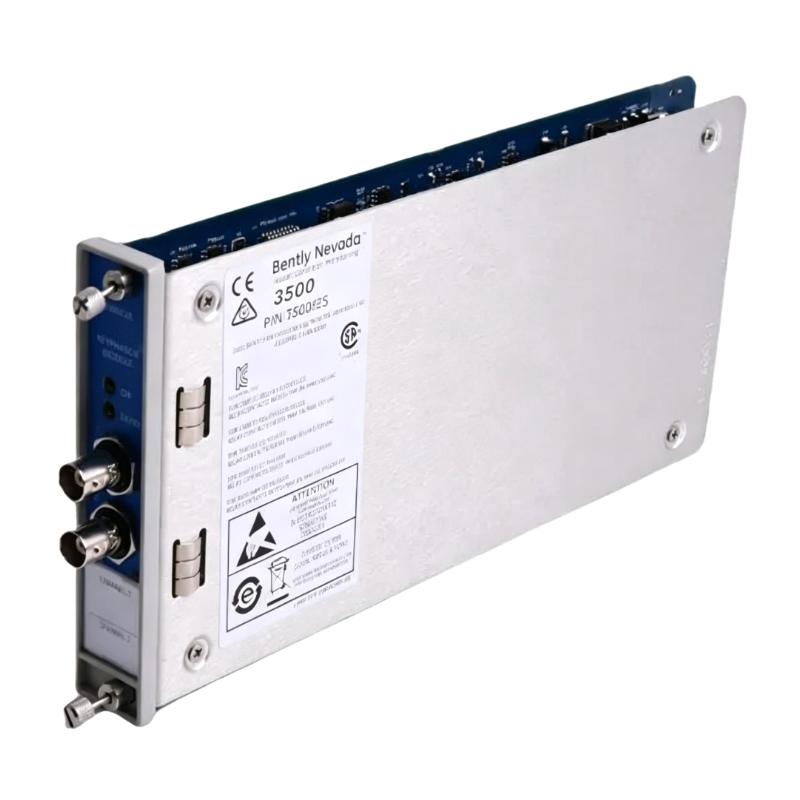

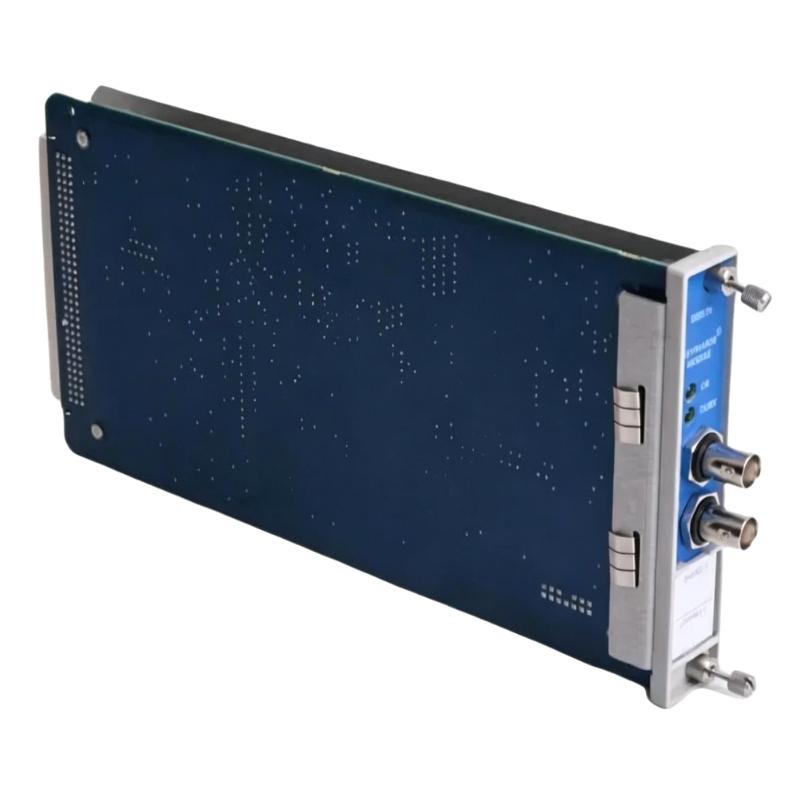

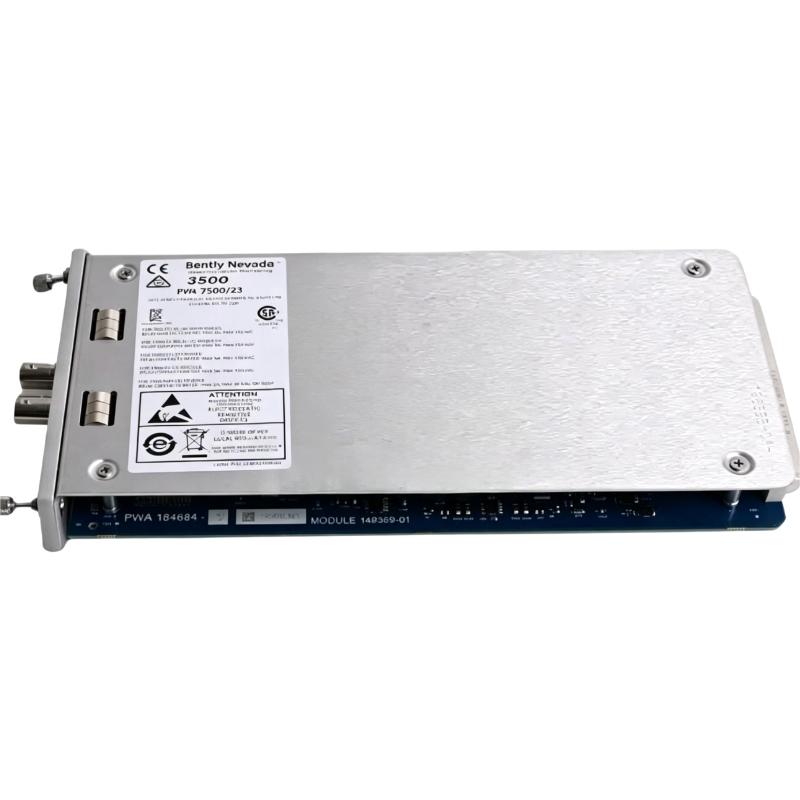

Bently Nevada 3500/25-01-04-00 Enhanced Bond Phase Module

Applications

• Provides accurate phase reference signals for rotating machinery monitoring systems.
Enables precise measurement of shaft speed, rotational position, and vibration phase relationships.

• Supports advanced machinery diagnostics and condition monitoring.
Helps identify imbalance, misalignment, shaft rubs, and other dynamic machine conditions.

• Integrates with Bently Nevada 3500 Series monitoring systems.
Provides critical reference inputs for vibration analysis and protection functions.

• Commonly installed on turbines, compressors, generators, pumps, and large motors.
Improves the accuracy of machinery health assessments and predictive maintenance programs.

Key Advantages

• High-precision phase reference generation.
Delivers reliable timing signals for advanced vibration and rotational analysis.

• Seamless integration with 3500 Series racks.
Designed specifically for Bently Nevada machinery protection architectures.

• Supports multiple monitoring applications.
Enhances the performance of vibration, speed, and position monitoring modules.

• Rugged industrial construction.
Built for long-term operation in demanding industrial environments.

• Improves diagnostic capabilities.
Provides essential reference data for accurate machinery fault detection.

Technical FAQs

1. What is the primary function of the 3500/25-01-04-00 module?
It generates phase reference signals used for shaft speed, rotational position, and vibration phase measurements.

2. Why is a Keyphasor signal important in machinery monitoring?
A Keyphasor signal provides a reference point for analyzing vibration behavior relative to shaft rotation.

3. Which systems is this module designed for?
It is designed for use within Bently Nevada 3500 Machinery Protection Systems.

4. Can this module measure machine speed?
Yes, it provides reference signals that can be used for rotational speed measurements.

5. What types of machinery commonly use this module?
Turbines, compressors, generators, motors, pumps, and other rotating equipment.

6. Does the module perform vibration monitoring directly?
No, it provides the reference signal that enables vibration monitors to perform phase-related analysis.

7. Can it support predictive maintenance programs?
Yes, accurate phase reference information improves fault diagnosis and maintenance planning.

8. Is the module suitable for continuous operation?
Yes, it is designed for continuous industrial machinery monitoring applications.

9. Does it require special configuration?
Configuration depends on system requirements and the monitored machine application.

10. What is the main benefit of using this module?
It enhances machinery diagnostics by providing accurate rotational reference information.
