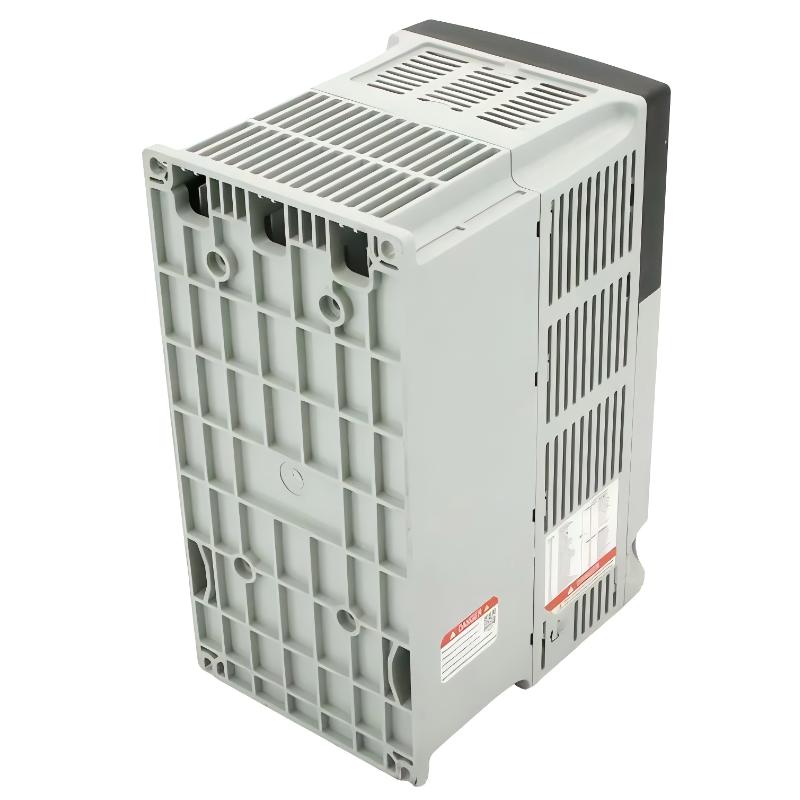

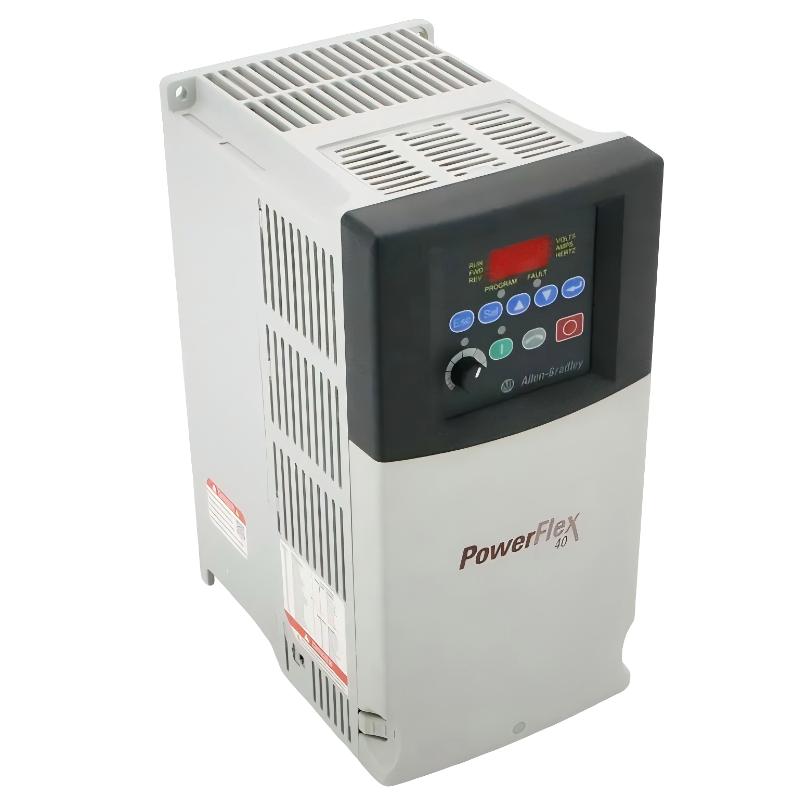

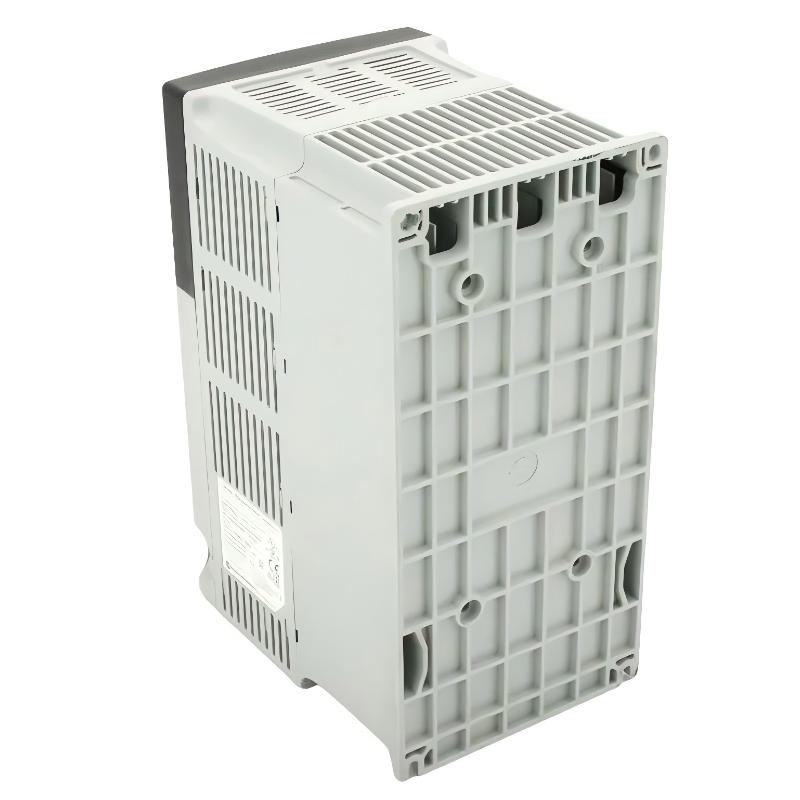

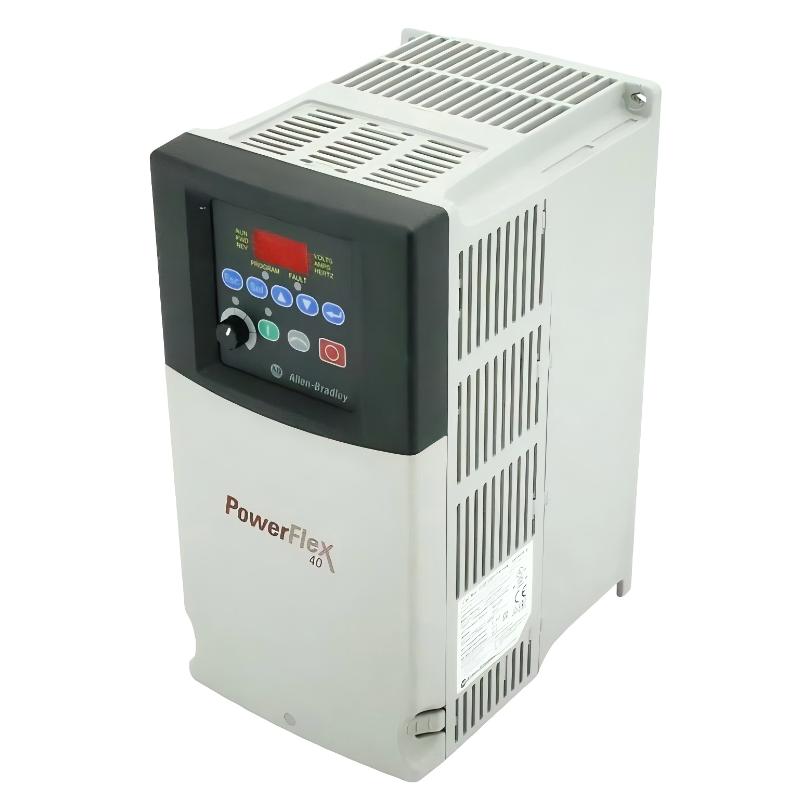

Allen Bradley 22B-D017N104 PowerFlex 40 AC Drive

Allen Bradley 22B-D017N104 PowerFlex 40 AC Drive

0.0
Points

Brand:Allen Bradley PLC
Item No.:22B-D017N104
Product Origin:USA
Product Dimensions:260 x 130 x 180 mm
Product Weight:4.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO

Add to cart

Introduction

The Allen Bradley 22B-D017N104 PowerFlex 40 AC Drive is a compact variable frequency drive designed for dependable motor speed control in industrial automation systems. It delivers stable performance for pumps, conveyors, and general machinery applications where precise speed regulation and operational reliability are essential. Its design focuses on straightforward installation, efficient motor control, and long-term durability in demanding environments.


Technical Specifications

ItemSpecification
Product SeriesPowerFlex 40
Input Voltage3-phase AC, 480V class
Output CurrentApprox. 17 A
Output Power7.5 kW / 10 HP
Control ModesV/Hz Control, Sensorless Vector Control
CommunicationRS-485 (standard configuration)
Protection FunctionsOverload, overcurrent, undervoltage, overtemperature
Cooling MethodForced air cooling
Mounting TypePanel mount (IP20 open type)
Dimensions260 mm × 130 mm × 180 mm
Weight4.3 kg

Recommended Related Models

Model NumberProduct Name
22B-D012N104PowerFlex 40 AC Drive
22B-D015N104PowerFlex 40 AC Drive
22B-D022N104PowerFlex 40 AC Drive
22B-D030N104PowerFlex 40 AC Drive

Popular Related Models

Model NumberProduct Name
22B-B004N104PowerFlex 40 AC Drive
22B-B007N104PowerFlex 40 AC Drive
22B-D010N104PowerFlex 40 AC Drive
22B-D040N104PowerFlex 40 AC Drive


Applications

• Conveyor and packaging systems
 Used in production lines requiring stable and repeatable motor speed control.

• Pump and fluid handling systems
 Applied in water treatment, HVAC circulation, and industrial pumping stations.

• Industrial fan and blower control
 Supports variable airflow regulation for energy-efficient operation.

• Material handling equipment
 Common in hoists, transport systems, and automated warehouse machinery.

• General factory automation
 Suitable for light to medium-duty industrial process control systems.


Key Advantages

• Reliable motor speed regulation
 Ensures stable process control even under fluctuating load conditions.

• Sensorless vector control performance
 Provides improved torque response without requiring feedback devices.

• Energy-saving operation
 Optimizes power consumption in variable torque applications such as pumps and fans.

• Smooth start/stop behavior
 Reduces mechanical stress and extends equipment service life.

• Built-in protection functions
 Includes overcurrent, overload, undervoltage, and thermal protection.

• Simple integration
 Easily connects with standard industrial automation and PLC systems.


Technical FAQs

1. What control methods are available in this drive?
It supports V/Hz control and sensorless vector control for flexible motor operation.

2. What is the rated output current of this model?
The drive is rated at approximately 17A depending on configuration.

3. Does it support dynamic braking?
Yes, dynamic braking is supported with appropriate external braking components.

4. Can it be used with standard induction motors?
Yes, it is designed for three-phase AC induction motors.

5. Is it suitable for continuous operation?
Yes, it is built for continuous-duty industrial environments.

6. Does it include built-in communication capability?
Yes, it supports industrial communication interfaces such as RS-485.

7. Can parameters be adjusted during operation setup?
Yes, all key parameters are configurable for application tuning.

8. Does it provide fault diagnostics?
Yes, it includes diagnostic codes for quick troubleshooting.

9. Is it compatible with PLC systems?
Yes, it integrates easily into PLC-based automation architectures.

10. Does it require frequent maintenance?
No, only routine inspection of cooling airflow and wiring connections is required.
