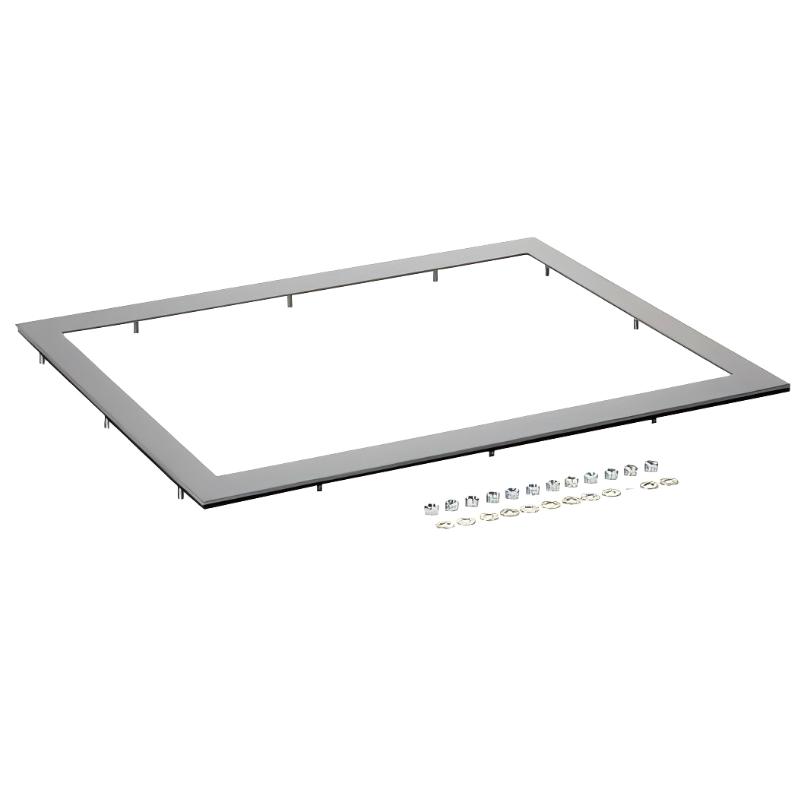

Allen Bradley 2711P-RAT15 PanelView Plus 1500 Touch Adapter
Allen Bradley 2711P-RAT15 PanelView Plus 1500 Touch Adapter
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-RAT15 Product Origin:USA Product Dimensions:441.3 x 374.6 mm Product Weight:1.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-RAT15 PanelView Plus 1500 Touch Adapter is a mechanical mounting accessory designed to simplify the installation and retrofit of PanelView Plus 1500 HMIs into existing industrial control panels. It provides a practical solution for aligning different cutout standards, helping engineers upgrade operator interfaces without modifying entire cabinet structures. This makes it particularly valuable in brownfield automation modernization projects where downtime and mechanical redesign must be minimized.
Technical Specifications
Item
Specification
Product Type
Mounting / Cutout Adapter
Compatible Series
PanelView Plus 1500 Touch / CE1500
Function
Panel cutout adaptation
Material
Industrial-grade metal structure
Application
Control panel mounting retrofit
Dimensions
441.3 × 374.6 mm
Weight
1.36 kg
Recommended Related Models
Model Number
Product Name
2711P-RAT10
PanelView Plus 1000 Touch Adapter
2711P-RAT12
PanelView Plus 1200 Cutout Adapter
2711P-RAT14
PanelView Plus 1400 Mounting Adapter
2711P-RAT15A
PanelView Plus 1500 Enhanced Adapter
Popular Related Models
Model Number
Product Name
2711P-RAT8
PanelView Plus 700 Adapter
2711P-RAT9
PanelView Plus 600 Mounting Adapter
2711P-RAT11
PanelView Plus 1000/1250 Adapter
2711P-RAT16
PanelView Plus 1500 Alternative Cutout Kit
Applications
• Panel cutout conversion in HMI upgrades
Used when replacing or retrofitting PanelView Plus 1500 terminals into different enclosure cutout standards.
• Industrial HMI modernization projects
Supports migration from older PanelView layouts to updated mounting configurations without cabinet redesign.
• OEM machine panel standardization
Helps machine builders unify different HMI installation formats across product lines.
• Retrofit of legacy automation systems
Enables reuse of existing control cabinet openings during HMI replacement or upgrade.
• Control cabinet mechanical adaptation
Provides physical compatibility between different PanelView mounting footprints.
Key Advantages
• Simplifies retrofit installation process
Reduces the need for machining or modifying existing panel cutouts.
• Improves compatibility across HMI generations
Bridges mechanical differences between PanelView Plus 1500 and other enclosure formats.
• Saves panel redesign cost and engineering time
Eliminates the need for full cabinet reconstruction during upgrades.
• Maintains stable and secure mounting alignment
Ensures proper fitment and long-term mechanical reliability.
• Industrial-grade mechanical durability
Designed for stable performance in factory environments with vibration and shock exposure.
• Supports lifecycle extension of installed systems
Allows continued use of legacy enclosures during modernization projects.
Technical FAQs
1. What is the main function of the 2711P-RAT15 adapter?
It adapts PanelView Plus 1500 touch terminals to different panel cutout configurations.
2. Is this device an electronic module?
No, it is a purely mechanical mounting adapter with no electrical functionality.
3. Which PanelView series is it compatible with?
It is designed for PanelView Plus 1500 and related CE1500 touch terminals.
4. Does it require wiring or power connection?
No, it does not require any electrical connection.
5. Can it be reused after disassembly?
Yes, it can typically be reused if not physically damaged.
6. Is it necessary for all PanelView 1500 installations?
No, only when adapting to non-standard or legacy cutout sizes.
7. Does it affect HMI performance?
No, it does not impact display or system operation.
8. Is it suitable for vibration-heavy environments?
Yes, it is designed for industrial mounting stability.
9. Can it replace a full enclosure panel redesign?
In many retrofit cases, yes—it reduces or eliminates the need for redesign.
10. Is this product still in active production?
It is a legacy accessory and availability may depend on stock and distributor channels.
