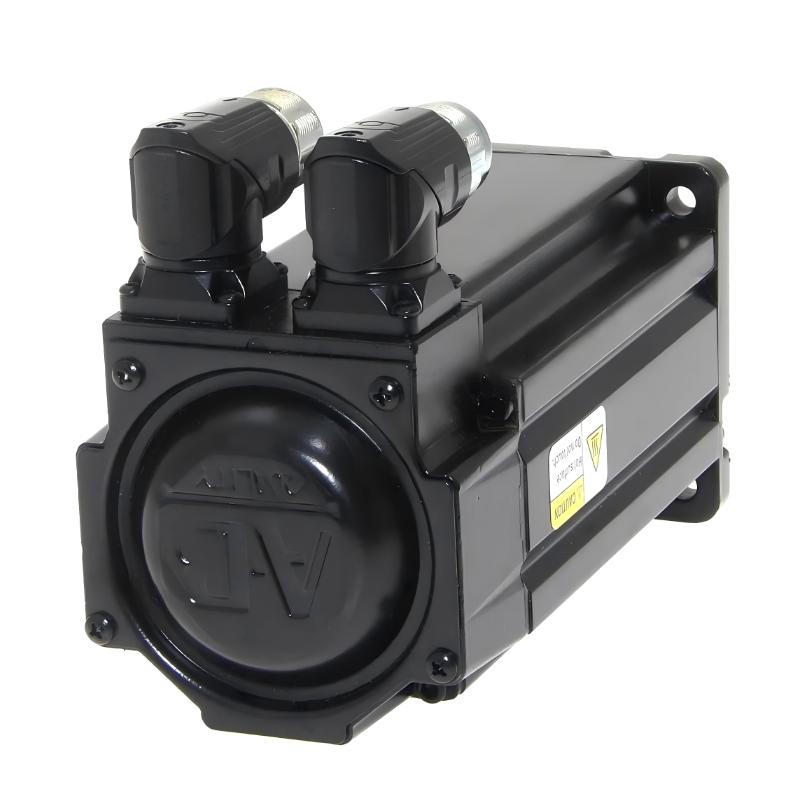

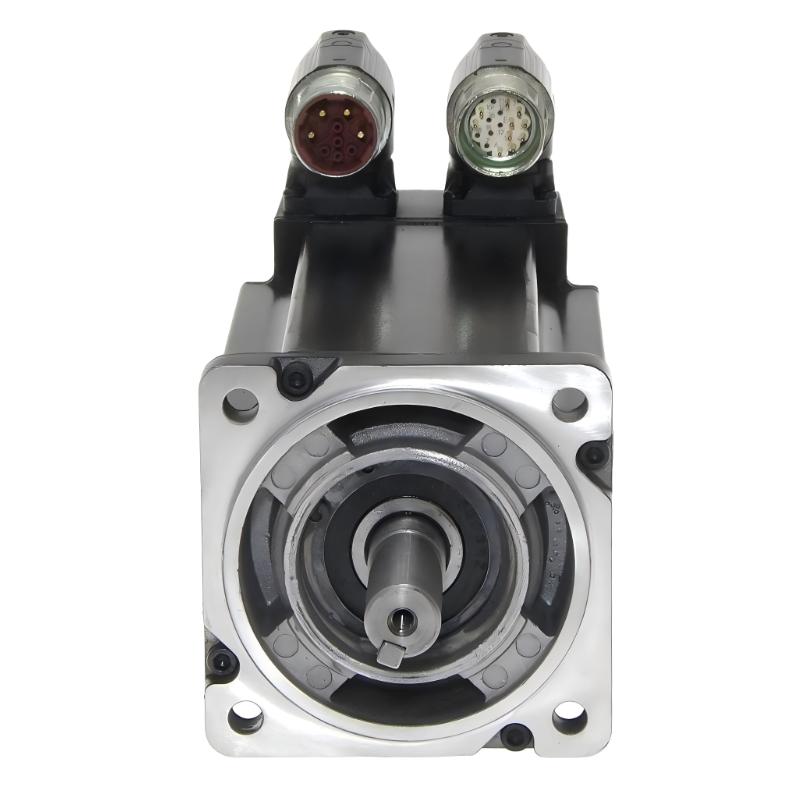

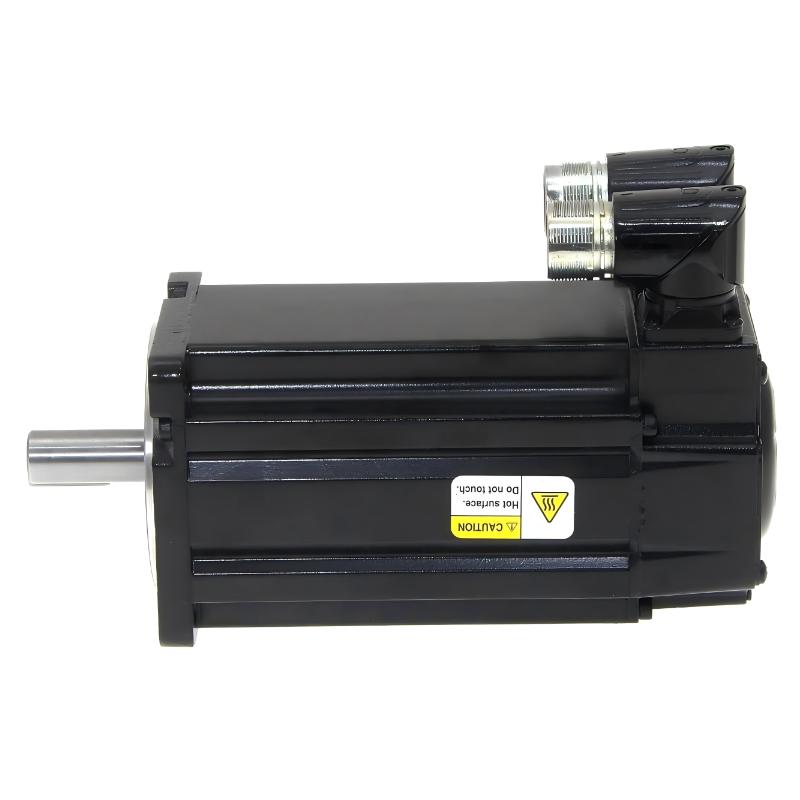

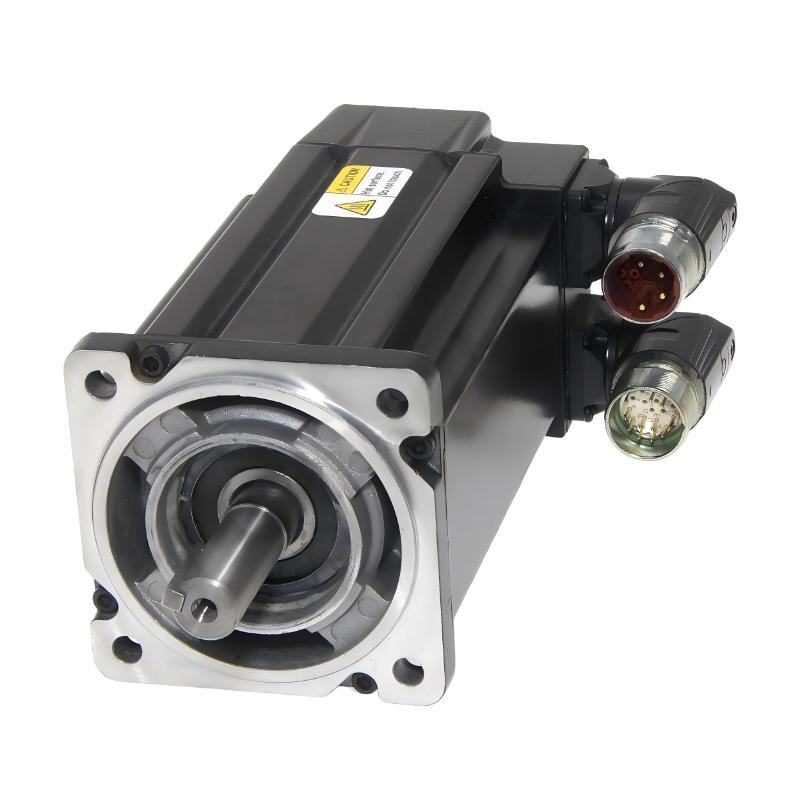

Allen Bradley MPL-B4530F-SJ74AA Servo Motor

Applications

• High-performance motion control systems
 Used in precision servo applications requiring fast dynamic response and accurate positioning.

• Packaging and automation machinery
 Common in high-speed pick-and-place, labeling, and assembly equipment.

• CNC and multi-axis machine systems
 Provides stable torque output for coordinated motion control.

• Material handling and robotics
 Used in robotic joints, indexing systems, and conveyor synchronization.

• Industrial OEM machine design
 Integrated into compact servo-driven equipment requiring high power density.

Key Advantages

• Low-inertia rotor design
 Delivers rapid acceleration and deceleration for high-speed motion cycles.

• High torque density in compact frame
 130 mm frame size provides strong output relative to motor footprint.

• 3000 rpm rated performance
 Supports demanding continuous industrial motion profiles.

• High-resolution feedback system
 Enables precise positioning and stable closed-loop control.

• Industrial-grade rugged construction
 Designed for harsh environments with vibration and continuous duty operation.

• Flexible drive compatibility
 Works with Allen-Bradley Kinetix servo drive platforms.

Technical FAQs

1. What frame size does this servo motor use?
It uses a 130 mm frame size (Frame 45 class).

2. What is the rated speed of this motor?
The motor is rated up to 3000 rpm depending on load and configuration.

3. Does it include a holding brake option?
Yes, variants may include a 24 V DC holding brake.

4. What type of encoder is used?
It uses high-resolution absolute or incremental feedback depending on version.

5. Is it suitable for continuous duty operation?
Yes, it is designed for industrial continuous-duty servo applications.

6. What drive series is compatible with it?
It is typically paired with Allen-Bradley Kinetix servo drive systems.

7. Can it be used in high-speed positioning systems?
Yes, it is designed for fast and precise positioning tasks.

8. Is it resistant to industrial environments?
Yes, it is built for industrial vibration and temperature conditions.

9. Does it support multi-axis systems?
Yes, it is commonly used in synchronized multi-axis motion setups.

10. Is this model still actively produced?
Yes, it belongs to the MP-Series and is still in active industrial use.
