Brand:Yokogawa Electric Item No.:YCB148 Product Origin:Japan Product Dimensions:Diameter: 14.5 mm Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

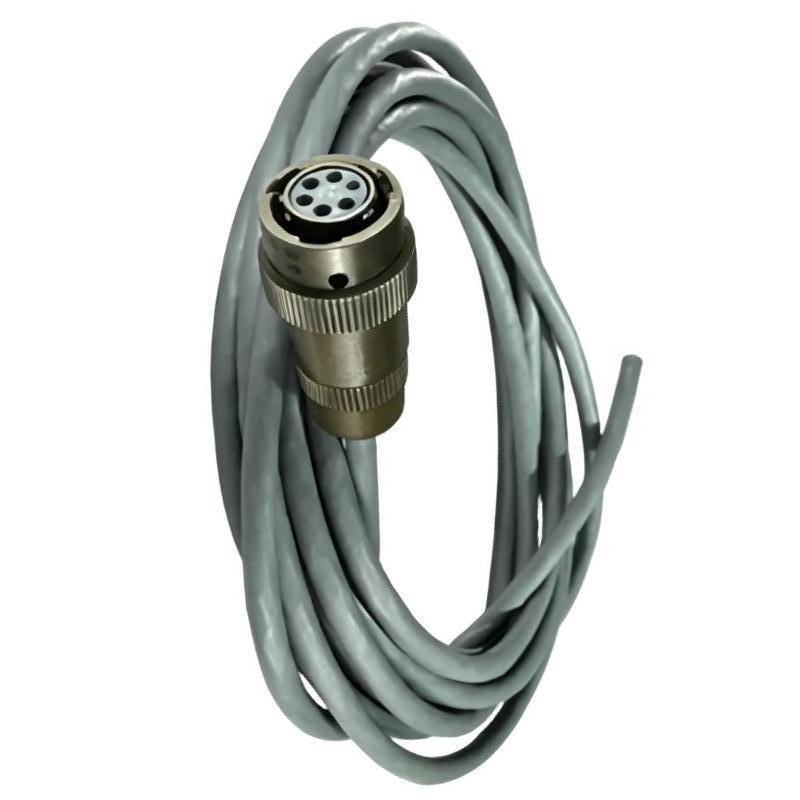

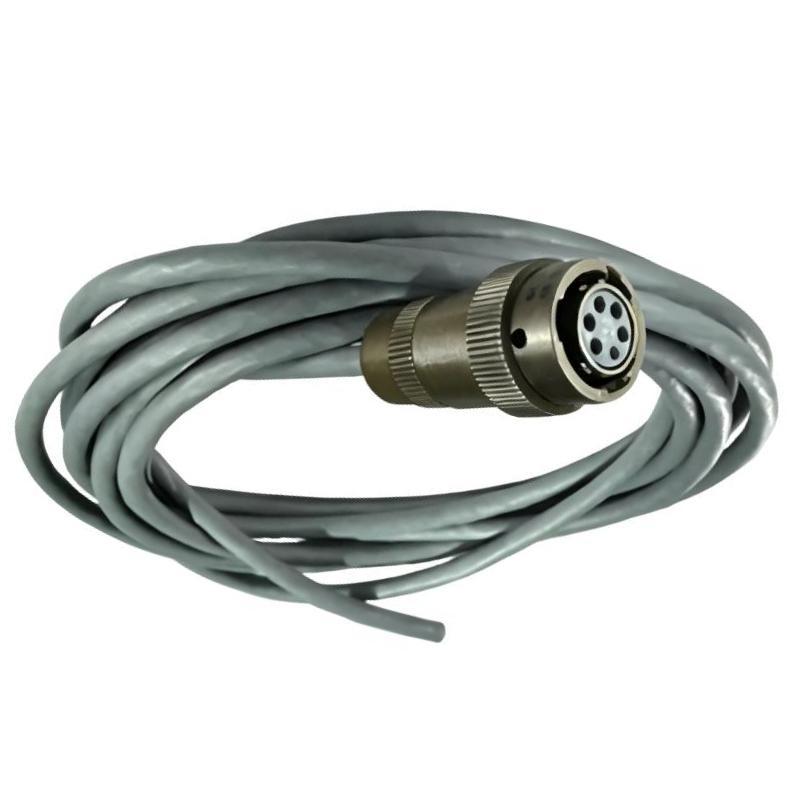

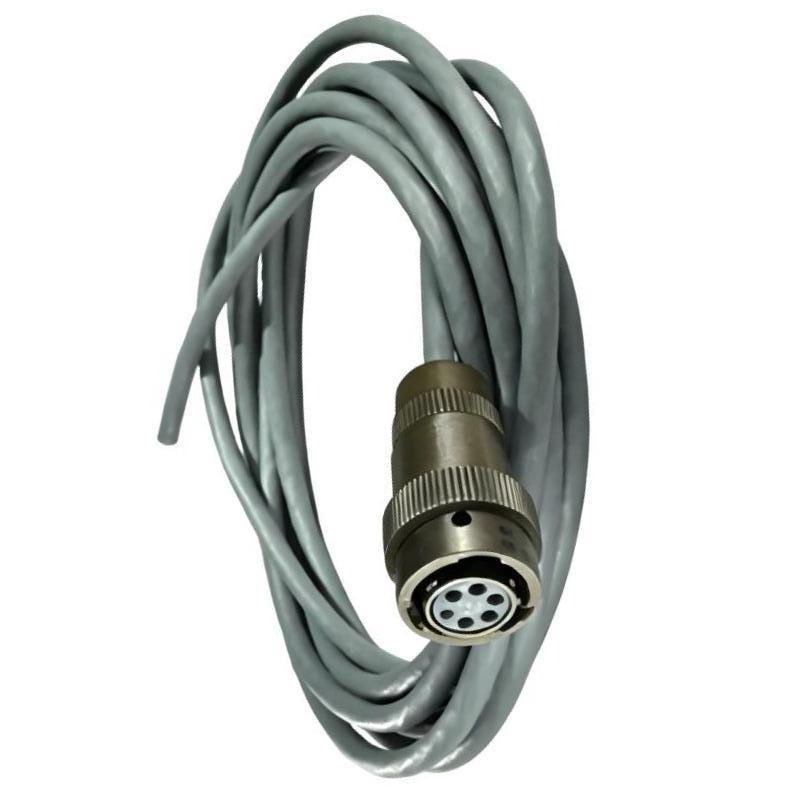

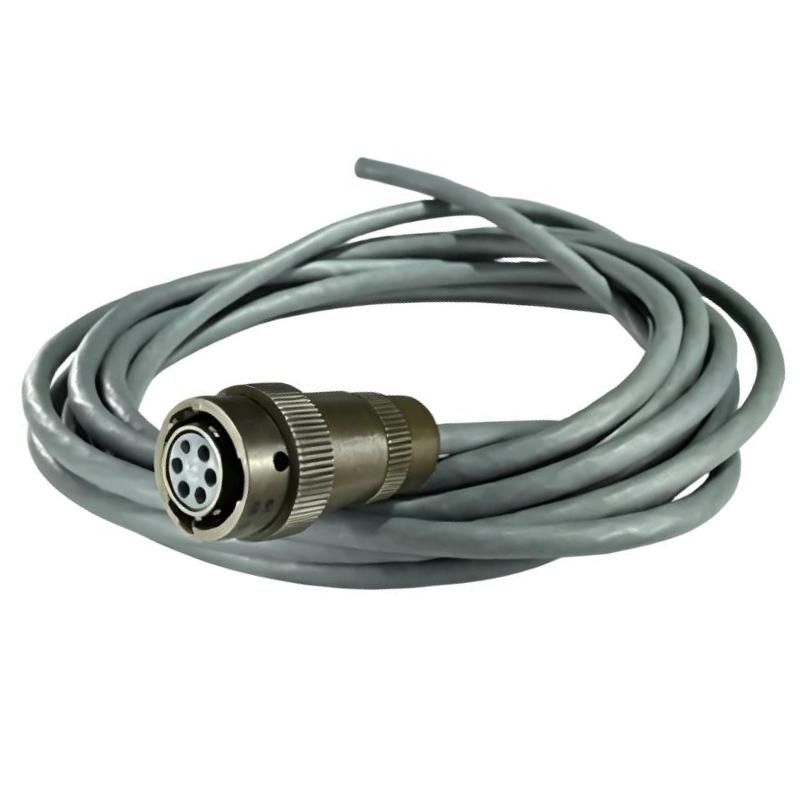

The Yokogawa YCB148 V-net Terminal is an industrial-grade end-of-line connector designed for Yokogawa CENTUM distributed control systems. With a 14.5 mm diameter, it provides reliable termination for V-net bus lines, ensuring stable communication and preventing network errors. Engineered for durability and easy installation, it is ideal for maintaining signal integrity in industrial automation panels and large-scale process control networks.
Technical Specifications
Item
Specification
Product Type
V-net Terminal Connector
Manufacturer
Yokogawa
System Compatibility
CENTUM DCS Series
Terminal Diameter
14.5 mm
Function
End-of-line network termination
Installation Type
Plug-and-play industrial wiring
Material
Industrial-grade conductive and insulating materials
Environmental Use
Industrial automation systems
Application
V-net bus termination
Shipping Weight
3 kg
Recommended Related Models
Model Number
Product Name
YCB146
T-Shaped Control Bus Connector
YCB147
L-Shaped Control Bus Connector
YCB149
Multi-Port Bus Junction Connector
YCB150
High-Durability T-Shaped Connector
Popular Related Models
Model Number
Product Name
YCB140-M002
Yokogawa Standard Bus Cable
S9756UV
Yokogawa AC Power Bus Unit
S9758UV
Yokogawa DC Power Bus Unit
ADV151-P00
Yokogawa Digital I/O Module
Applications
• DCS system network termination
Used to properly terminate V-net bus lines within Yokogawa CENTUM distributed control systems.
• Industrial control panel wiring
Applied in cabinets to ensure reliable end-of-line connectivity for control modules.
• Signal integrity maintenance
Prevents signal reflection or interference on V-net bus networks.
• System expansion and retrofits
Supports proper network termination when adding or reconfiguring modules.
• Large-scale process control systems
Ensures stable communication across multiple nodes in complex automation setups.
Key Advantages
• Compact and standardized design
14.5 mm diameter ensures compatibility with Yokogawa V-net cabling.
• Reliable electrical termination
Maintains signal integrity and reduces network errors.
• Easy installation
Plug-and-play design for quick insertion into bus lines.
• Industrial-grade durability
Built to withstand continuous operation in harsh process environments.
• Simplifies system maintenance
Facilitates proper termination and straightforward replacement when needed.
• Compatible with CENTUM DCS systems
Ensures seamless integration into Yokogawa distributed control architectures.
Technical FAQs
1. What is the main function of the YCB148 terminal?
It provides proper termination for Yokogawa V-net bus lines.
2. What systems is it compatible with?
It is designed for Yokogawa CENTUM distributed control systems.
3. What is the terminal diameter?
The diameter is 14.5 mm.
4. Is it plug-and-play?
Yes, it is designed for easy insertion into V-net bus lines.
5. Does it require configuration?
No, it is a passive hardware component with no setup required.
6. Can it be used in industrial environments?
Yes, it is built for continuous operation under harsh conditions.
7. Does it support system expansion?
Yes, it ensures proper termination when modules are added or reconfigured.
8. What is the shipping weight?
The shipping weight is approximately 3 kg.
9. Does it maintain signal integrity?
Yes, it prevents reflection and interference on V-net bus networks.
10. Is it compatible with multiple V-net cable sizes?
It is designed for standard Yokogawa V-net cables with 14.5 mm diameter.
