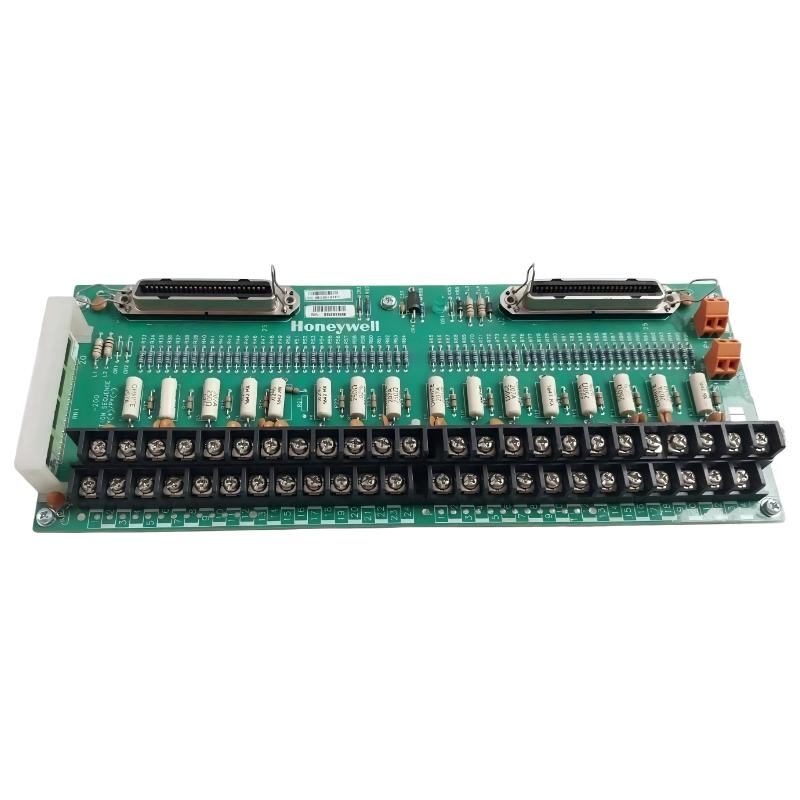

Honeywell MC-TAIH53 51309138-275 High-level Analog Input Module

Applications

• Distributed control system (DCS) analog signal acquisition
 Used to collect high-level voltage and current signals from field transmitters in Honeywell control architectures.

• Process automation monitoring systems
 Applied in oil & gas, chemical processing, and power generation plants for accurate signal measurement.

• Industrial instrumentation integration
 Interfaces with sensors, transmitters, and field devices producing standard analog outputs.

• Control cabinet I/O expansion
 Used in modular I/O racks to extend analog input capacity in large automation systems.

• Retrofit and system replacement projects
 Common in upgrading legacy Honeywell TDC / Experion-related installations.

Key Advantages

• High-precision analog signal processing
 Ensures stable and accurate conversion of field signals into control system data.

• Supports standard industrial signal ranges
 Compatible with common voltage and current inputs used in process automation.

• Multi-channel acquisition capability
 Enables efficient handling of multiple field signals in a single module.

• Industrial-grade reliability design
 Built for continuous operation in harsh electrical and thermal environments.

• Seamless integration with Honeywell DCS platforms
 Designed for native compatibility with Honeywell control system architectures.

• Stable performance under electrical noise
 Maintains signal integrity in high-EMI industrial environments.

Technical FAQs

1. What is the main function of MC-TAIH53?
It is a high-level analog input module used to acquire and process industrial analog signals in Honeywell DCS systems.

2. What types of signals does it accept?
Typically voltage (0–10 V) and current (4–20 mA) signals depending on configuration.

3. How many input channels does it support?
It commonly supports multiple channels (system configuration dependent, typically up to 16 in related variants).

4. Is it a standalone device?
No, it must be installed in a compatible Honeywell I/O system rack or termination assembly.

5. What system is it used with?
It is used in Honeywell industrial control platforms such as Experion and related DCS architectures.

6. Does it require external power?
Yes, it operates on a 24 V DC system supply.

7. Is it suitable for 4–20 mA sensors?
Yes, it is commonly used with standard industrial current loop transmitters.

8. Can it be replaced in the field?
Yes, but only in controlled maintenance conditions with proper ESD precautions.

9. Is it a safety-rated module?
No, it is a standard analog input module rather than a safety instrumented device.

10. What industries use it most?
It is widely used in process industries such as oil & gas, chemical, and power generation.
