Brand:Honeywell DCS Item No.:51153818-103 Product Origin:USA Product Dimensions:50 x 20 x 30 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

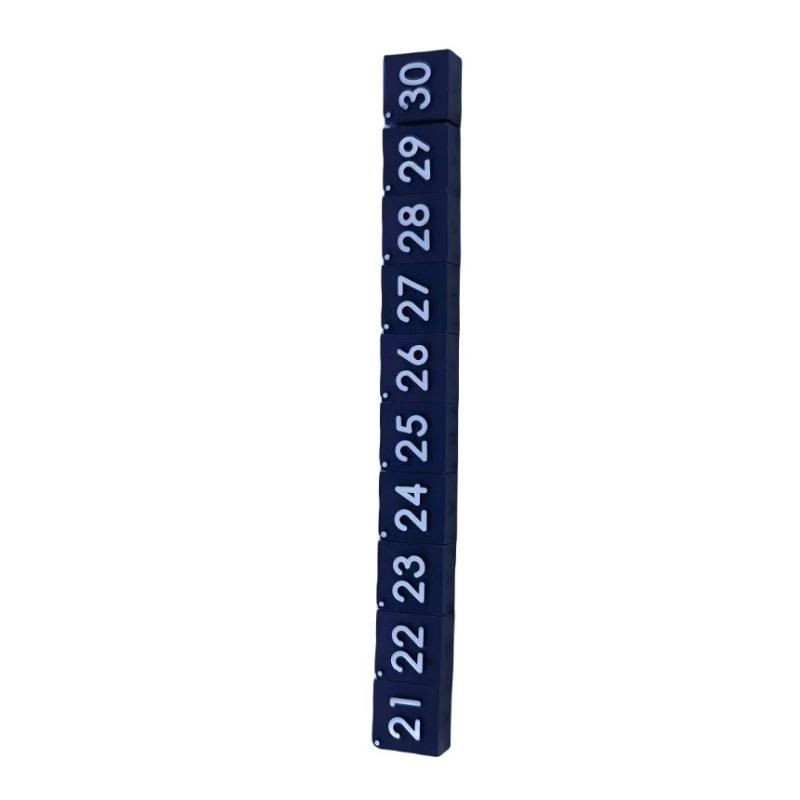

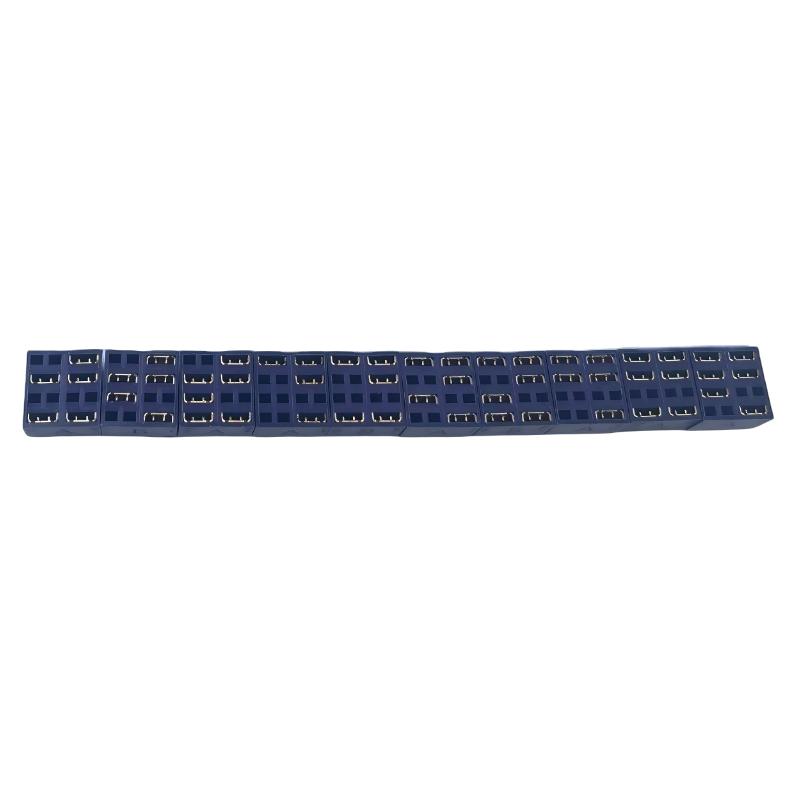

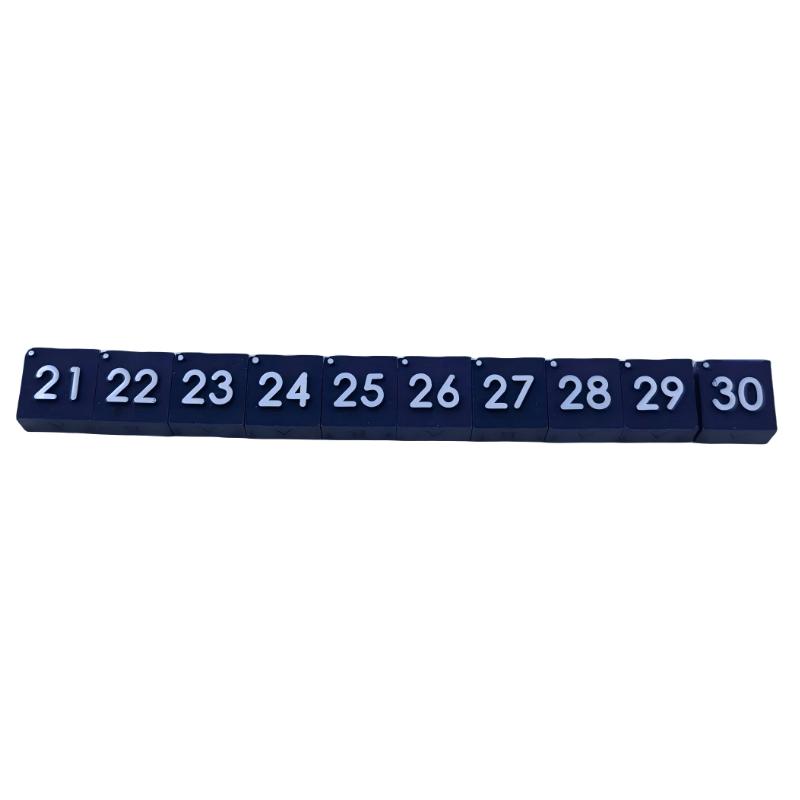

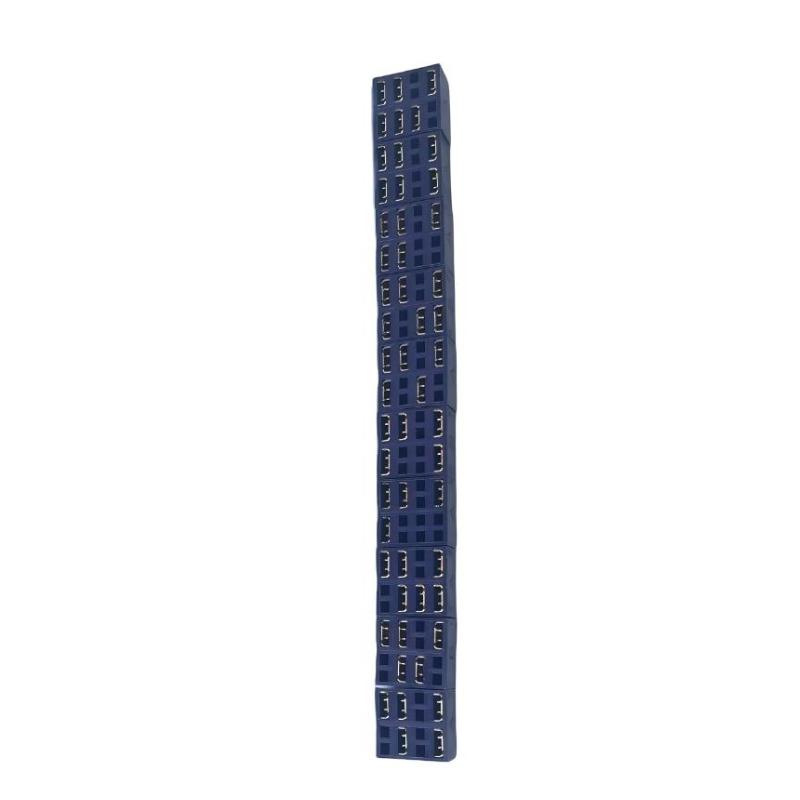

The Honeywell 51153818-103 Jumper Kit is an industrial configuration accessory used in Honeywell automation systems. It provides a set of hardware jumpers that allow engineers to define system behavior at the module level. Designed for use in demanding process control environments, it supports fast and reliable configuration during commissioning, maintenance, and system troubleshooting tasks without requiring wiring changes or software modifications.
Technical Specifications
Item
Specification
Product Type
Jumper Kit
Manufacturer
Honeywell
Part Number
51153818-103
Function
Hardware configuration / system setting adjustment
System Compatibility
Honeywell industrial control systems (platform dependent)
Material
Industrial-grade conductive jumper elements
Installation Type
Plug-in configuration accessory
Application
Control system setup and maintenance
Environmental Use
Industrial automation systems
Dimensions
50 × 20 × 30 mm
Weight
0.1 kg
Recommended Related Models
Model Number
Product Name
51153818-101
Honeywell Jumper Kit Standard Version
51153818-102
Honeywell Extended Jumper Kit
51153819-101
Honeywell I/O Configuration Kit
51153817-101
Honeywell Control Board Jumper Set
Popular Related Models
Model Number
Product Name
MC-TAIH53
Honeywell High-Level Analog Input Module
MC-TDOD1
Honeywell Digital Output Module
51309138-275
Honeywell Analog Input System Module
51401497-100
Honeywell System Interface Module
Applications
• Industrial control system configuration
Used for setting hardware jumpers in Honeywell automation and DCS modules.
• Control cabinet commissioning and setup
Applies during system startup to define functional parameters on I/O boards.
• Maintenance and troubleshooting operations
Used by engineers to restore or adjust module configuration in service conditions.
• Process automation system adjustment
Supports flexible reconfiguration of control logic at hardware level.
• Legacy Honeywell system support
Common in C200 / C300-related industrial control environments.
Key Advantages
• Precise hardware configuration control
Enables reliable adjustment of system settings without rewiring.
• Compact and easy-to-install design
Suitable for dense industrial control cabinets.
• Stable electrical contact performance
Ensures consistent configuration signal integrity.
• Reduces commissioning time
Speeds up setup during installation and maintenance phases.
• Color-coded identification design
Improves clarity and reduces installation errors.
• Compatible with Honeywell control platforms
Designed for use within Honeywell industrial automation systems.
Technical FAQs
1. What is the main function of the 51153818-103 jumper kit?
It is used to configure hardware settings on Honeywell control and I/O modules.
2. What systems is it used with?
It is commonly used in Honeywell industrial control and DCS systems such as C200 platforms.
3. What does the kit include?
It includes multiple jumper pieces used for different configuration settings.
4. Is it an active electronic component?
No, it is a passive hardware configuration accessory.
5. Can it be reused?
Yes, jumpers can typically be reused during maintenance or reconfiguration.
6. Does it require software setup?
No, configuration is entirely hardware-based.
7. Should power be off during installation?
Yes, the system should be powered down before changing jumper settings.
8. What is its main purpose in DCS systems?
It defines hardware-level input/output and system behavior settings.
9. Is it compatible with all Honeywell modules?
No, compatibility depends on the specific module design.
10. Is it used in field maintenance?
Yes, it is commonly used for commissioning and repair work.
