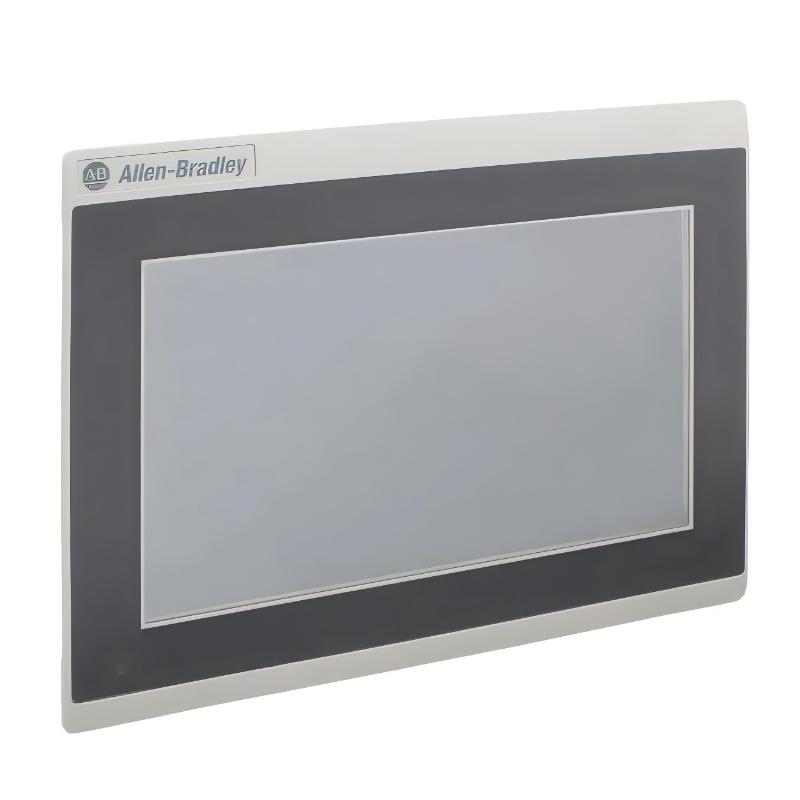

Allen Bradley 2711R-T7T PanelView 800 HMI Terminal
Allen Bradley 2711R-T7T PanelView 800 HMI Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:2711R-T7T Product Origin:USA Product Dimensions:197 x 54 x 144 mm Product Weight:0.651 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 2711R-T7T PanelView 800 is a mid-size human–machine interface designed to bridge PLC control systems with operator-level visualization in compact industrial environments. It provides a balance between usability, cost efficiency, and industrial reliability.
With its 7-inch display and streamlined engineering workflow, it is widely adopted in OEM machinery and small automation systems where dependable operation and fast deployment are critical design priorities.
Technical Specifications
Parameter
Specification
Model
2711R-T7T
Series
PanelView 800
Display Size
7-inch TFT widescreen
Resolution
800 × 480 pixels
Touch Type
Resistive touchscreen
Communication Ports
Ethernet, RS-232, RS-422, RS-485, USB
Input Voltage
18–32 V DC (24 V DC nominal)
Power Consumption
Up to 11 W
Processor
Industrial embedded CPU (~800 MHz class)
Memory
256 MB RAM / 256 MB Flash
Storage
USB / microSD support (up to 32 GB)
Operating System
Embedded industrial OS
Mounting Type
Panel mount
Operating Temperature
0°C to 50°C
Dimensions
197 × 54 × 144 mm
Weight
0.651 kg (1.44 lb)
Applications
The Allen-Bradley 2711R-T7T PanelView 800 HMI Terminal is designed for compact industrial automation systems that require reliable operator interaction, basic visualization, and seamless PLC connectivity in space-efficient control panels.
It is commonly used in:
Micro800 and MicroLogix-based machine control systems
Small-to-medium OEM equipment HMI interfaces
Packaging, labeling, and light assembly automation lines
Pump, fan, and HVAC control systems
Simple production monitoring and status indication panels
Distributed machine-level control stations
Basic alarm display and operator input terminals
This model is particularly effective in cost-sensitive automation projects where stability and ease of integration are more important than advanced graphics or high-performance computing.
Advantages
7-inch widescreen industrial touchscreen for balanced visibility and compact footprint
Native compatibility with Micro800 and MicroLogix controllers
Multi-protocol communication support (Ethernet and serial interfaces)
Rugged resistive touchscreen designed for industrial glove operation
Fast boot and responsive operator interface performance
Integrated USB and microSD storage support for project transfer
Stable long-life LED backlight with industrial durability
Easy commissioning for OEM machine builders
Reliable operation in electrically noisy industrial environments
Compact design optimized for tight panel installations
Technical FAQs (10 Technical Questions)
1. Which PLC families are best suited for the 2711R-T7T?
It is optimized for Micro800 and MicroLogix controller systems.
2. Does it support EtherNet/IP communication?
Yes, it supports EtherNet/IP depending on controller and firmware configuration.
3. Can it connect via serial communication?
Yes, it supports RS-232, RS-485, and RS-422 serial communication.
4. Is the touchscreen resistive or capacitive?
It uses an industrial-grade resistive touchscreen.
5. Does it support USB or SD card storage?
Yes, it supports USB host and microSD card expansion.
6. Can it be used with CompactLogix PLCs?
Limited compatibility exists, but it is not the primary target platform.
7. Does it support alarm handling functions?
Yes, it supports basic HMI alarm and event display functionality.
8. Is remote access available?
Some firmware versions support remote monitoring features depending on configuration.
9. Is it suitable for harsh industrial environments?
Yes, it is designed for vibration, EMI, and temperature variation resistance.
10. Is this model still supported?
Yes, it remains part of the active PanelView 800 product family.
