The ABB AX645 is an advanced analog output module designed to provide high-precision output signals for industrial automation and process control systems. As part of ABB’s 800xA and Freelance control systems, the AX645 module offers seamless integration with a variety of industrial applications. With its high-resolution output, flexible output ranges, and robust design, the AX645 is ideal for controlling field devices such as actuators, motors, and valves. It ensures accurate and reliable analog signal transmission for critical control tasks, whether in energy management, manufacturing, process control, or building automation. Its user-friendly design, coupled with industry-standard communication protocols, makes it a versatile and essential solution for optimizing performance in industrial systems.

Technical Specifications

Feature	Specification
Model	ABB AX645
Module Type	Analog Output Module
Number of Channels	8 (Single-ended Outputs)
Output Range	0-10V, 4-20mA, ±10V
Resolution	16-bit
Accuracy	±0.1% of full scale
Output Impedance	< 1 Ω
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions	144mm x 130mm x 30mm
Weight	0.3 kg
Mounting Type	DIN Rail Mountable
Power Consumption	4W
Communication Protocol	Modbus RTU, Profibus DP, Ethernet/IP

Recommended Related Models
For applications that require more output channels or advanced features, consider the following related ABB models:

ABB AX640 – A higher-capacity model with more output channels, designed for larger systems or more complex applications requiring enhanced analog output capabilities.
ABB AX610 – A versatile model offering a mix of analog and digital I/O, ideal for specialized applications with multiple input/output requirements.
ABB AX532 – A compact and cost-effective model designed for smaller applications with basic analog output needs but still offering reliable performance.

Popular Allen Bradley Models

For comparison, here are some Allen Bradley models commonly used in similar applications:

Allen Bradley 1756-OA8 – An 8-channel analog output module that provides flexible output ranges and precision for a variety of industrial tasks.
Allen Bradley 1734-OA8 – A compact 8-channel model suitable for space-constrained environments, providing reliable and accurate output control.

Applications
The ABB AX645 module is designed for a wide range of industrial applications that require precise and reliable analog output control:

Industrial Automation – The AX645 is used to control actuators, valves, motors, and other industrial equipment in automated manufacturing processes, ensuring smooth and accurate operation.
Process Control – The AX645 is essential in industries like chemicals, pharmaceuticals, and food processing, where precise control over parameters such as flow, temperature, and pressure is critical.
Energy Management – Widely used in power distribution, renewable energy systems, and smart grid applications, the AX645 helps optimize energy usage and system efficiency.
Building Automation – Integrated into smart building systems, the AX645 controls HVAC, lighting, and other systems to improve energy efficiency and enhance occupant comfort.

Advantages

High Accuracy: The AX645 offers ±0.1% full-scale accuracy, ensuring precise and reliable output control for critical applications.
Flexible Output Range: The module supports output ranges of 0-10V, 4-20mA, and ±10V, making it compatible with a wide variety of field devices and control systems.
16-Bit Resolution: With 16-bit resolution, the AX645 provides high-quality control with fine-grained output precision.
Wide Temperature Range: The AX645 operates in temperatures ranging from -20°C to 60°C, making it suitable for use in diverse industrial environments.
Compact and Easy to Install: The compact design and DIN rail mounting system allow for easy integration into control panels and systems, even in tight spaces.
Seamless Integration: Supports Modbus RTU, Profibus DP, and Ethernet/IP communication protocols, ensuring smooth integration with various industrial networks and control systems.

Technical FAQs

What is the output range of the ABB AX645?
The AX645 supports output ranges of 0-10V, 4-20mA, and ±10V, providing flexibility for a variety of field devices.
How many output channels does the ABB AX645 have?
The AX645 features 8 single-ended output channels, allowing for simultaneous control of multiple devices.
What is the resolution of the ABB AX645?
The AX645 offers 16-bit resolution, ensuring fine control and high precision over output signals.
What is the accuracy of the ABB AX645?
The AX645 provides ±0.1% full-scale accuracy, ensuring consistent and reliable output for precise control.
How is the ABB AX645 mounted?
The AX645 is designed for DIN rail mounting, making installation quick and easy in control panels.
Which communication protocols are supported by the ABB AX645?
The AX645 supports Modbus RTU, Profibus DP, and Ethernet/IP protocols, making it compatible with a wide range of industrial communication networks.
What is the operating temperature range of the ABB AX645?
The AX645 operates within a temperature range of -20°C to 60°C, making it ideal for use in various industrial environments.
Which industries benefit from the ABB AX645?
The AX645 is ideal for industrial automation, process control, energy management, and building automation applications that require reliable analog output control.
What is the power consumption of the ABB AX645?
The AX645 consumes 4W of power, ensuring efficient operation without excessive energy use.
Can the ABB AX645 be used in hazardous environments?
The AX645 is designed for standard industrial environments. For use in hazardous areas, additional safety measures or certifications may be required.

Look forward to your comments!Comment

Latest comments

Tags:	AX645 3BHB001914R1

ABB PLC

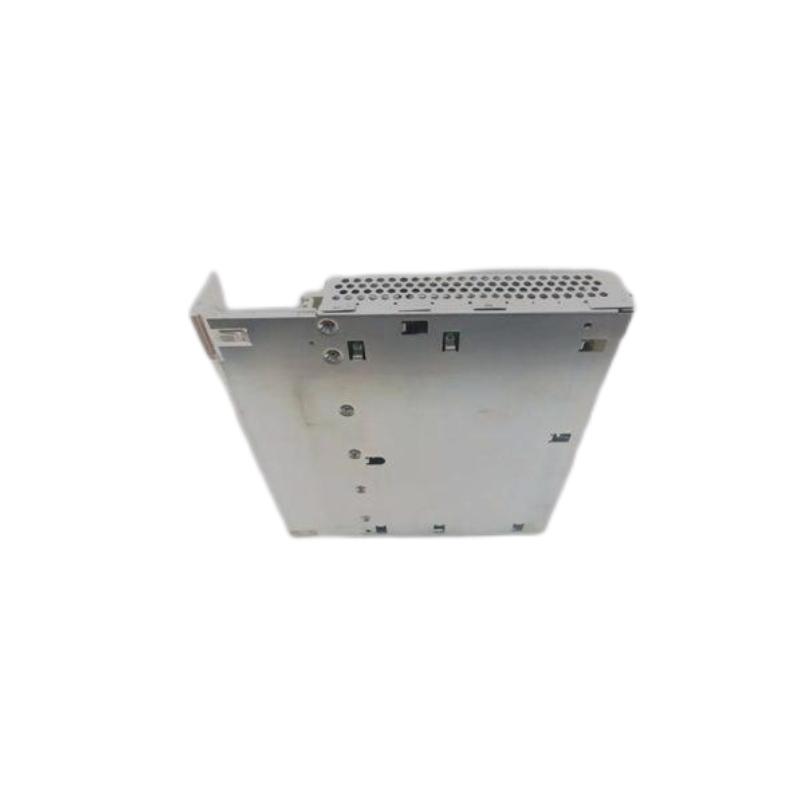

ABB AX645 3BHB001914R1 Analog Output Module durable
