Brand:Allen Bradley PLC Item No.:TLY-A2540P-HK62AA Product Origin:USA Product Dimensions:Frame Size: 90 mm Product Weight:2.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

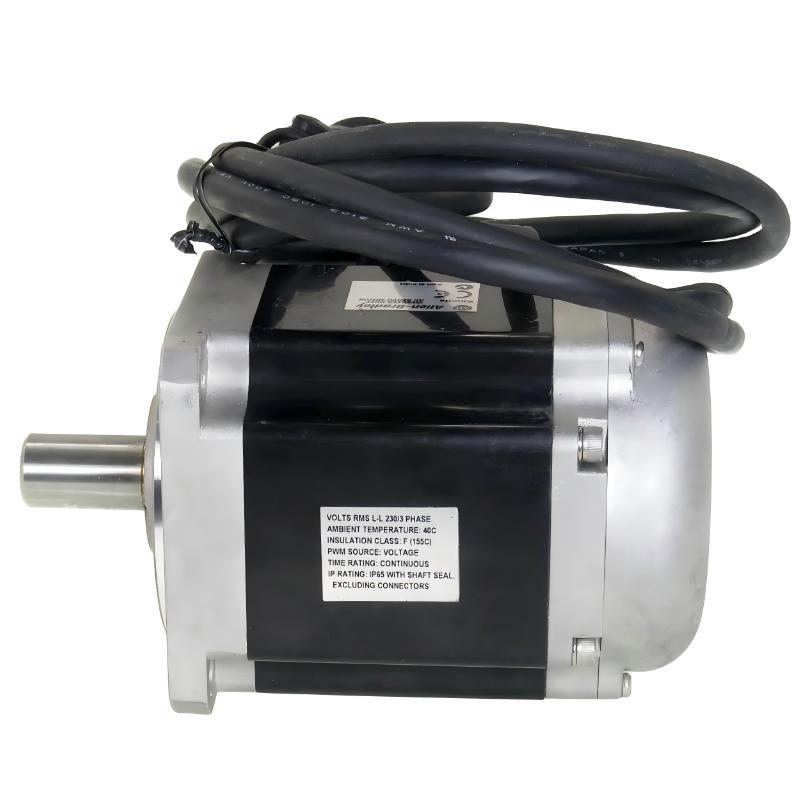

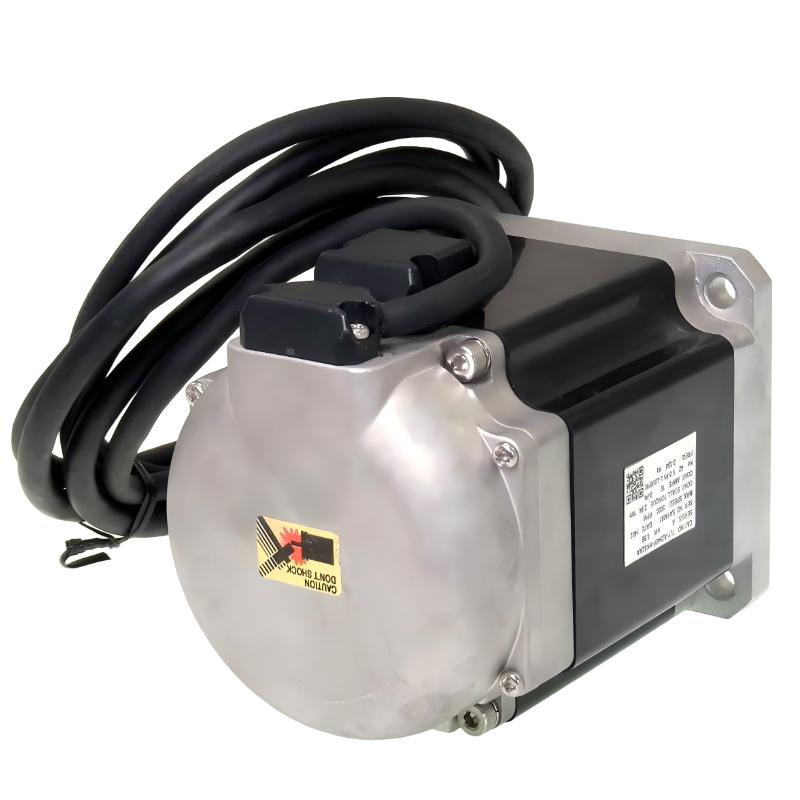

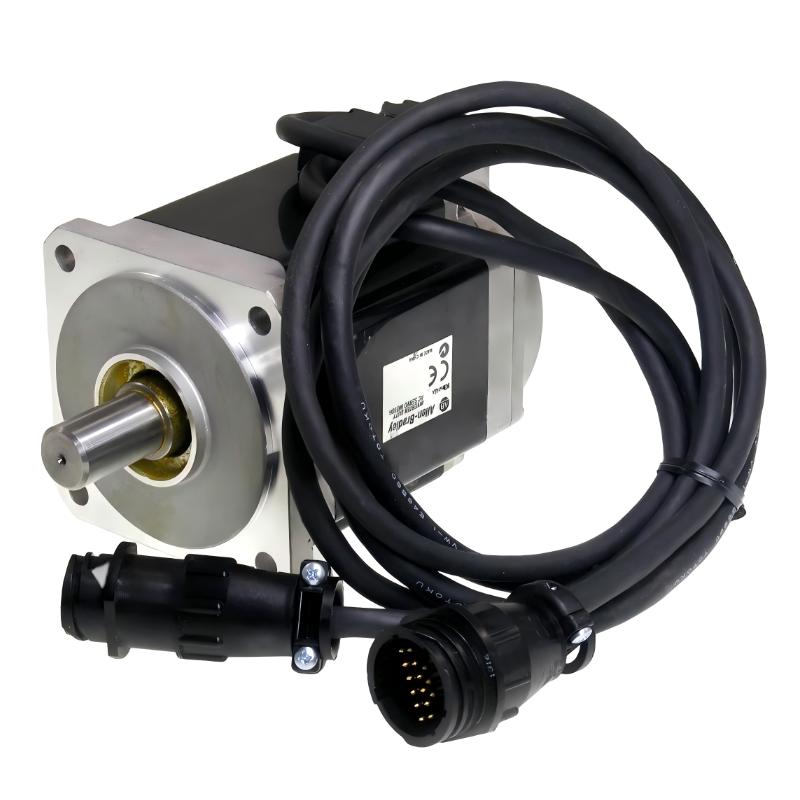

The Allen-Bradley TLY-A2540P-HK62AA TL-Series Servo Motor is a compact, high-performance rotary servo motor designed for precision motion applications in industrial automation. It delivers fast response, stable control, and reliable performance in systems requiring accurate positioning and dynamic speed control.
Technical Specifications
Parameter
Specification
Product Type
Rotary Servo Motor
Series
TL-Series TLY
Frame Size
90 mm (Frame 25)
Rated Voltage
230 V AC
Rated Speed
5000 rpm
Rated Torque
2.94 Nm
Feedback
2000-line incremental encoder
Protection Rating
IP65
Brake
No brake (variant-dependent)
Mounting
IEC/NEMA 34 compatible flange
Connector Type
Circular industrial connectors
Weight
2.6 kg
Recommended Related Models
Model
Product Name
TLY-A2540P-BJ62AA
TL-Series 90 mm Absolute Encoder Servo Motor
TLY-A220P-BJ62AA
TL-Series 70 mm Compact Servo Motor
MPL-A330P-MJ72AA
MP-Series 100 mm Low-Inertia Servo Motor
MPL-A230P-MJ72AA
MP-Series Compact Servo Motor 230V
Popular Related Models
Model
Product Name
TLY-A2540P-HJ62AA
TL-Series Servo Motor with Alternative Encoder Option
TLY-A230P-BJ62AA
TL-Series 70 mm Frame Servo Motor
MPL-B320P-MJ72AA
MP-Series 90 mm Servo Motor 480V Class
MPL-A430P-MJ72AA
MP-Series High Torque Servo Motor
Applications
• High-speed packaging and labeling machinery requiring precise positioning control
• Compact robotics systems and light-duty pick-and-place automation
• Conveyor synchronization systems in electronics and assembly production lines
• CNC auxiliary axis and feeder mechanisms in industrial machine tools
• Automated inspection and testing equipment with fast response motion
• General industrial motion systems using Kinetix servo drive platforms
Key Advantages
• Compact 90 mm frame size enables installation in space-constrained machines
• Low-inertia rotor design provides fast acceleration and precise dynamic response
• High-speed capability up to 5000 rpm for demanding motion applications
• 2000-line incremental encoder ensures stable and accurate feedback control
• IP65-rated enclosure improves durability in harsh industrial environments
• Seamless compatibility with Allen-Bradley Kinetix servo drive systems
• Optimized torque-to-size ratio for efficient machine design
Technical FAQs
1. What drive systems is this motor compatible with?
It is designed for Allen-Bradley Kinetix servo drives such as Kinetix 5500, 5700, and similar platforms.
2. Does it include a brake option?
This variant is typically configured without a brake.
3. What type of feedback does it use?
It uses a 2000-line incremental encoder for position feedback.
4. Is it suitable for high-speed applications?
Yes, it supports operation up to 5000 rpm.
5. What is the frame size of this motor?
It uses a 90 mm (Frame 25) industrial servo motor format.
6. Can it be used in multi-axis systems?
Yes, it is commonly used in synchronized multi-axis motion systems.
7. Is it suitable for harsh environments?
Yes, it has an IP65-rated enclosure for industrial protection.
8. Does it support absolute positioning?
This specific variant uses incremental feedback; absolute versions exist in the same series.
9. Is tuning required after installation?
Yes, tuning is required through the connected servo drive system.
10. What industries commonly use this motor?
It is widely used in packaging, electronics, OEM machinery, and automation systems.
