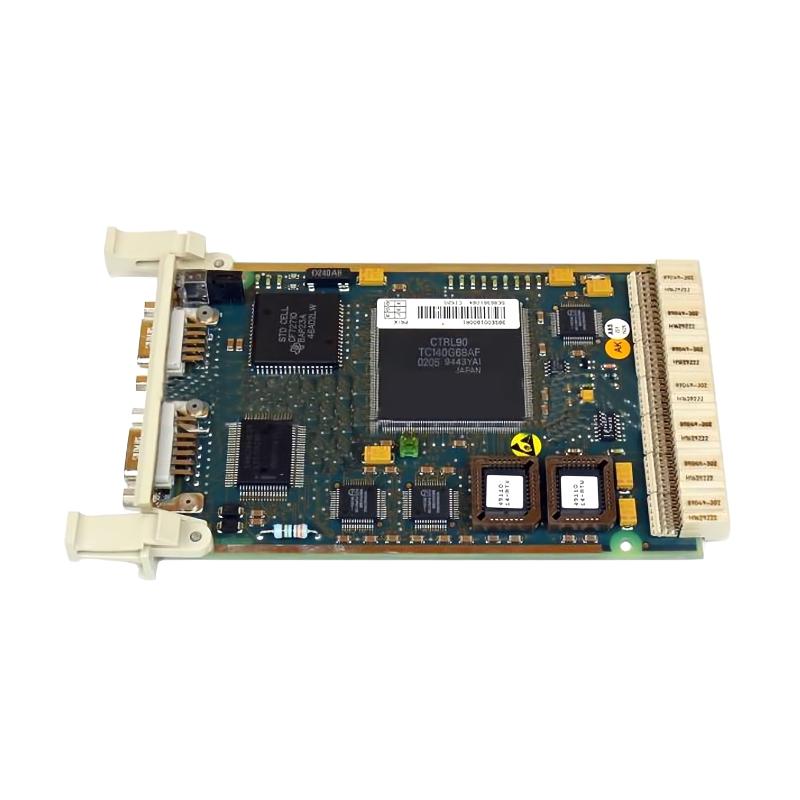

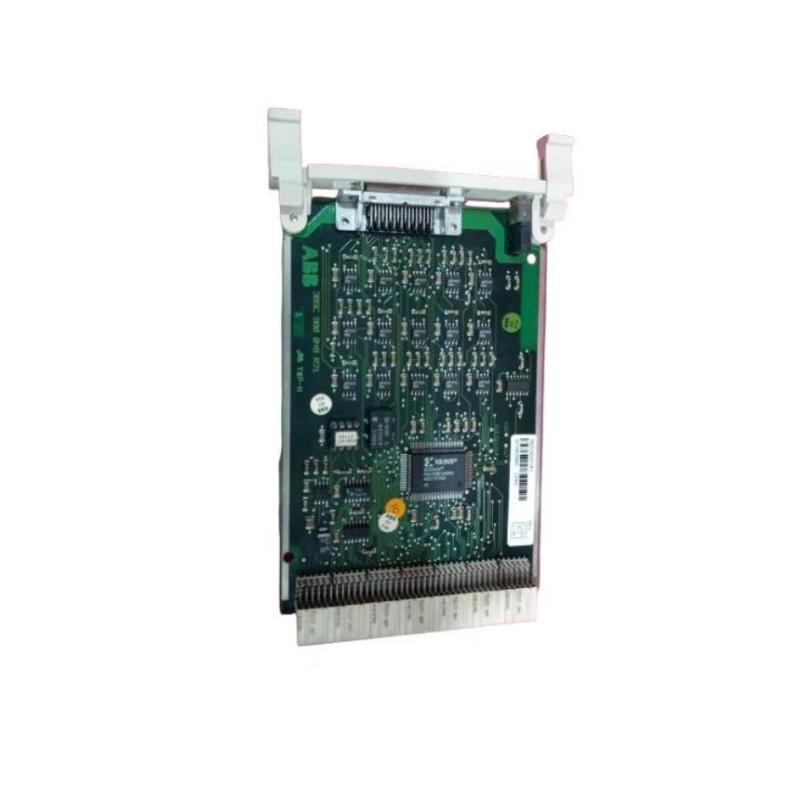

The ABB CI520 is a reliable communication interface module designed for industrial automation systems, particularly compatible with ABB Advant Controller 400 series. It enables secure and high-speed data exchange between controllers and distributed field devices. With a compact design, clear status indicators, and robust electrical interfaces, the CI520 ensures smooth and dependable communication in distributed control environments. Ideal for process automation, manufacturing systems, and energy management, this module delivers efficient connectivity while helping reduce downtime and improve overall system performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB CI520 |
| Module Type | Communication Module |
| Compatible Series | Advant Controller 400 Series |
| Connector Type | 9-pin D-sub Female |
| Communication Ports | 2 × RS-485 (Bus connections X8 & X9) |
| Output Voltage | RS-485, GND, 24 V |
| Maximum Output Current | 60 mA |
| Input Impedance | 12 kΩ |
| Supply Voltage | +5 V and +24 V |
| Power Consumption | 3.7 W (+5 V) + 2 × 2.5 W (+24 V) |
| Operating Temperature | −10 °C to +60 °C |
| Status Indicators | Run and Fault LEDs |
| Mounting Type | DIN Rail or Submodule Carrier |
| Dimensions (L×W×H) | 90 mm × 100 mm × 45 mm |
| Weight | 0.15 kg |
