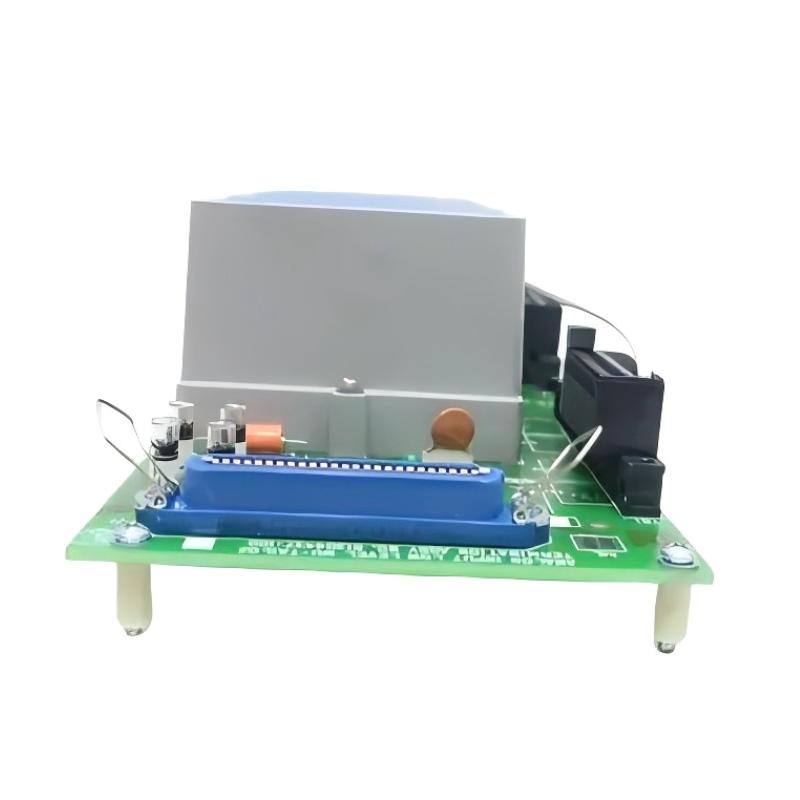

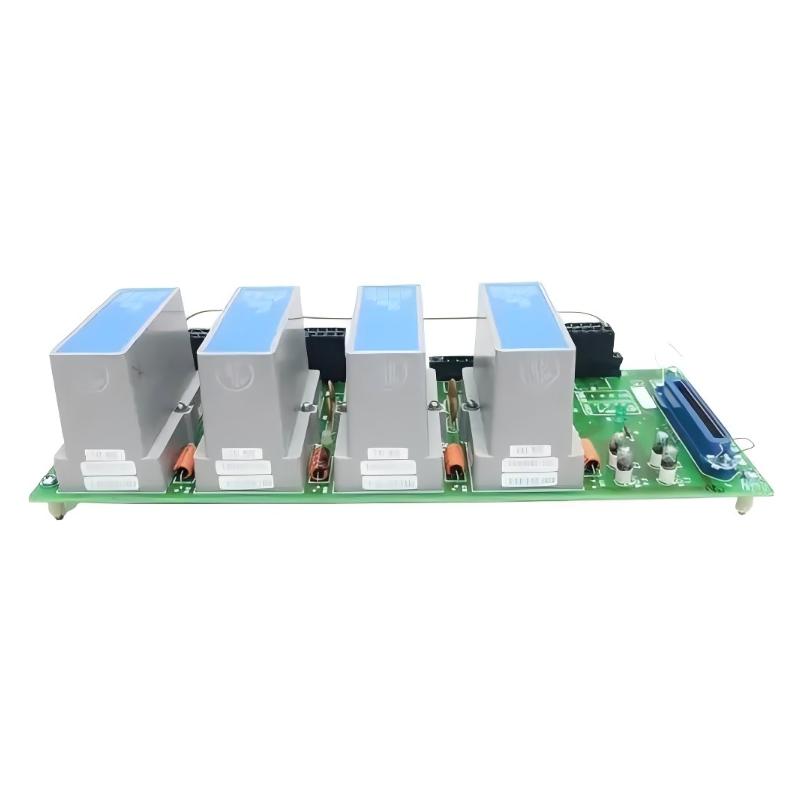

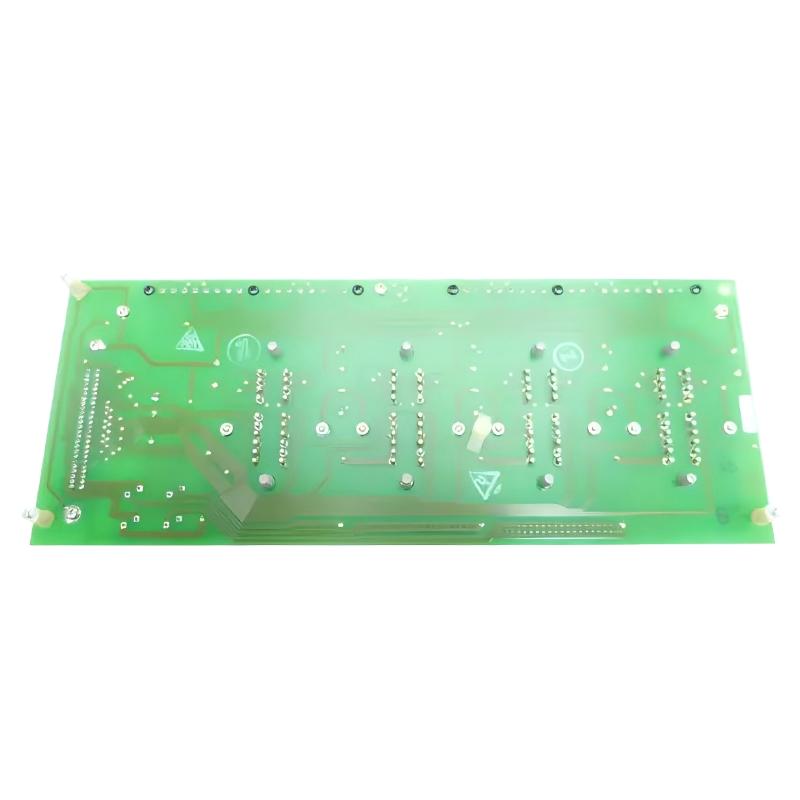

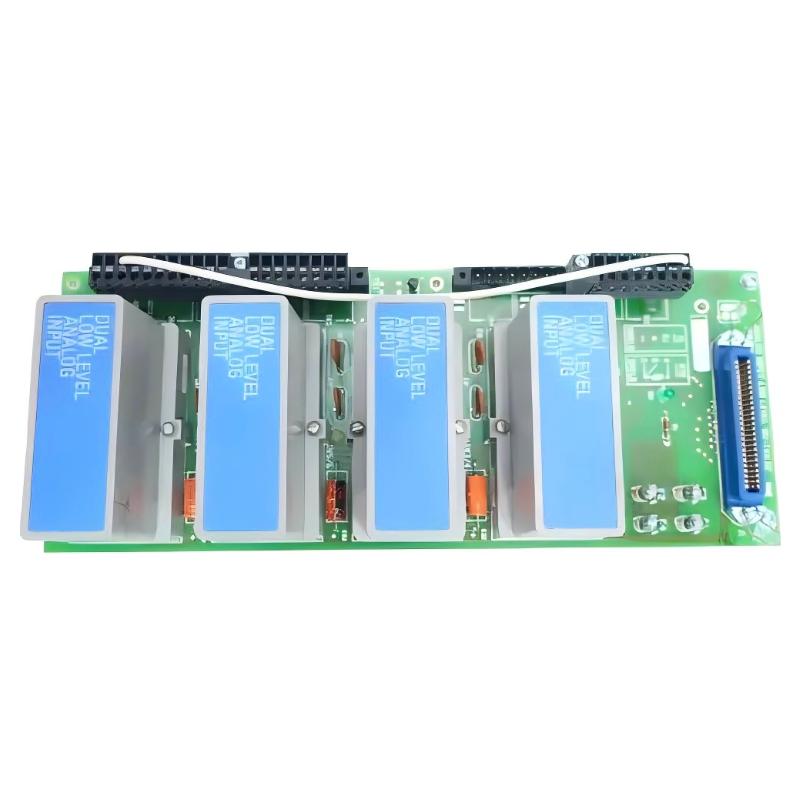

Honeywell MU-TAIL03 51309202-125 Low-level Analog Input Module
Honeywell MU-TAIL03 51309202-125 Low-level Analog Input Module
0.0
Points
Brand:Honeywell DCS Item No.:MU-TAIL03 Product Origin:USA Product Dimensions:114 x 305 x 44 mm Product Weight:0.75 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell MU-TAIL03 (51309202-125) is a low-level analog input module designed for precise acquisition of weak electrical signals in industrial process control systems. It plays a critical role in Honeywell distributed control architectures by converting sensitive analog inputs into reliable digital data for control processing.
Technical Specifications
Parameter
Specification
Product Type
Low-Level Analog Input Module
Part Number
51309202-125
Series
Honeywell TDC/TPS / UCN
Input Type
Low-level analog (mV / sensor signals)
Channel Density
Multi-channel (system dependent)
Signal Range
Millivolt-level, thermocouple, RTD inputs
Isolation
Channel/system isolation (architecture dependent)
Communication
UCN backplane system integration
Power Supply
System supplied (rack-based)
Operating Temperature
Industrial standard (-20°C to +60°C typical)
Mounting Type
Rack / chassis module
Dimensions
114 × 305 × 44 mm
Weight
0.75 kg
Recommended Related Models
Model
Product Name
MU-TAMR03
Honeywell Low-Level Analog Multiplexer Module
MU-TAMT03
Honeywell Analog Input FTA Module
MU-TAIH03
Honeywell Analog Input Processor Module
CC-TAIX51
Honeywell Analog Input Module (Experion Series)
Popular Related Models
Model
Product Name
CC-TAOX51
Honeywell Analog Output Module
CC-TAIX11
Honeywell Analog Input Module
2MLI-A21C
Honeywell Digital Input Module
2MLR-E08P
Honeywell PLC Docking Station
Applications
• Low-level analog signal acquisition in Honeywell DCS and UCN-based process control systems
• Industrial temperature, millivolt, and sensor signal conditioning in oil & gas facilities
• Refinery and petrochemical plant instrumentation data collection systems
• Power generation monitoring systems for precision analog measurement loops
• Chemical processing plants requiring high-sensitivity signal processing
• Upgrading or maintaining legacy Honeywell TDC/TPS distributed control architectures
• Multi-channel data acquisition in critical process automation environments
Key Advantages
• High-sensitivity design optimized for low-level millivolt analog signal input
• Stable signal conditioning for weak sensor outputs such as thermocouples and RTDs
• Deep integration with Honeywell UCN-based control system architectures
• High channel density improves I/O efficiency in large-scale control systems
• Built-in isolation improves noise immunity in electrically harsh environments
• Reliable long-term operation for continuous process industries
• Supports legacy system continuity, reducing migration and upgrade costs
Technical FAQs
1. What is the main function of MU-TAIL03?
It is a low-level analog input module used to collect and condition weak analog signals in Honeywell control systems.
2. What type of signals does it handle?
It is designed for low-level signals such as millivolt inputs, RTD, and thermocouple signals depending on configuration.
3. Which systems is it compatible with?
It is typically used in Honeywell UCN-based distributed control systems such as TDC/TPS architectures.
4. Is it a standalone module?
No, it operates as part of a larger Honeywell DCS system.
5. How many input channels does it support?
It generally supports multi-channel analog input processing (configuration dependent, commonly high-density I/O).
6. Does it provide signal isolation?
Yes, it includes isolation to improve signal integrity and reduce noise interference.
7. Can it measure standard 4–20 mA signals?
It is primarily optimized for low-level analog signals; current-loop support depends on system configuration.
8. Is it still used in modern systems?
It is mainly used in legacy Honeywell installations and retrofit environments.
9. Does it require calibration?
Calibration is handled at the system level rather than on the module itself.
10. Can it be replaced easily?
Yes, it is modular and can be replaced within compatible rack systems.
